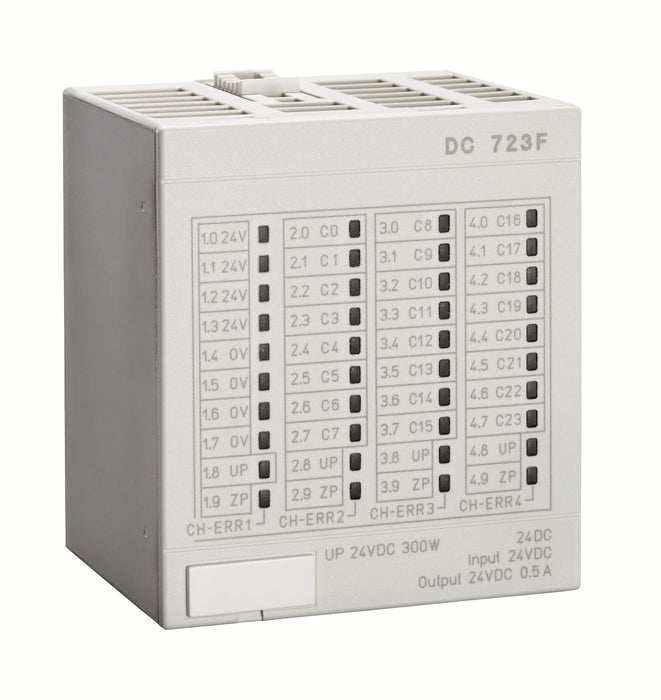

DC 723F Digital Input/Output Module The digital input/output module DC 723F has 24 channels with the following features:One 24 V DC 0.5 A sensor power supply with short-circuit and overload protection. 24 digital inputs/outputs 24 V DC in three groups, each of which can be used as an input, as a transistor output with short-circuit and overload protection with 0.5 A rated current or as a re-readable output (combined input/output) and can be addressed accordingly.The inputs and outputs are electrically isolated from the other electronic circuitry of the module. There is no potential separation between the channels.This I/O module can be used as PROFIBUS remote I/O.

Datasheet

• Model: 3BDH000373R0005
• Brand: ABB
• Contact Us: +91 96993 71392
• Dimensions : 76 mm   X  54 mm  X 68 mm
• Weight : 0.15
