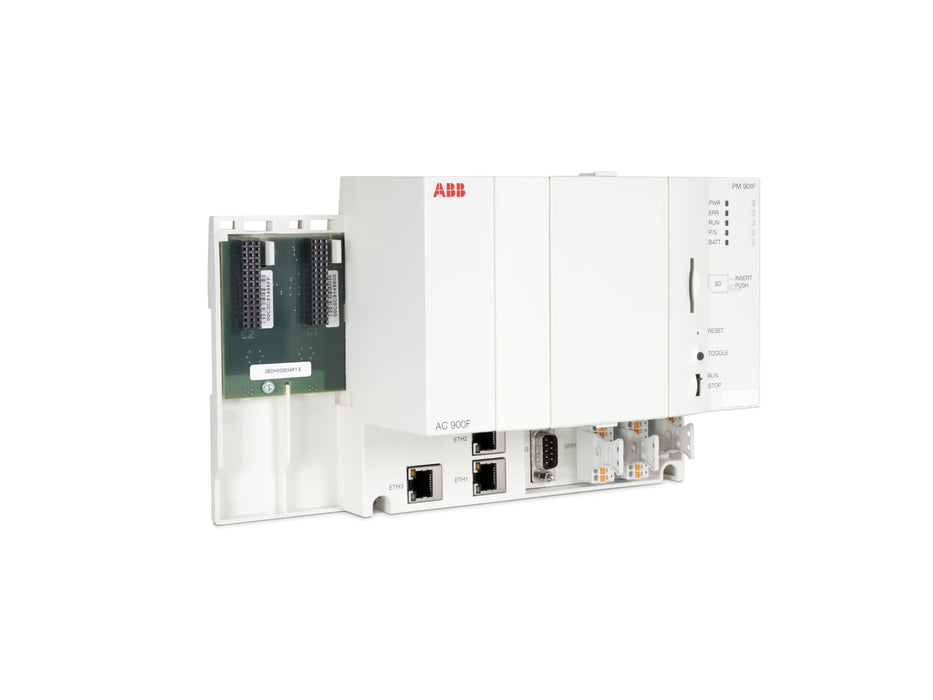

PM 901F CPU Module This CPU module is the lite base unit of the Freelance AC 900F controller family and has 3 MB battery buffered SRAM. It is good enough for around 400 IOs, depending on the application. 3 Ethernet interfaces, 400 MHz CPU clock, 11 MB Controller Memory, 3 MB battery buffered SRAM, 8 MB DRAM. 2 slots for assembling Communication Interface Modules. It comes without operating system. The operating system has to be loaded during software installation. Needs external 24 VDC power supply. Software version see instruction leaflet 2PAA120973-003 Display Unit TD 951F and Battery TA 951F are not included.

Datasheet

• Model: 3BDH001001R0002
• Brand: ABB
• Contact Us: +91 96993 71392
• Dimensions : 95 mm   X  152 mm  X 227 mm
• Weight : 0.1 kg
• Email: sales@elationind.com
• Worldwide Shipping Available
