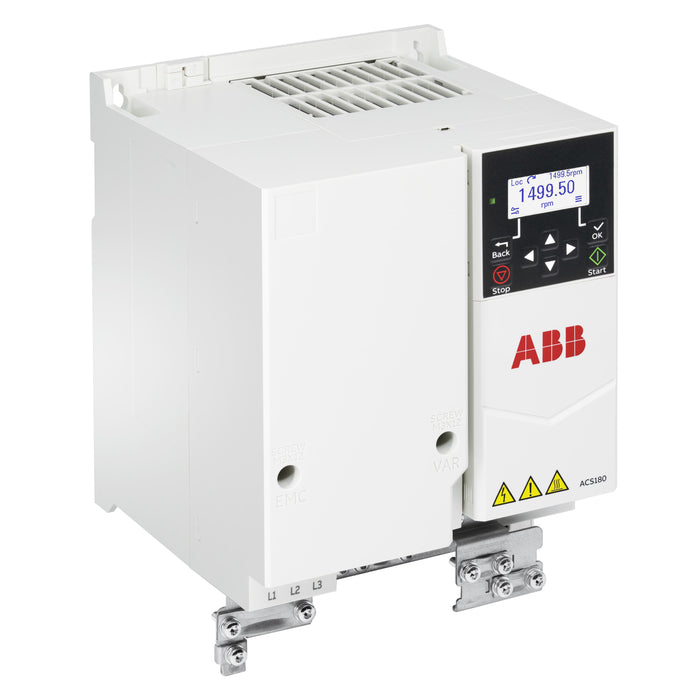

LV AC machinery drive module, IEC: Pn 15 kW, 32.0 A, 400 V, UL: Pld 20 Hp, 27.0 A, 460 V (ACS180-04N-033A-4)

The ACS180 is a compact, robust, and adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers. This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB’s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.

Datasheet

• Model: ACS180-04N-033A-4
• Part Number: 3AXD50000874170
• Brand: ABB
• Contact Us: +91 89832 82508
• Email: sales@elationind.com
• Dimensions(WxHxD): 250 mm x 273 mm x 248 mm mm
• Weight : 3.3 kg
• Unit of Measure : Carton
• Country Of Origin : Finland
• Frame Size: R3
• Mounting Type: Module
• Nema Type: Open Type
• Input Voltage: 380 ... 480 V
• Frequency: 47 ... 63 Hz
• Phases: 3-phase
• Output Current: 27.0 A
• Output Power: 20 Hp
• Standby Loss: 23 W
• Sound Level: 66 dB(A)
• Temperature: Maximum 40 °C
• Humidity: 5 ... 95
• Altitude: 2000 m
• Analog Inputs: 2
• Analog Outputs: 1
• Digital IO: 4 / 2
• Hardware Interfaces: Industrial Ethernet 0
• Communication Protocol: MODBUS
