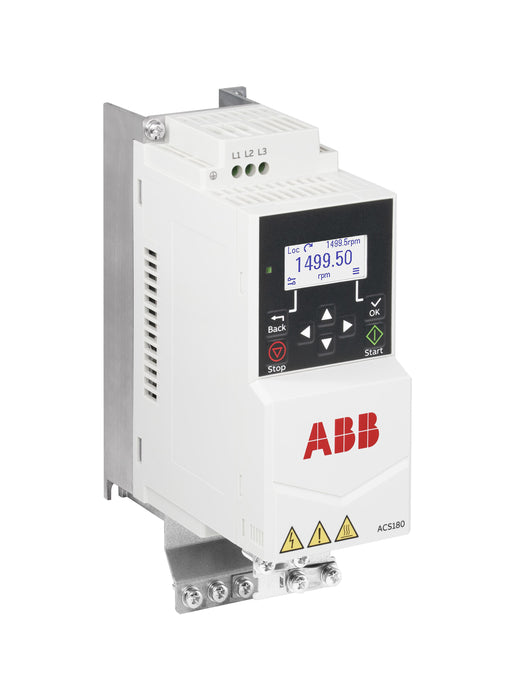

LV AC machinery drive module, IEC: Pn 0.37 kW, 2.4 A, 230 V, UL: Pld 0.5 Hp, 2.4 A, 208 V (ACS180-04S-02A4-2)

The ACS180 is a compact and robust adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers. This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB’s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.

Datasheet

• Model: ACS180-04S-02A4-2
• Part Number: 3AXD50000827374
• Brand: ABB
• Contact Us: +91 89832 82508
• Email: sales@elationind.com
• Dimensions(WxHxD): 220 mm x 115 mm x 225 mm mm
• Weight : 0.92 kg
• Unit of Measure : Carton
• Country Of Origin : Viet Nam
• Frame Size: R0
• Mounting Type: Module
• Nema Type: Open Type
• Input Voltage: 200 ... 240 V
• Frequency: 47 ... 63 Hz
• Phases: 3-phase
• Output Current: - A
• Output Power: 0.5 Hp
• Standby Loss: 7 W
• Sound Level:
• Temperature: Maximum 40 °C
• Humidity: 5 ... 95
• Altitude: 2000 m
• Analog Inputs: 2
• Analog Outputs: 1
• Digital IO: 4 / 2
• Hardware Interfaces: Industrial Ethernet 0
• Communication Protocol: MODBUS
