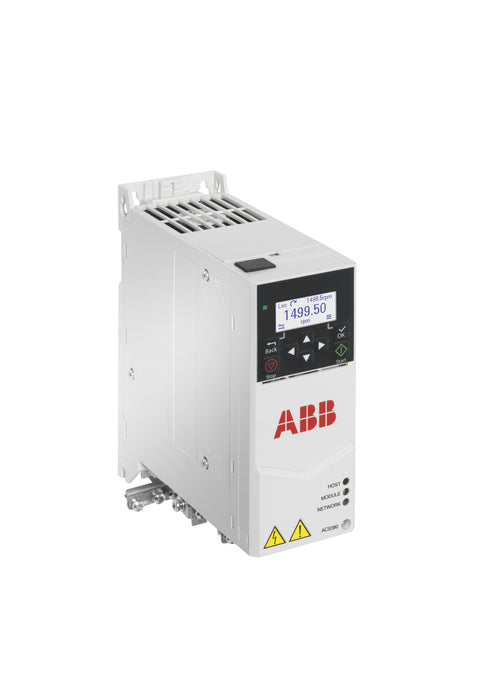

ABB ACS380-040S-04A8-2 Drive Module 3AXD50000161874
LV AC machinery drive module, IEC: Pn 0.75 kW, 4.8 A, 230 V, UL: Pld 1 Hp, 4.6 A, 208 V (ACS380-040S-04A8-2)
The ACS380 machinery drive comes in several variants ensuring seamless integration into machines and connecting perfectly to automation systems. It’s a great fit for industries such as food and beverage, material handling and textile. Typical applications include mixers, conveyors, EOT and tower cranes, extruders and textile machinery. With the integrated functional safety features, the ACS380 drive can be also part of the machine’s safety system via PROFIsafe over PROFINET, ensuring the motor is safely stopped when required. In addition, the drive’s software can be easily customized with adaptive programming to match any specific application requirements.
- Model: ACS380-040S-04A8-2
- Part Number: 3AXD50000161874
- Brand: ABB
- Contact Us: +91 89832 82508
- Email: sales@elationind.com
- Dimensions(WxHxD): 148 mm x 273 mm x 282 mm mm
- Weight : 1.40 kg
- Unit of Measure : Carton
- Country Of Origin : China
- Frame Size: R1
- Mounting Type: Module
- Nema Type: Open Type
- Input Voltage: 200 ... 240 V
- Frequency: 47.5 ... 63 Hz
- Phases: 3-phase
- Output Current: 4.6 A
- Output Power: 1 Hp
- Standby Loss: 14 W
- Sound Level: 63.10 dB(A)
- Temperature: Maximum 50 °C
- Humidity: 5 ... 95
- Altitude: 1000 m
- Analog Inputs: 2
- Analog Outputs: 1
- Digital IO: 5 / 2
- Hardware Interfaces: Industrial Ethernet 0
- Communication Protocol: MODBUS
- Worldwide Shipping Available
