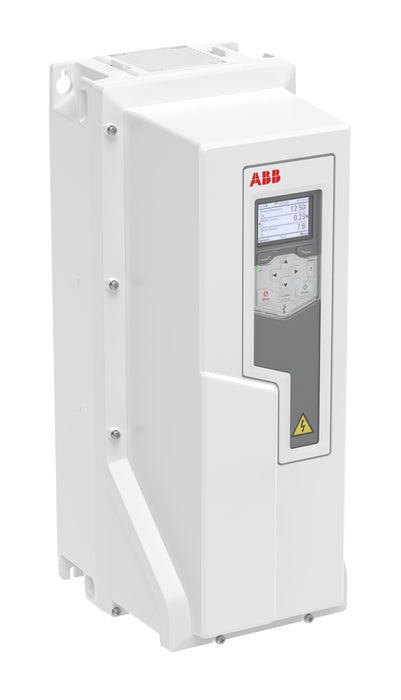

ABB ACS580-01-018A-4+B063 Drive Module 3AXD50001003159
LV AC industrial wall-mounted single drive, IEC: Pn 7.5 kW, 17 A, 400 V, UL: Pld 10 Hp, 14 A, 500 V (ACS580-01-018A-4+B063)
Designed for harsh locations, the ACS580-01 Type 4X / IP66 drive can withstand unfriendly environments with ease. The drive is resistant to various weather conditions from the snows of winter to the heat of summer. Indoors, it is resistant to water spray, dirt and chemicals and is NSF 169 certified for food splash zones. This drive is ideal for food and beverage, agriculture, livestock applications and for coastal areas. Versatile and straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance, while rugged and robust design makes it a good fit for various environments. With the ACS580 drives you can easily take full control of your processes to comprehensively manage your plant.
- Model: ACS580-01-018A-4+B063
- Part Number: 3AXD50001003159
- Brand: ABB
- Contact Us: +91 89832 82508
- Email: sales@elationind.com
- Dimensions(WxHxD): 341 mm x 777 mm x 375 mm mm
- Weight : 15.50 kg
- Unit of Measure : Carton
- Country Of Origin : Finland
- Frame Size: R2
- Mounting Type: Wall-mounted
- Nema Type: Type4X
- Input Voltage: 380 ... 415 V
- Frequency: 47.5 ... 63 Hz
- Phases: 3-phase
- Output Current: 14 A
- Output Power: 10 Hp
- Standby Loss: 15 W
- Sound Level: 64 dB(A)
- Temperature: Maximum 40 °C
- Humidity:
- Altitude: 1000 m
- Analog Inputs: 2
- Analog Outputs: 2
- Digital IO: 6 / 3
- Hardware Interfaces: Industrial Ethernet 0
- Communication Protocol: CAN
