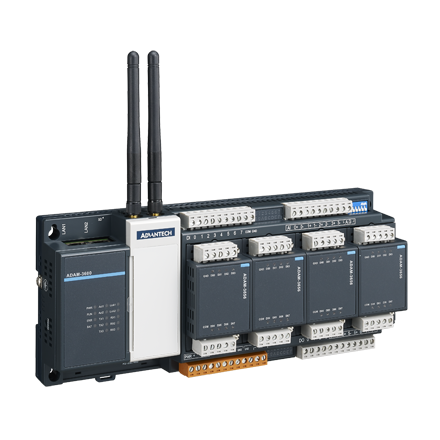

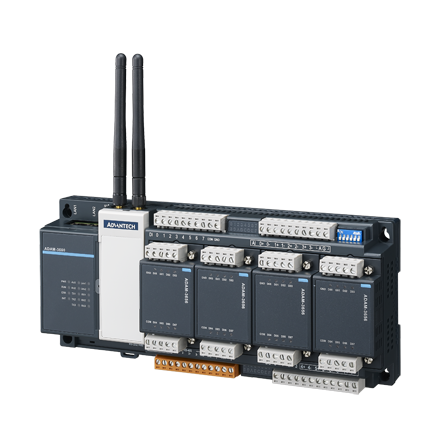

8AI / 8DI / 4DO / 4-Slot Expansion Wireless Intelligent RTU

Domain Focused Onboard IO -8AI / 8DI / 4DOHigh I/O Flexibility with 4-slot I/O ExpansionModbus & DNP3 ProtocolIEC 61131-3&C Programming LanguageOperation Temperature -40~70°CMultiple wireless options for Zigbee/ Wi-Fi/ 3G/ 4G/ GPRSHigh Performance CPU Cortex A8 600MHzLow Power DDR3L 256MB RAMEmbedded Real-time Linux Kernel

Analog Input - Channels: 8 | Analog Input - Input Range: ±10 V, ±2.5 V, 0~20 mA, 4~20 mA | Analog Input - Isolation Protection: 2,000 VDC | Analog Input - lnput Type: V, mA | Analog Input - Resolution(Bits): 16-bit | Digital Input - Channels: 8 | Digital Input - Digital Filter: 3 ms | Digital Input - Input Voltage: Wet Contact Logic Level 0: 0~+5 V Logic Level 1: +11~30V | Digital Input - Isolation Protection: 2,000 VDC | Digital Output - Channels: 4 | Digital Output - Isolation Protection: 2,000 VDC | Digital Output - Voltage Rating: 8~30 VDC | Environment - Isolation Voltage: 2,000 VDC | Environment - Operating Temperature: -40~70 °C (-40~158 °F) | Environment - Relative Humidity: 5~95% RH (non-condensing) | Environment - Storage Temperature: -40~85 °C (-40~185 °F) | Ethernet - Speed: 10/100 Mbps | Expansion Function - Interface: 1 x Full-size mini PCIe 2.0 | Expansion Function - SIM card slot: Nano SIM card | General - Protocol: IEC61131-3&C | Hardware - Certification: CE, FCC class A | Hardware - CPU: Cortex-A8 AM3352 | Hardware - Expansion: 1 x Full-size mPCIe Slot, 1 x Half-size mPCIe Slot | Hardware - I/O: 1 x RS232/485, 2 x RS485, 1 x USB 2.0, 2 x LAN,1 x VGA | Hardware - LAN: 2 x 10/100 Mbps | Hardware - LED Indicators: PWR, RUN / ERROR,TX1, RX1, TX2, RX2, I/O | Hardware - Memory: 256MB, Battery Backup RAM 32K | Hardware - OS Support: Linux | Hardware - Power Consumption: 5 W @ 24 VDC | Hardware - Power Input: 10~30 VDC | Hardware - Storage: 1GB MicroSD card, SD card slot (optional) | Hardware - Video Port: VGA | I/O Interface - Displays: 1 x VGA | I/O Interface - Expansion: 1 x Full-size mPCIe Slot, 1 x Half-size mPCIe Slot | I/O Interface - Power Connector: 1 x 12-Pin Terminal Block | I/O Interface - Serial Ports: 1 x RS-232/485 (DB9), 2 x RS-485 (Terminal Block) | I/O Interface - USB Ports: 1 x USB 2.0 | Isolated Digital Input - Channels: 8 | Serial Communication - Data Signals: RS-232: TxD, RxD, GND RS-485: Data+, Data- | Wireless Communication - Standard (Technology): WIFI, LTE | Wireless Communication - Standard(Technology): WIFI, LTE

• Model: ADAM-3600-C2GL1A1E
