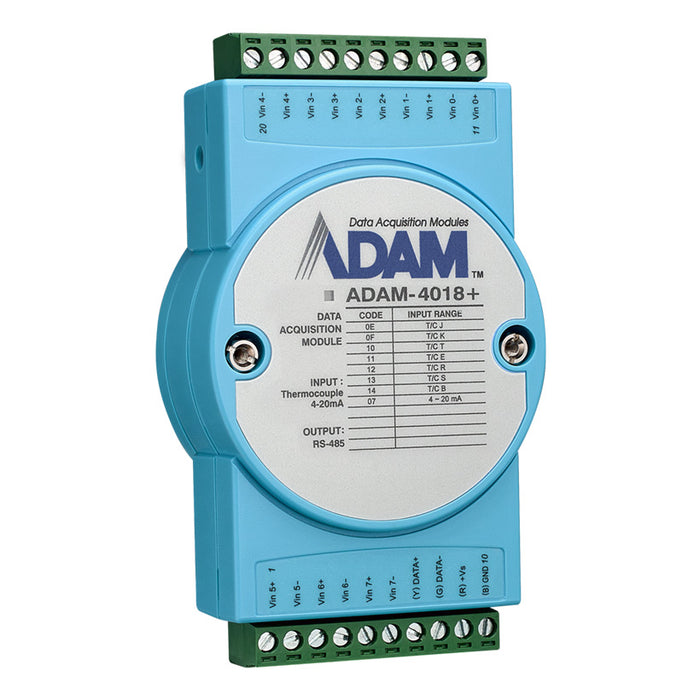

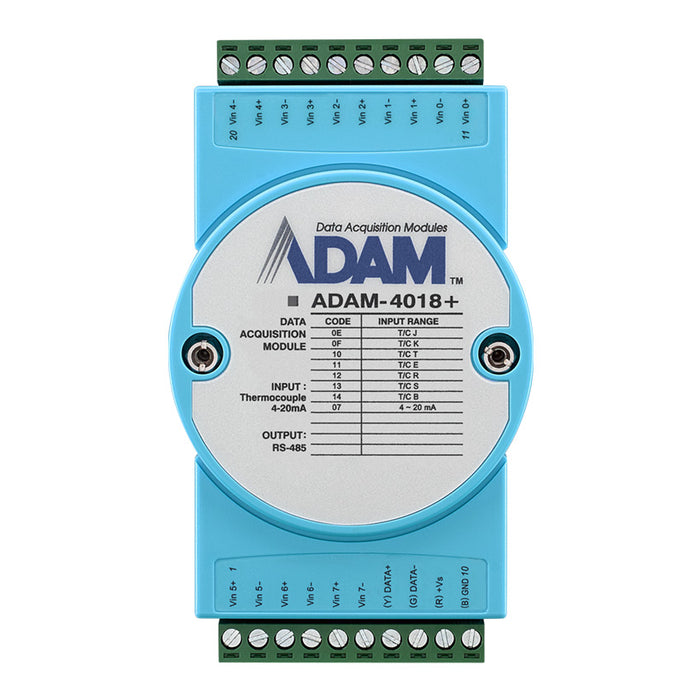

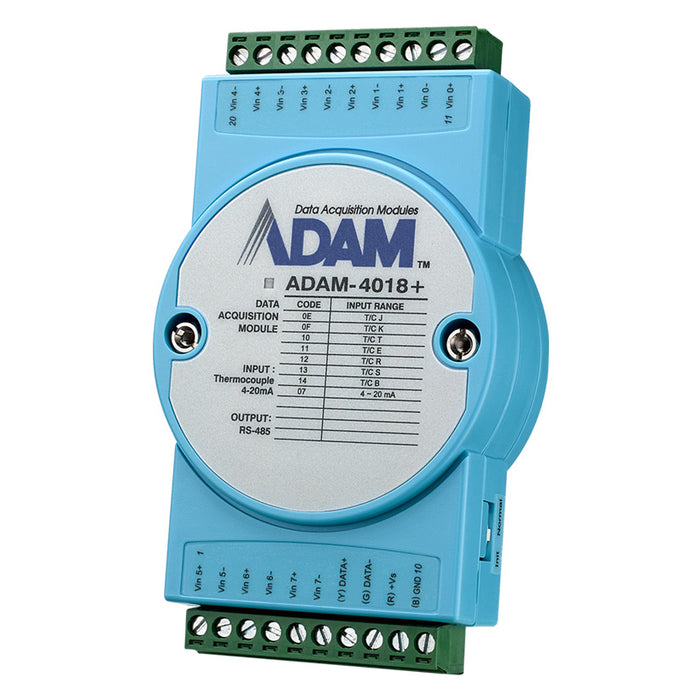

8Thermocouple Modbus RS-485 Remote I/O

8ch thermocouple(can be set to current)Protocols:Modbus RTU,ASCIIWatchdog timer to recover the system3000VDC isolation protectionWiring burned-out detection function

Analog Input - Burn-out Detection: Yes | Communications - Interface: RS-485 | Environment - Isolation Voltage: 3,000 VDC | Environment - Operating Temperature: -10~70 °C (14~158 °F) | General - Connectors: 2 x 10-pin plug-in screw terminal | General - Protocol: ASCII command, Modbus/RTU | Hardware - Certification: CE, FCC | Power Requirements - Input Voltage: 10~30 VDC | Thermocouple Input - Channels: 8 | Thermocouple Input - Input Type: mA, T/C: J, K, T, E, R, S, B type | Thermocouple Input - Resolution: 16-bit | Thermocouple Input - Sample Range: 10 S/s (sum) | Thermocouple Input - Temperature Range: Type J (0~760° C), Type K (0~1370° C), Type T (-100~400° C), Type E (0~1000° C), Type R (500~1750° C), Type S (500~1750° C), Type B (500~1800° C) | Thermocouple Input - Voltage Range: ±20 mA, 4~20 mA

• Model: ADAM-4018+-F
