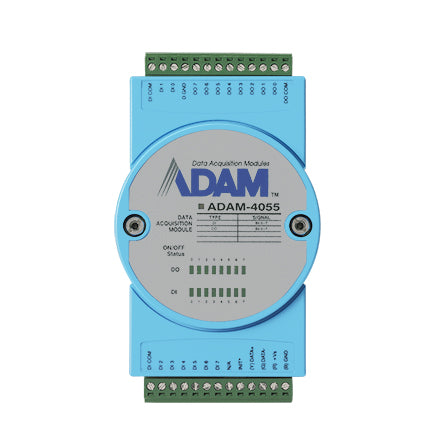

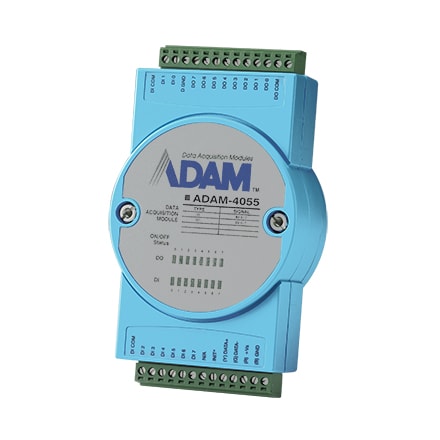

8DI/8DO Modbus RS-485 Remote I/O

8ch digital input/8ch digital outputProtocols:Modbus RTU,ASCIIWatchdog timer to recover the system2500VDC isolation protection

Communications - Interface: RS-485 | Environment - Isolation Voltage: 2,500 VDC | Environment - Operating Temperature: -10~70 °C (14~158 °F) | General - Connectors: 2 x 13-pin plug-in screw terminal | General - Protocol: ASCII command, Modbus/RTU | Hardware - Certification: CE, FCC | Isolated Digital Input - Channels: 8 | Isolated Digital Input - Input Voltage: Dry Contact Logic level 1: close to DGND Logic level 0: open Wet Contact Logic level 1: 10~50 VDC Logic level 0: 0~3 VDC | Isolated Digital Output - Channels: 8 | Isolated Digital Output - Output Type: Sink | Isolated Digital Output - Output Voltage: 0~40 VDC | Isolated Digital Output - Sink Current: 200 mA max./channel | Power Requirements - Input Voltage: 10~30 VDC

• Model: ADAM-4055-C
