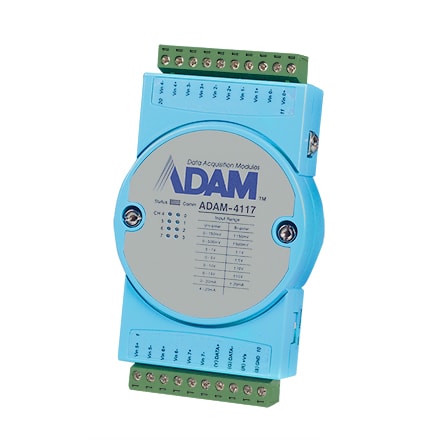

8AI Robust Modbus RS-485 Remote I/O

8ch analog input(voltage or current)Operation temperature:-40~85°C,Power input:10VDC~48VDCNoise protection: 4kV surge(power),4kV EFT,8 kV ESD protectionInterface: RS-485/USB3000VDC isolation protectionLED indicator to monitor I/O status

Analog Input - Channels: 8 | Analog Input - Input Range: ±15 V, ±10 V, ±5 V, ±1V, ±0.5 V, ±0.15 V, 0~15 V, 0~10 V, , 0~5 V, 0~1 V, 0~0.5 V, 0~0.15 V, ±20 mA, 4~20 mA, 0~20 mA | Analog Input - lnput Type: V, mV, mA | Analog Input - Resolution(Bits): 16-bit | Analog Input - Sampling Rates(S/s): 100 S/s (sum) | Communications - Interface: RS-485, Micro USB | Environment - Isolation Voltage: 3,000 VDC | Environment - Operating Temperature: -40~85 °C (-40~185 °F) | General - Connectors: 2 x 10-pin plug-in screw terminal | General - Protocol: ASCII command, Modbus/RTU | Hardware - Certification: CE, FCC | Power Requirements - Input Voltage: 10~48 VDC

• Model: ADAM-4117-C
