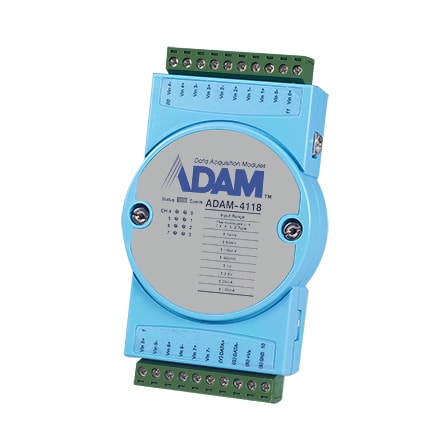

8Thermocouple Robust Modbus RS-485 Remote I/O

8ch thermocouple(can be set to voltage or current)Operation temperature:-40~85°C,Power input:10VDC~48VDCNoise protection: 4kV surge(power),4kV EFT,8 kV ESD protectionInterface: RS-485/USB3000VDC isolation protectionLED indicator to monitor I/O status

Analog Input - Burn-out Detection: Yes | Analog Input - Input Range: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, 0~15 mV, 0~50 mV, 0~100 mV, 0~500 mV, 0~1 V, 0~2.5 V | Communications - Interface: RS-485, Micro USB | Environment - Isolation Voltage: 3,000 VDC | Environment - Operating Temperature: -40~85 °C (-40~185 °F) | General - Connectors: 2 x 10-pin plug-in screw terminal | General - Protocol: ASCII command, Modbus/RTU | Hardware - Certification: CE, FCC | Power Requirements - Input Voltage: 10~48 VDC | Thermocouple Input - Channels: 8 | Thermocouple Input - Input Type: mA, mV, V, T/C: J, K, T, E, R, S, B, N type | Thermocouple Input - Resolution: 16-bit | Thermocouple Input - Sample Range: 100 S/s (sum) | Thermocouple Input - Temperature Range: Type J (0~760° C), Type K (0~1370° C), Type T (-100~400° C), Type E (0~1000° C), Type R (500~1750° C), Type S (500~1750° C), Type B (500~1800° C), Type N (-200~1300° C)

• Model: ADAM-4118-C
