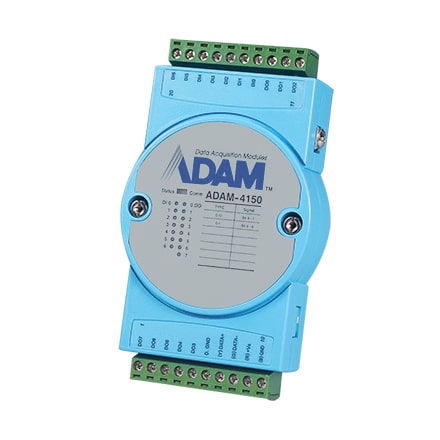

7DI/8DO Robust Modbus RS-485 Remote I/O

7ch digital input(counter)/8ch digital output(pulse output)Operation temperature:-40~85°C,Power input:10VDC~48VDCNoise protection: 4kV surge(power),4kV EFT,8 kV ESD protectionInterface: RS-485/USB3000VDC isolation protectionLED indicator to monitor I/O status

Communications - Interface: RS-485, Micro USB | Counter/Encoder Input - Channels: 7 | Counter/Encoder Input - Counting Range: 32-bit | Counter/Encoder Input - Max. Input Frequency: 3 kHz | Environment - Isolation Voltage: 3,000 VDC | Environment - Operating Temperature: -40~85 °C (-40~185 °F) | General - Connectors: 2 x 10-pin plug-in screw terminal | General - Protocol: ASCII command, Modbus/RTU | Hardware - Certification: CE, FCC | Isolated Digital Input - Channels: 7 | Isolated Digital Input - Input Voltage: Dry contact Logic level 0: close to GND, Logic level 1: open. Wet Contact Logic level 0: 0~3 VDC, Logic level 1: 10~30 VDC | Isolated Digital Output - Channels: 8 | Isolated Digital Output - Output Type: Sink | Isolated Digital Output - Output Voltage: 0~40 VDC | Isolated Digital Output - Sink Current: 800 mA max./channel | Power Requirements - Input Voltage: 10~48 VDC

• Model: ADAM-4150-C
