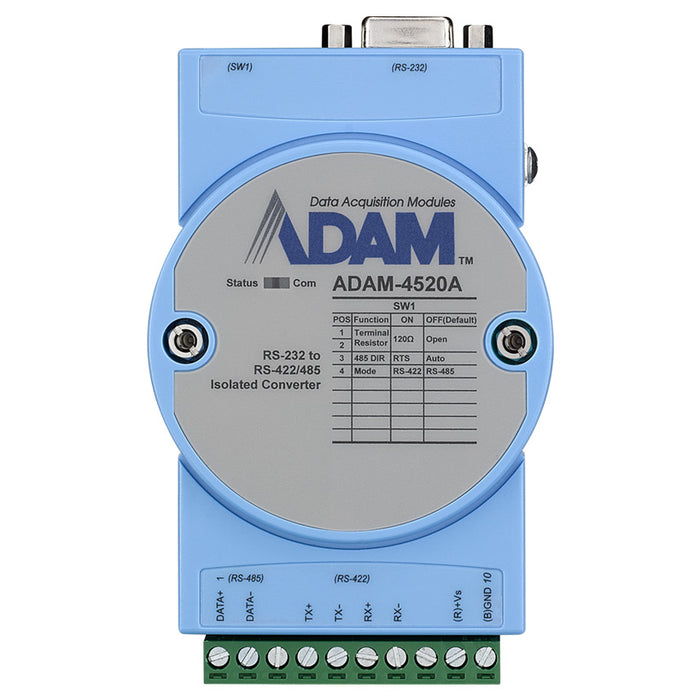

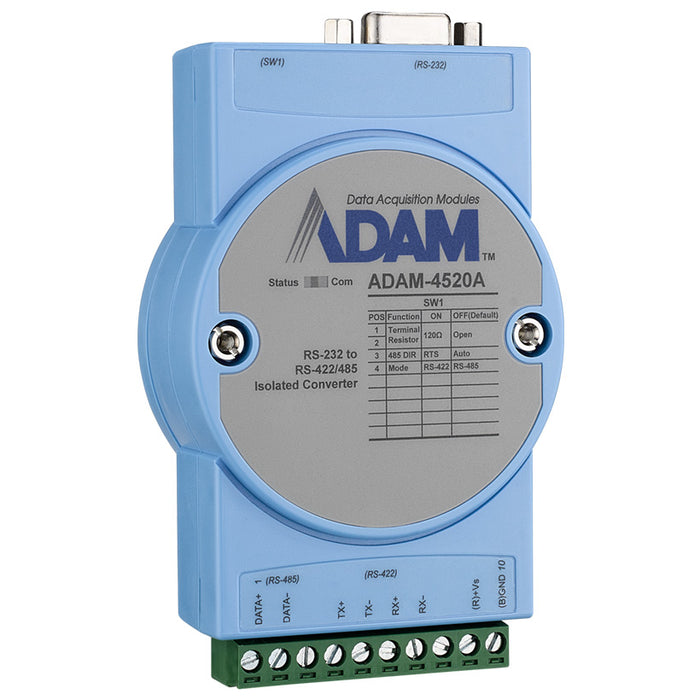

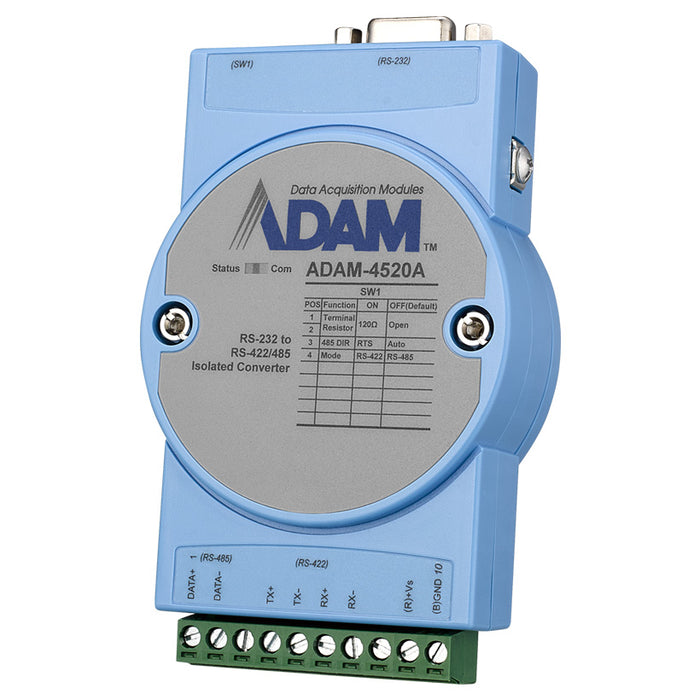

Robust RS-232 to RS-422/485 Isolated Converter

Convert RS-232 to RS-422/485 signalsExtend RS-232 data signals up to 1.?2 kmData rate: 115.2 kbps3000 VDC IsolationAuto-detection on baud rate / data formatDIP switch for RS-422 or RS-485 selectionBuild-in 120 ohm termination resistorsPower requirement +10 to +48 VDCOperating Temperature -40 ~ 85° C (-40 ~ 185° F)

Environment - Operating Temperature: -40 ~ 85°C (-40 ~ 185°F) | Environment - Temperature (Operating Range): -40 ~ 85°C (-40 ~ 185°F) | Protection - Isolation: 3,000 VDC | Serial Communication - Maximum Serial Transmission Speed: 115.2 Kbps | Serial Communication - Serial Converter: RS-232 to RS-422/485 | Serial Communication - Serial Port Connector Type: 1 x DB9 Female, 1 x Terminal Block

• Model: ADAM-4520A-A
