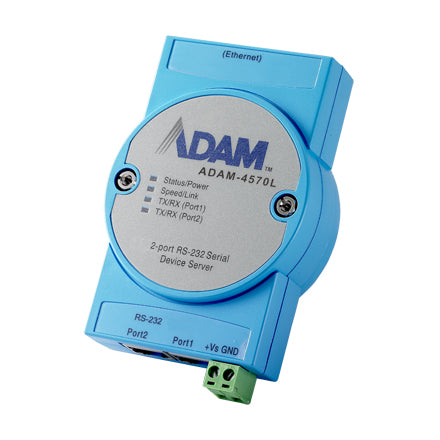

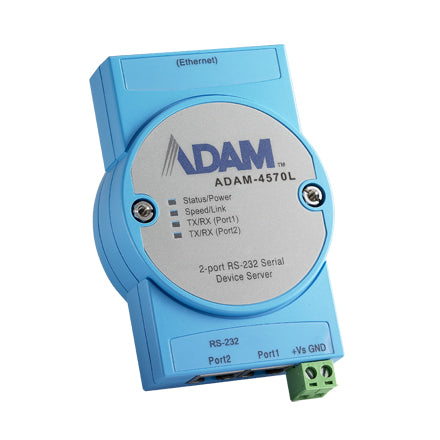

2-port RS-232 Serial Device Server

Supports RS-232 serial communicationSupports baud rate up to 921.6 kbpsProvides COM port redirection (Virtual COM) modeAllows a max. of 5 hosts to access one serial portBuilt-in 15 KV ESD protection for all serial signalsProvides 10/100 Mbps auto-sensing Ethernet portSupports auto re-connection functionSupports Windows 2000/XP/Vista driversSupports remote update firmware

Certification - EMC: CE, FCC | Certification - EMI: EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A | Certification - EMS: EN 61000-4-2 (Level 2), EN 61000-4-3 (Level 2), EN 61000-4-4 (Level 2), EN 61000-4-5 (Level 2), EN 61000-4-6 (Level 2), EN 61000-4-8 (Level 2), EN55024 | Certification - Freefall: NA | Environment - Operating Humidity: 5~95% RH | Environment - Operating Temperature: -10 ~ 60°C (14 ~ 140°F) | Environment - Storage Temperature: -20 ~ 80°C (-4 ~ 176°F) | Environment - Temperature (Max. Operating): 60°C (140°F) | Environment - Temperature (Min. Operating): -10°C (14°F) | Ethernet Communication - Ethernet Standard: IEEE 802.3 , 802.3u | Ethernet Communication - RJ-45 Port Connector Type: RJ-45 | Ethernet Communication - RJ-45 Port Number: 1 | Ethernet Communication - RJ-45 Transmission Speed: 10/100 Mbps | Mechanism - Dimensions (W x H x D): 70 x 112 x 25 mm | Mechanism - Enclosure (Plastic): Yes | Mechanism - IP Rating: IP30 | Mechanism - Mounting (DIN-rail): Yes | Mechanism - Mounting (Wall): Yes | Mechanism - Weight: 125 g | Power - Power Consumption: 2.5W | Power - Power Input (DC): 10 ~ 30 VDC | Power - Power Operating Current: 0.3A @ 12 V | Serial Communication - Baud Rate: 50 ~ 921.6 Kbps | Serial Communication - RS-232: Yes | Serial Communication - Serial Port Connector Type: RJ48 | Serial Communication - Serial Port Number: 2 | Software - Configuration: Windows utility, Web Browser | Software - Driver: Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux | Software - Operation Mode: Virtual COM, TCP/UDP server TCP/UDP client | Warranty - Warranty Period: 5 years

• Model: ADAM-4570L-DE
