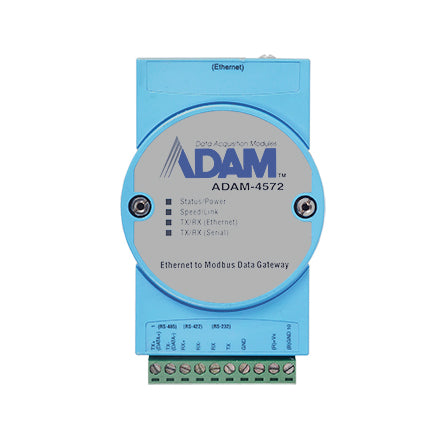

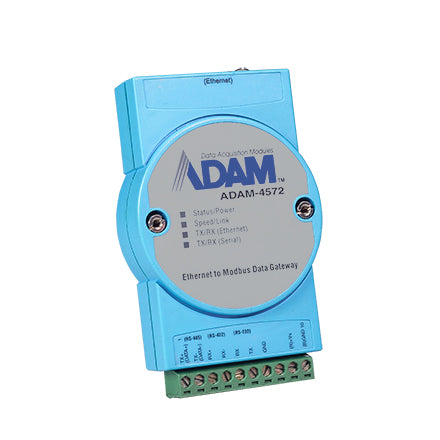

1-Port Modbus Gateway

Supports 10/100 Mbps communication speedsAllows up to 8 clients to access field data simultaneouslySupports popular HMI software with Modbus/TCP driver or OPC serverProvides auto-searching device ID Windows utilityAutomatic RS-485 data flow controlEasy mounting on DIN-rail or panelSurge protection for RS-485 and power lineSupports Modbus/ASCII, RTU Protocol to control devices

Certification - EMC: CE, FCC | Certification - EMI: EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A | Certification - EMS: EN 61000-4-2 (Level 2), EN 61000-4-3 (Level 2), EN 61000-4-4 (Level 2), EN 61000-4-5 (Level 2), EN 61000-4-6 (Level 2), EN 61000-4-8 (Level 2), EN55024 | Certification - Freefall: NA | Environment - Humidity (Operating Range): 5~95% RH | Environment - Operating Humidity: 5~95% RH | Environment - Operating Temperature: -10 ~ 60°C (14 ~ 140°F) | Environment - Relative Humidity: - | Environment - Storage Temperature: -20 ~ 80°C (-4 ~ 176°F) | Environment - Temperature (Max. Operating): - | Environment - Temperature (Min. Operating): - | Environment - Temperature (Operating Range): -10 ~ 60°C (14 ~ 140°F) | Environment - Temperature (Storage Range): -20 ~ 80°C (-4 ~ 176°F) | Ethernet Communication - Ethernet Standard: IEEE 802.3 , 802.3u | Ethernet Communication - Fiber Port Number: - | Ethernet Communication - Fiber Port Optical Mode: - | Ethernet Communication - Fiber Port Supports VDSL: - | Ethernet Communication - Fiber Transmission Distance: - | Ethernet Communication - Fiber Transmission Speed: - | Ethernet Communication - RJ-45 Port Connector Type: RJ-45 | Ethernet Communication - RJ-45 Port Number: 1 | Ethernet Communication - RJ-45 Transmission Distance: - | Ethernet Communication - RJ-45 Transmission Speed: 10/100 Mbps | Ethernet Communication - RJ-45/SFP Combo Port Number: - | Ethernet Communication - RJ-45/SFP Combo Port Speed: - | Mechanism - Dimensions (W x H x D): 70 x 112 x 25 mm | Mechanism - Enclosure (Plastic): Yes | Mechanism - IP Rating: IP30 | Mechanism - Mounting (DIN-rail): Yes | Mechanism - Mounting (Panel): - | Mechanism - Mounting (Pole Mount): - | Mechanism - Mounting (Rack Mount): - | Mechanism - Mounting (Stack): - | Mechanism - Mounting (Wall): Yes | Mechanism - Weight: 125 g | MTBF - Method: - | MTBF - Time: - | PoE Information - PoE Budget: - | PoE Information - PoE Output: - | PoE Information - PoE Port Number: - | Power - Power Consumption: 2.5W | Power - Power Input (AC): - | Power - Power Input (Battery): - | Power - Power Input (DC): 10 ~ 30 VDC | Power - Power Input (PoE): - | Power - Power Operating Current: 0.3A @ 12 V | Power - Power Operating Voltage: - | Protection - Overload Current: - | Protection - Port to Port Isolation: - | Protocol Support - BACnet: - | Protocol Support - EtherCAT: - | Protocol Support - Ethernet: Yes | Protocol Support - EtherNet/IP: - | Protocol Support - Modbus ASCII: Yes | Protocol Support - Modbus RTU: Yes | Protocol Support - Modbus TCP: Yes | Protocol Support - OPC UA: - | Protocol Support - PROFINET: - | Serial Communication - RS-232: Yes | Serial Communication - RS-422: Yes | Serial Communication - RS-485: Yes | Serial Communication - Serial Port Connector Type: Terminal block | Serial Communication - Serial Port Number: 1 | Serial Communication - Serial Transmission Speed: - | Software - Baud Rate: 50 ~ 921.6 Kbps | Software - Configuration: Windows utility, Web Browser | Software - Driver: Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux | Software - Operation Mode: Modbus RTU Client/Server, Modbus ASCII Client/Server | Warranty - Warranty Period: 5 years

• Model: ADAM-4572-CE
