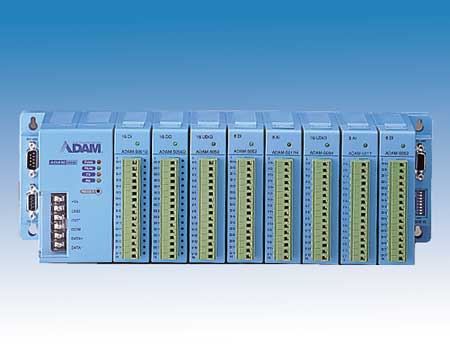

8 slot Remote I/O System with Modbus RS-485

RS-485 communication for easy installation and networking8 slots for up to 128 points data monitoring card control in one moduleSupports ADAM ASCII protocol or Modbus®/RTU protocolSupports Modbus/RTU protocol with user-defined Modbus addressExtensive software support, includes windows DLL drivers, OCX drivers, OPC server and popular HMI/SCADA software driversSeamlessly integrated with easy-to-use ADAMView data acquisition software

Environment - Operating Temperature: -10~70 °C (14~158 °F) | Environment - Storage Temperature: -25~85 °C (-13~185 °F) | General - Connectors: 1 x DB9-M/DB9-F/screw terminal for RS-485 (communication), 1 x DB9-F for RS-232 (configuration), 1 x screw terminal for power input | General - Humidity (Operating): 5~95% RH (non-condensing) | General - Humidity (Storage): 5~95% RH (non-condensing) | Hardware - Certification: CE, FCC class A | Hardware - CPU: 16-bit 80188 microprocessor | Hardware - Expansion: 8 x I/O Slot | Hardware - I/O: 1 x RS-232, 1 x RS-485 | Hardware - LED Indicators: Power, RUN, Communications | Hardware - Power Input: 10~30 VDC | Hardware - Watchdog Timer: 1.6 s | Mechanical - Dimension (W x H x D): 355 x 110 x 75 mm | Mechanical - Enclosure: PC + ABS | Mechanical - Mounting: Wall, DIN-rail

• Model: ADAM-5000E-AE
