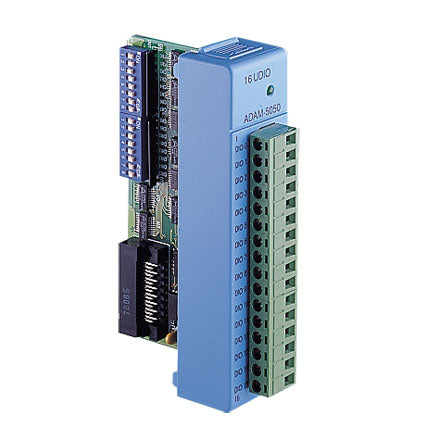

16-ch Universal Digital I/O Module

Digital input: Support Dry/Wet ContactDigital output: Open Collector to 30 V, 450 mW max. loadI/O Type: bit-wise selectable by DIP switchPower consumption: 0.?35 W (typical); 1.2 W (max)Channels: 16

Digital Input - Input Voltage: Dry Contact Logic level 0: close to GND Logic level 1: open Wet Contact Logic level 0: 2 V max. Logic level 1: 4 ~ 30 V | Digital Input and Digital Output - No. of Channels: Total 16-ch (DI/DO selectable) | General - Connectors: 1 x 16-pin plug-in screw terminal | General - Humidity (Operating): 5~95% RH (non-condensing) | General - Humidity (Storage): 5~95% RH (non-condensing) | Hardware - Certification: CE, FCC class A

• Model: ADAM-5050-A2E
• Contact Us: +91 96993 71392
• Email: sales@elationind.com
• Worldwide Shipping Available
