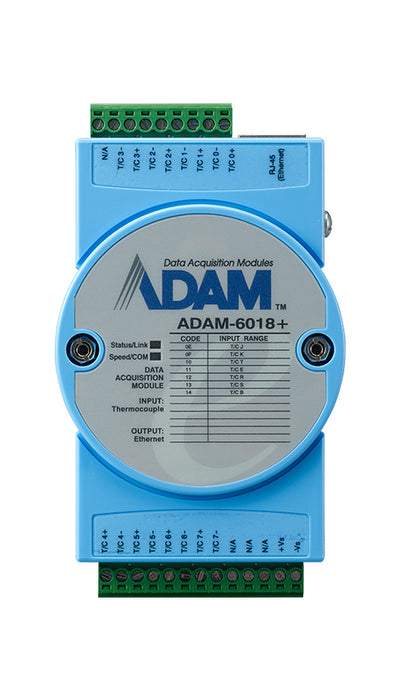

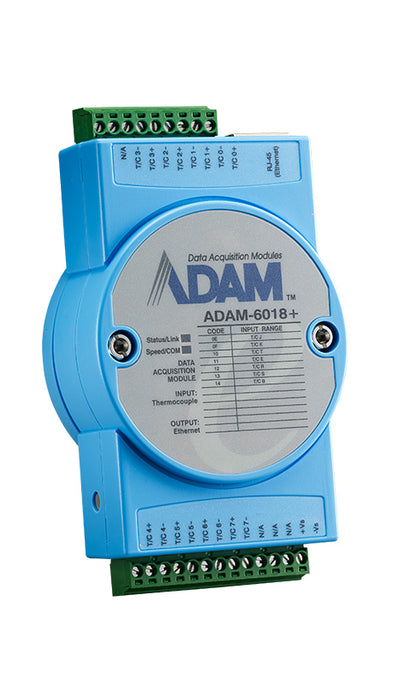

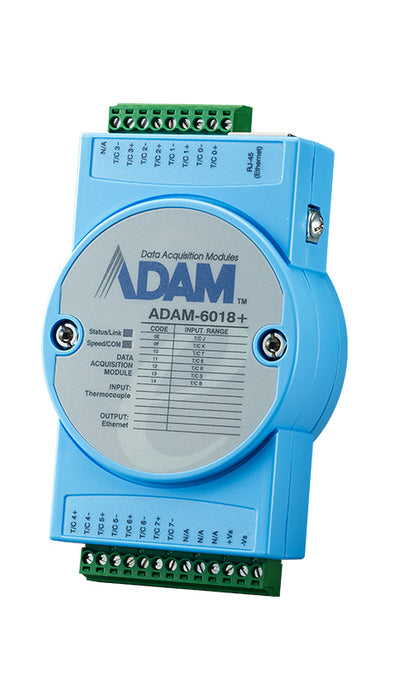

8Thermocouple IoT Modbus/SNMP/MQTT Ethernet Remote I/O

8ch thermocoupleProtocols:MQTT(TLS),SNMP,Modbus TCP,RESTful API,ASCIIGCL to perform basic logic control rulesPeer-to-Peer function to map I/O statusWatchdog timer to recover the systemBuilt-in web server

Communications - Interface: Ethernet | Environment - Isolation Voltage: 2,000 VDC | Environment - Operating Temperature: -40~70 °C (-40~158 °F) | General - Connectors: 1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal | General - Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command | Power Requirements - Input Voltage: 10~30 VDC | Thermocouple Input - Channels: 8 | Thermocouple Input - Sample Range: 10 S/s (sum) | Thermocouple Input - Temperature Range: Type J (0~760° C), Type K (0~1370° C), Type T (-100~400° C), Type E (0~1000° C), Type R (500~1750° C), Type S (500~1750° C), Type B (500~1800° C)

• Model: ADAM-6018+-D
