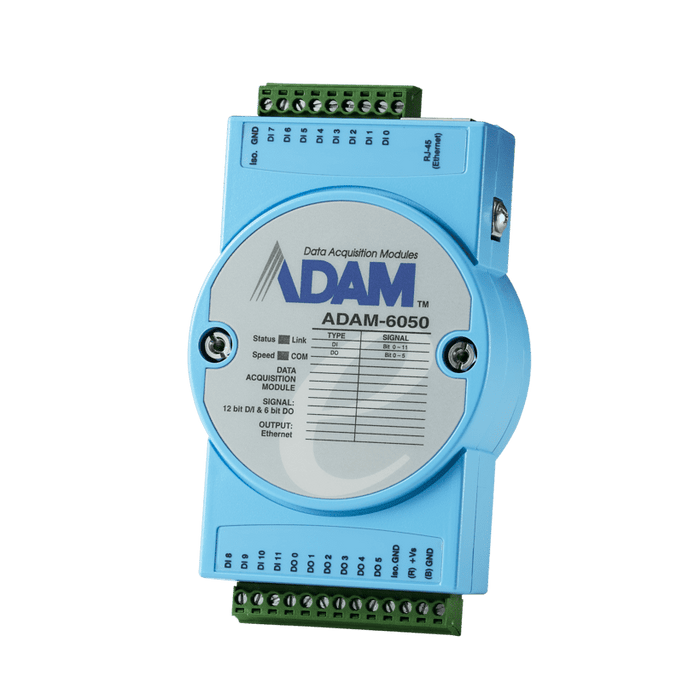

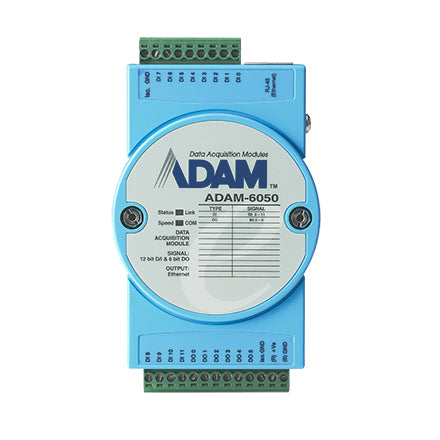

18-Ch Isolated DI/O Module

12ch digital input(counter)/6ch digital output(pulse output)Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful API,ASCIIGCL to perform basic logic control rulesPeer-to-Peer function to map I/O statusCloud access: Data update to AzureBuilt-in web serverWatchdog timer to recover the system

Communications - Interface: Ethernet | Counter/Encoder Input - Channels: 12 | Counter/Encoder Input - Max. Input Frequency: 3 kHz | Environment - Isolation Voltage: 2,000 VDC | Environment - Operating Temperature: -40~70 °C (-40~158 °F) | General - Connectors: 1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal | General - Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command | Isolated Digital Input - Channels: 12 | Isolated Digital Input - Input Voltage: Dry Contact Logic level 0: close to GND Logic level 1: open Wet Contact Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC | Isolated Digital Output - Channels: 6 | Isolated Digital Output - Output Type: Sink | Isolated Digital Output - Output Voltage: 0~30 VDC | Isolated Digital Output - Sink Current: 100 mA max./channel | Power Requirements - Input Voltage: 10~30 VDC

• Model: ADAM-6050-D1
