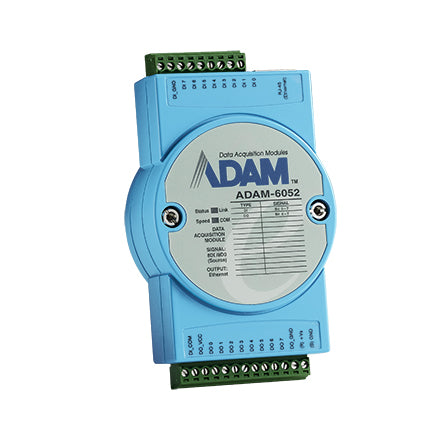

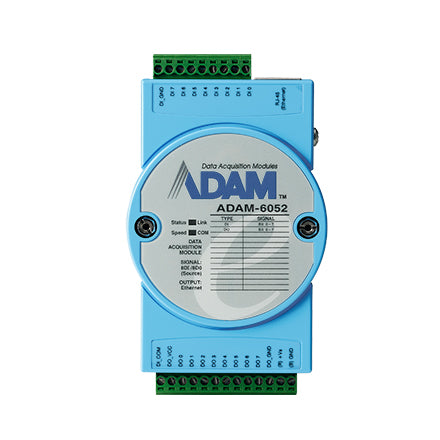

8DI/8DO(source type) IoT Modbus/SNMP/MQTT Ethernet Remote I/O

8ch digital input(counter)/8ch source type digital output(pulse output)Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful API,ASCIIGCL to perform basic logic control rulesPeer-to-Peer function to map I/O statusCloud access: Data update to AzureBuilt-in web serverWatchdog timer to recover the system

Communications - Interface: Ethernet | Counter/Encoder Input - Channels: 8 | Counter/Encoder Input - Max. Input Frequency: 3 kHz | Environment - Isolation Voltage: 2,000 VDC | Environment - Operating Temperature: -40~70 °C (-40~158 °F) | General - Connectors: 1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal | General - Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command | Isolated Digital Input - Channels: 8 | Isolated Digital Input - Input Voltage: Dry Contact Logic level 0: close to GND Logic level 1: open Wet Contact Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC | Isolated Digital Output - Channels: 8 | Isolated Digital Output - Output Type: Source | Isolated Digital Output - Output Voltage: 10~35 VDC | Isolated Digital Output - Sink Current: 1 A max./channel | Power Requirements - Input Voltage: 10~30 VDC

• Model: ADAM-6052-D
• Contact Us: +91 96993 71392
• Email: sales@elationind.com
• Worldwide Shipping Available
