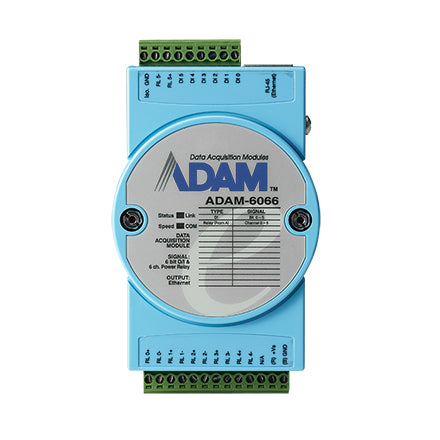

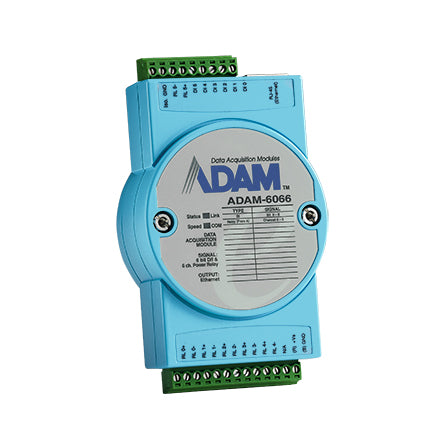

6Pwer Relay/6DI IoT Modbus/SNMP/MQTT Ethernet Remote I/O

I/O:6ch relay/6ch digital input(counter)Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful API,ASCIIGCL to perform basic logic control rulesPeer-to-Peer function to map I/O statusCloud access: Data update to AzureBuilt-in web serverWatchdog timer to recover the system

Communications - Interface: Ethernet | Counter/Encoder Input - Channels: 8 | Counter/Encoder Input - Max. Input Frequency: 3 kHz | Environment - Isolation Voltage: 2,000 VDC | Environment - Operating Temperature: -40~70 °C (-40~158 °F) | General - Connectors: 1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal | General - Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command | Isolated Digital Input - Channels: 6 | Isolated Digital Input - Input Voltage: Dry Contact Logic level 0: close to GND Logic level 1: open Wet Contact Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC | Power Requirements - Input Voltage: 10~30 VDC | Relay Output - Channels: 6 | Relay Output - Contact Rating (Resistive): 3 A @ 30 VDC, 5 A @ 250 VAC | Relay Output - Relay Type: 1 x Form A

• Model: ADAM-6066-D
• Contact Us: +91 96993 71392
• Email: sales@elationind.com
• Worldwide Shipping Available
