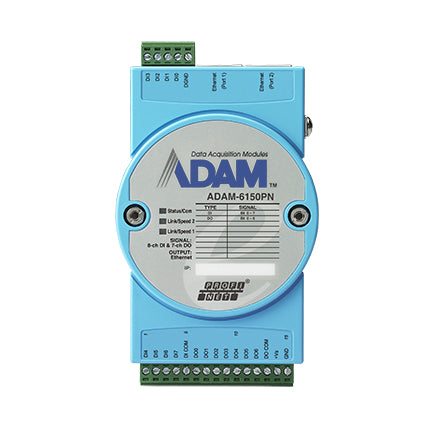

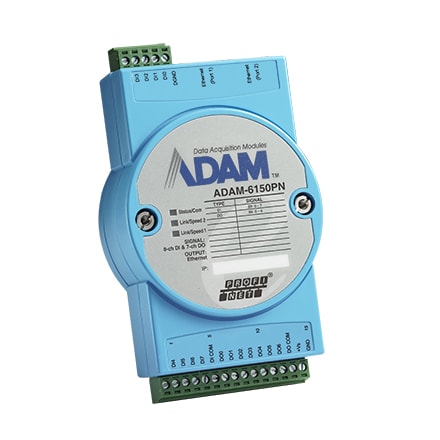

8DI/7DO PROFINET Fieldbus Remote I/O

8ch digital input/7ch digital outputProtocol : PROFINET2 x RJ-45 LAN for Daisy-chain connectivity2500VDC isolation protection

Communications - Interface: Ethernet | Environment - Isolation Voltage: 2,500 VDC | Environment - Operating Temperature: -10~70 °C (14~158 °F) | General - Connectors: 2 x RJ45, 1 x 15-pin plug-in screw terminal, 1 x 5-pin plug-in screw terminal | General - Protocol: PROFINET | Isolated Digital Input - Channels: 8 | Isolated Digital Input - Input Voltage: Dry Contact Logic level 0: open Logic level 1: close to GND Wet Contact Logic level 1: 10~30 VDC and -10~-30 VDC Logic level 0: -3~3 VDC | Isolated Digital Output - Channels: 7 | Isolated Digital Output - Output Type: Sink | Isolated Digital Output - Output Voltage: 8~35 VDC | Isolated Digital Output - Sink Current: 100 mA max./channel | Power Requirements - Input Voltage: 10~30 VDC

• Model: ADAM-6150PN-AE
