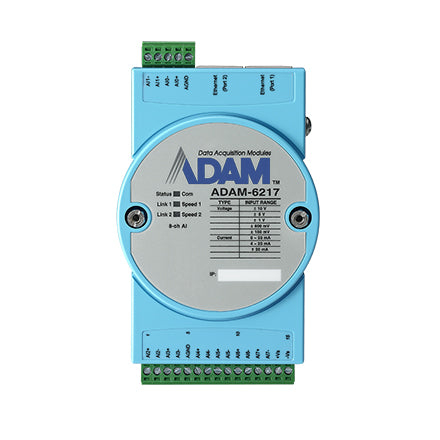

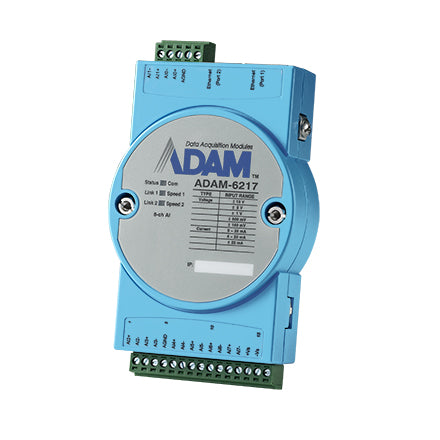

8AI IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O

8ch analog input(voltage or current)Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful,ASCIIGCL to perform basic logic control rulesCloud access: Data update to AzureAuto-bypass function to ensure daisy-chain data transmissionPeer-to-Peer function to map I/O statusBuilt-in web serverWatchdog timer to recover the system

Analog Input - Channels: 8 | Analog Input - Input Range: ±0.15V, ±0.5V , ±1V, ±5V, ±10V, ±20 mA, 0~20 mA, 4~20 mA | Analog Input - lnput Type: V, mV, mA | Analog Input - Resolution(Bits): 16-bit | Analog Input - Sampling Rates(S/s): 10 S/s (sum) | Communications - Interface: Ethernet | Environment - Isolation Voltage: 2,500 VDC | Environment - Operating Temperature: -40~70 °C (-40~158 °F) | General - Connectors: 2 x RJ45, 1 x 15-pin plug-in screw terminal, 1 x 5-pin plug-in screw terminal | General - Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command | Power Requirements - Input Voltage: 10~30 VDC

• Model: ADAM-6217-B
