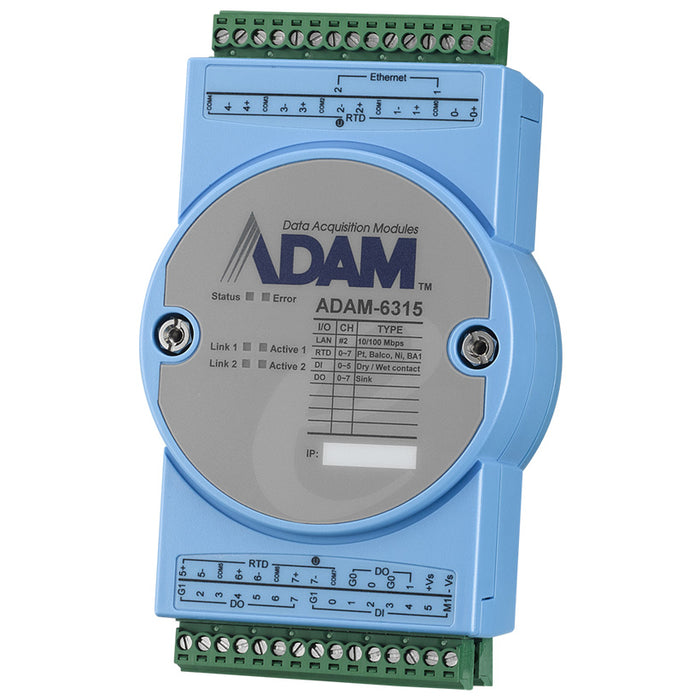

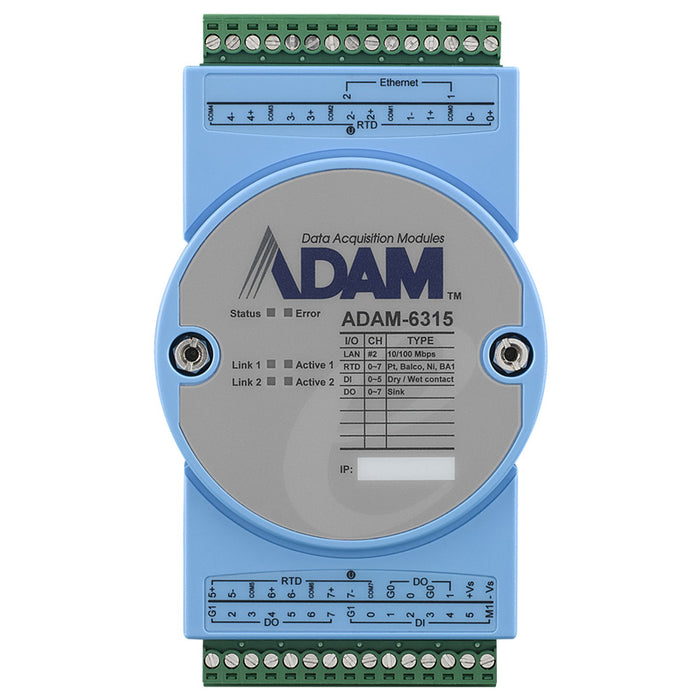

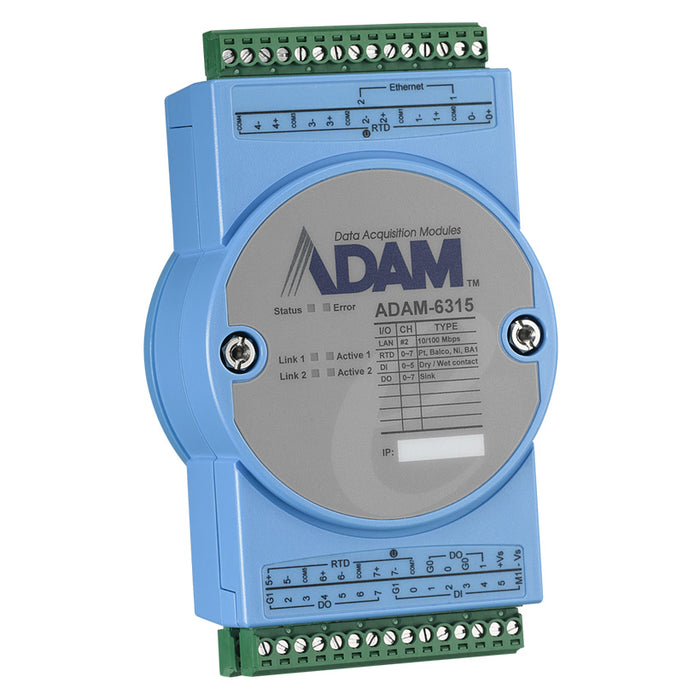

OPC UA and Security Remote I/O_RTD Module

OPC UA empowers Modbus I/O users to access the industrial IoT worldOPC UA I/O links SCADA and the cloud without the need for gateways, accelerating OT and IT convergenceHardware and software double security levels to prevent being hackedCost-effective: high I/O density and daisy-chaining solution saves cost

Counter/Encoder Input - Channels: 6 | Counter/Encoder Input - Max. Input Frequency: 3 kHz | Isolated Digital Input - Channels: 6 | Isolated Digital Input - Input Voltage: Dry Contact Logic level 1: close to GND Logic level 0: open Wet Contact Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC | Isolated Digital Input - Isolation Protection: 2,500 VDC | Isolated Digital Output - Channels: 8 | Isolated Digital Output - Isolation Protection: 2,500 VDC | Isolated Digital Output - Output Type: Sink | Isolated Digital Output - Sink Current: 100 mA max./channel | Power Supply - Input Voltage: 10~30 VDC | RTD Input - Channels: 8 | RTD Input - Input Type: Pt 100, Pt 1000, Balco 500, Ni 508, Ni 518 | RTD Input - Resolution: 16-bit | RTD Input - Sample Range: 1K S/s (sum)

• Model: ADAM-6315-A1
