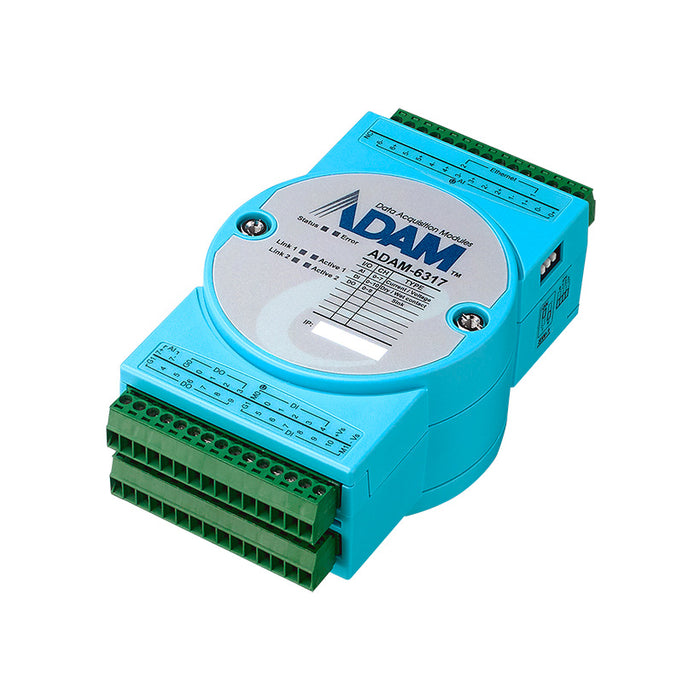

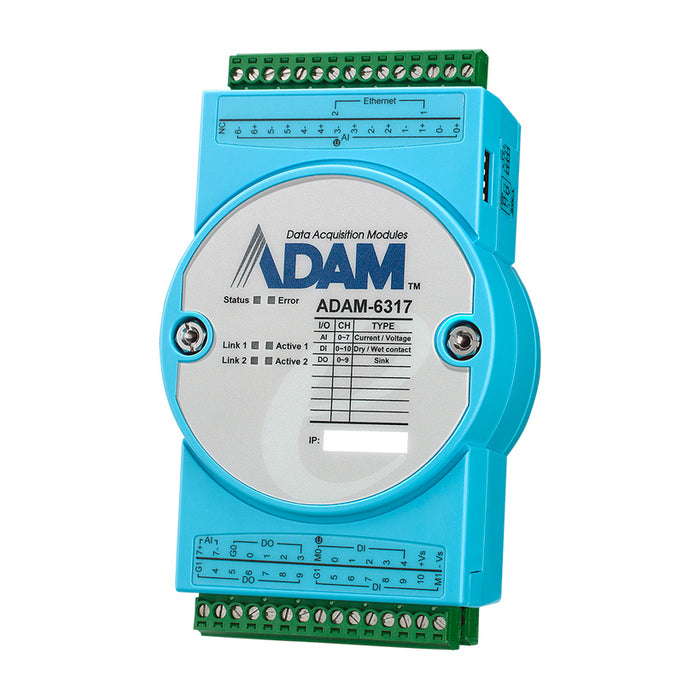

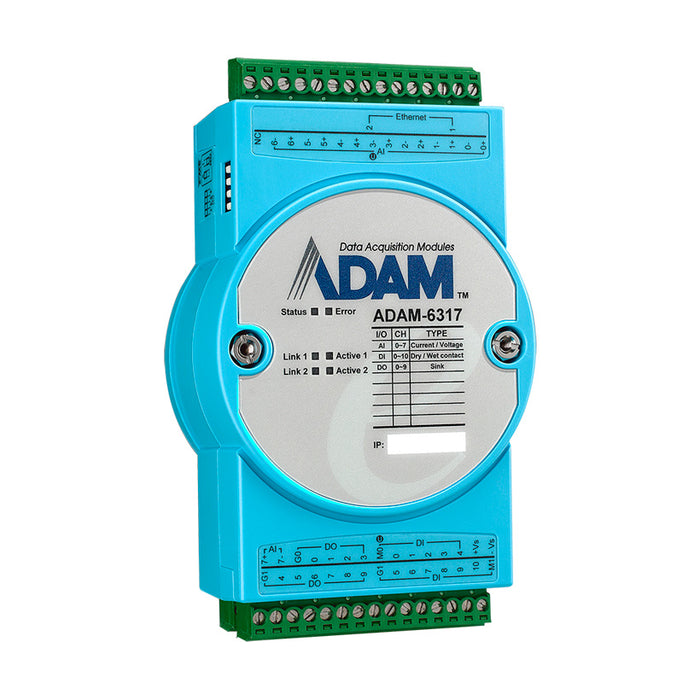

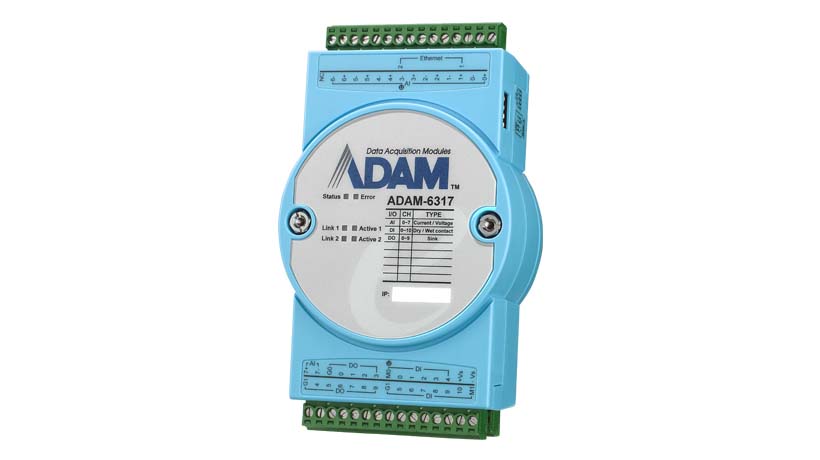

8AI/11DI/10DO IoT Modbus/OPC UA Ethernet Remote I/O

OPC UA empowers Modbus I/O users to access the industrial IoT worldOPC UA I/O links SCADA and the cloud without the need for gateways, accelerating OT and IT convergenceHardware and software double security levels to prevent being hackedCost-effective: high I/O density and daisy-chaining solution saves cost

Analog Input - Channels: 8 differential | Analog Input - Input Range: ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA, 0~20 mA, 4~20 mA, 0~150 mV, 0~500 mV, 0~1 V, 0~5 V, 0~10 V | Analog Input - Resolution(Bits): 16-bit with ±0.1% FSR accuracy @25°C for voltage input, 16-bit with ±0.2% FSR accuracy @25°C for current input | Analog Input - Sampling Rates(S/s): 10 or 100 (sum) | Counter/Encoder Input - Channels: 6 | Counter/Encoder Input - Max. Input Frequency: 3 kHz | Isolated Digital Input - Channels: 11 | Isolated Digital Input - Input Voltage: Dry contact Logic level 0: close to GND, Logic level 1: open. Wet Contact Logic level 0: 0~3 VDC, Logic level 1: 10~30 VDC | Isolated Digital Input - Isolation Protection: 2,500 VDC | Isolated Digital Output - Channels: 10 | Isolated Digital Output - Isolation Protection: 2,500 VDC | Isolated Digital Output - Output Type: Sink | Isolated Digital Output - Sink Current: 100 mA max./channel

• Model: ADAM-6317-A1
• Contact Us: +91 96993 71392
• Email: sales@elationind.com
• Worldwide Shipping Available
