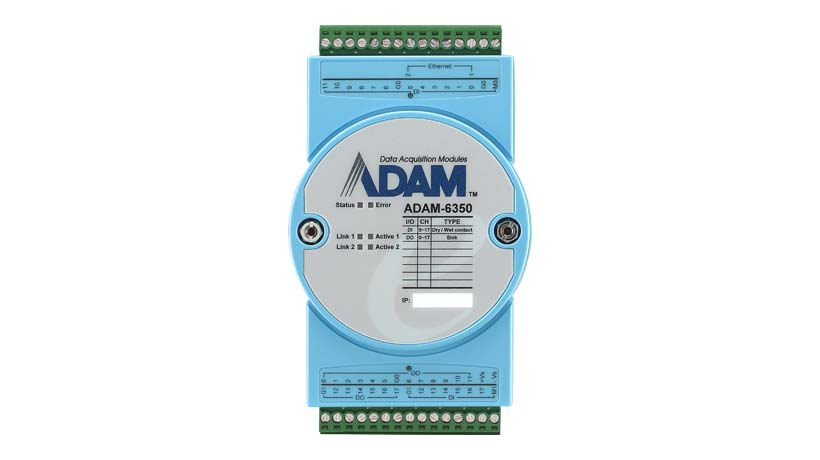

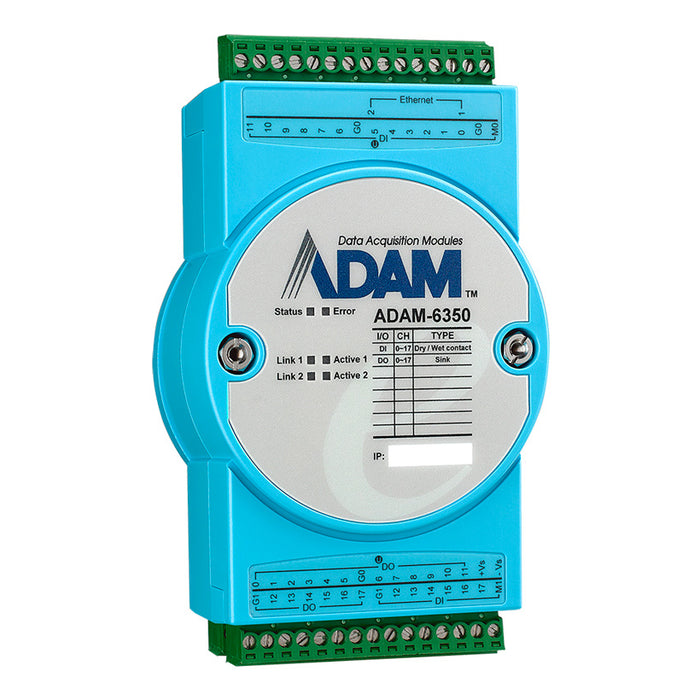

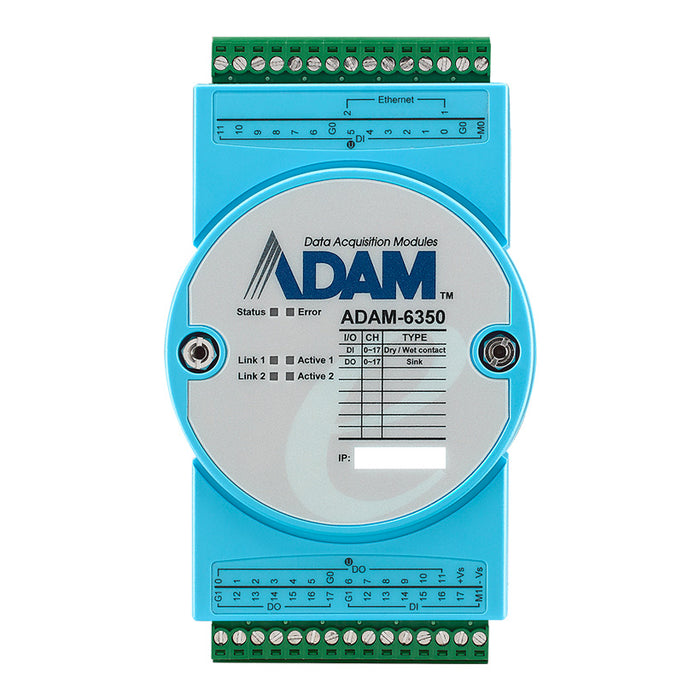

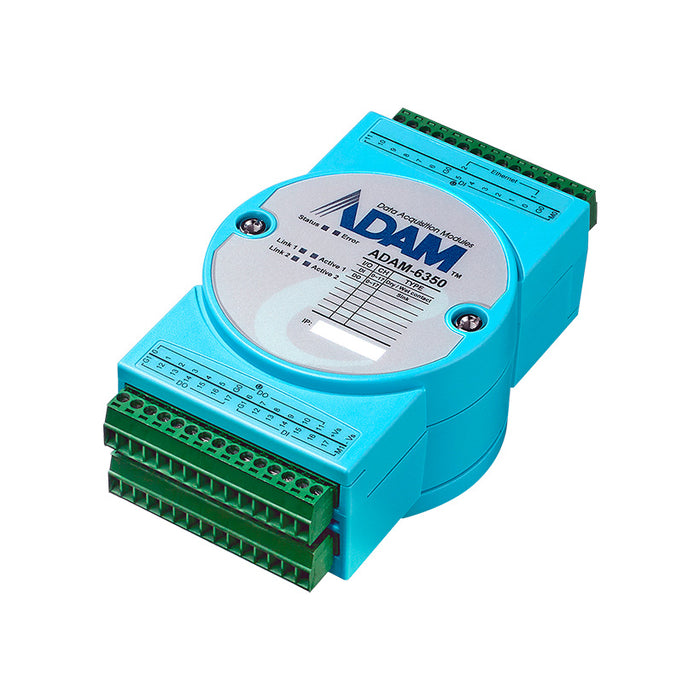

18DI/18DO IoT Modbus/OPC UA Ethernet Remote I/O

OPC UA empowers Modbus I/O users to access the industrial IoT worldOPC UA I/O links SCADA and the cloud without the need for gateways, accelerating OT and IT convergenceHardware and software double security levels to prevent being hackedCost-effective: high I/O density and daisy-chaining solution saves cost

Counter/Encoder Input - Channels: 6 | Counter/Encoder Input - Max. Input Frequency: 3 kHz | Isolated Digital Input - Channels: 18 | Isolated Digital Input - Input Voltage: Dry contact Logic level 0: close to GND, Logic level 1: open. Wet Contact Logic level 0: 0~3 VDC, Logic level 1: 10~30 VDC | Isolated Digital Input - Isolation Protection: 2,500 VDC | Isolated Digital Output - Channels: 18 | Isolated Digital Output - Isolation Protection: 2,500 VDC | Isolated Digital Output - Output Type: Sink | Isolated Digital Output - Sink Current: 100 mA max./channel

• Model: ADAM-6350-A1
