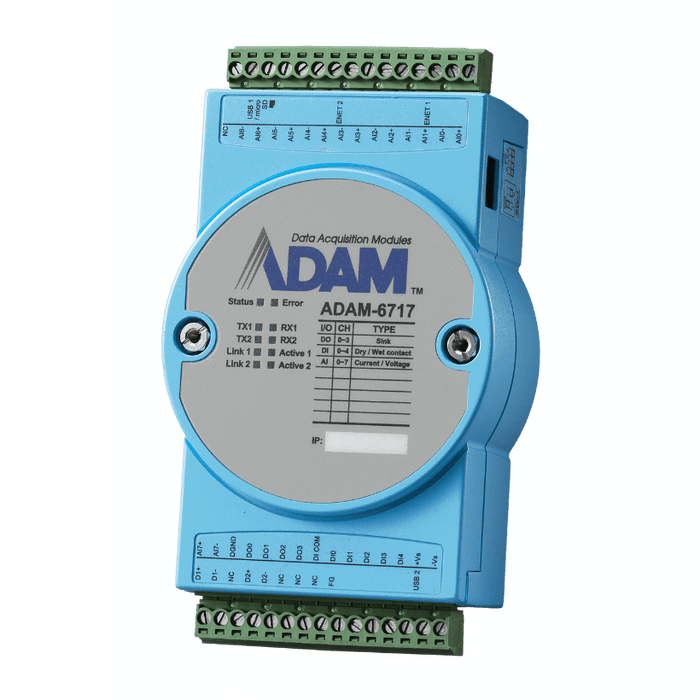

8AI/5DI/4DO Intelligent I/O Gateway

Linux Open Platform8ch analog input(current or voltage)/5ch digital input/4ch digital outputProgram by linux C API, Node-RED (graphic programming environment)Cloud/Database access ,edge data analysis and logic control, data visulization by dashboardInterfaces: RS-485x2, Ethernet port x 2 ,1 x USB Type-A 2.?0, 1 x USB Micro-B 2.0

Analog Input - Channels: 8 | Analog Input - Input Range: ±0.15 V ±0.5 V, ±1 V, ±5 V, ±10 V, ±20 mA, 0~20 mA, 4~20 mA, 0~0.15V, 0~0.5 V, 0~1 V, 0~5 V, 0~10 V | Analog Input - lnput Type: V, mV, mA | Analog Input - Resolution(Bits): 16-bit | Analog Input - Sampling Rates(S/s): 100 S/s (sum) | Environment - Isolation Voltage: 2,500 VDC | Environment - Operating Temperature: -40~70 °C (-40~158 °F) | Ethernet - No. of Ports: 2 | Ethernet - Speed: 10/100 Mbps | General - Connectors: 1 x 9-pin plug-in screw terminal, 2 x 15-pin plug-in screw terminal | General - Programming Language: Node-RED, Liunx C | Hardware - I/O: 2 x RS-485, 1 x Micro USB, 1 x USB 2.0 | Hardware - OS Support: Linux | Hardware - Storage: 1 x micro SD Slot | Isolated Digital Input - Channels: 5 | Isolated Digital Input - Input Voltage: Dry Contact Logic level 1: close to GND Logic level 0: open Wet Contact Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC | Isolated Digital Output - Channels: 4 | Isolated Digital Output - Output Type: Sink | Isolated Digital Output - Output Voltage: 0~30 VDC | Isolated Digital Output - Sink Current: 100 mA max./channel | Power Requirements - Input Voltage: 10~30 VDC

• Model: ADAM-6717-A
