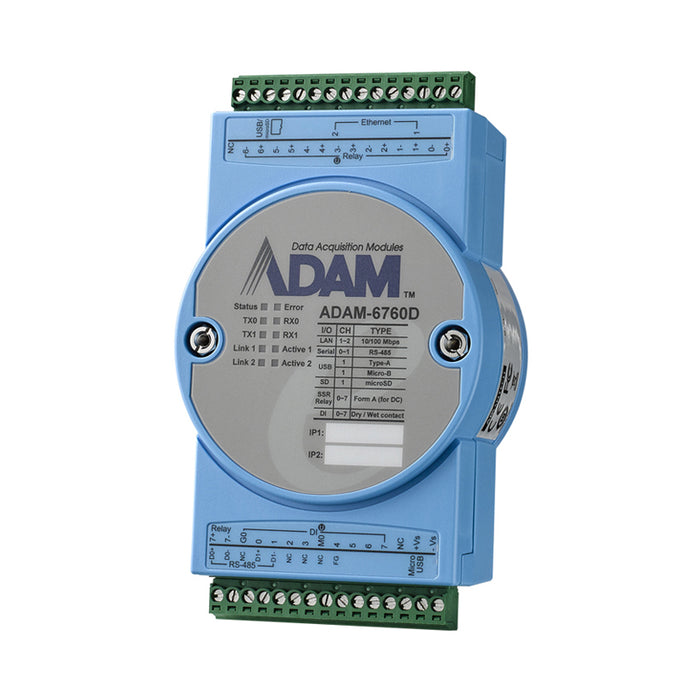

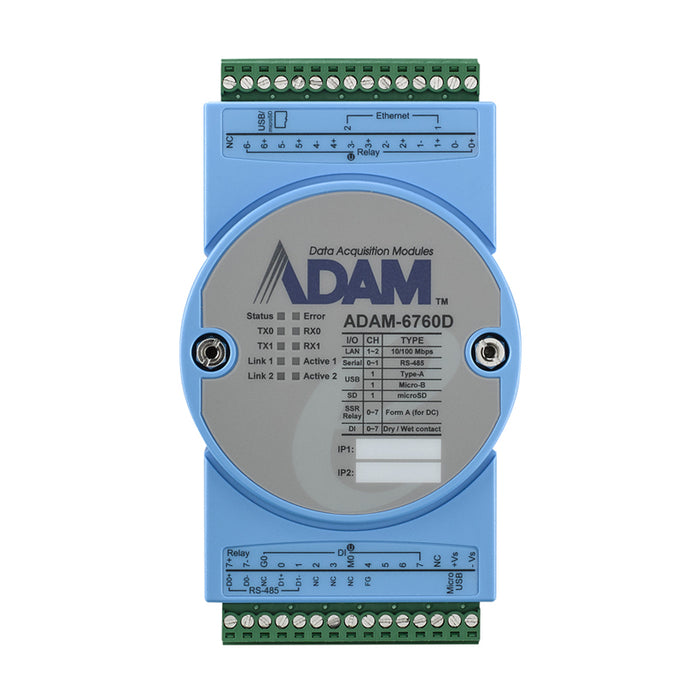

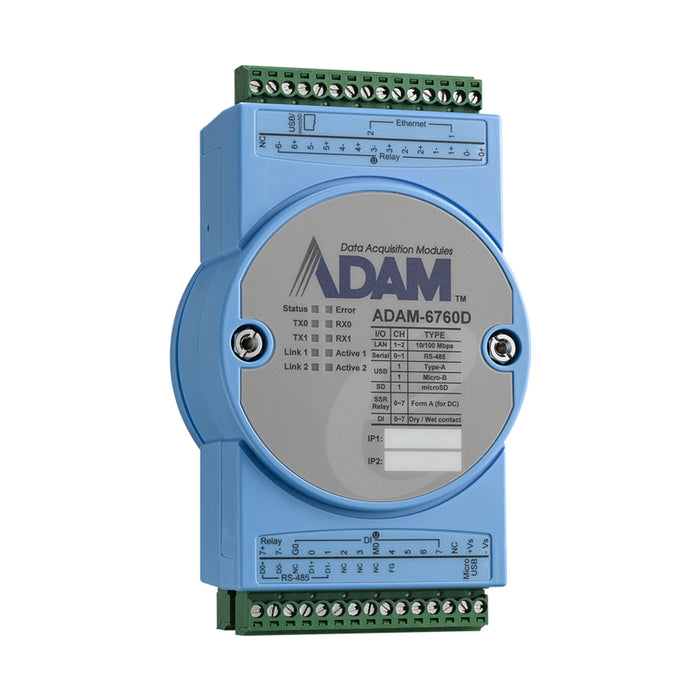

Intelligent I/O Gateway with SSR Relay

Linux open platform 8-channel SSR relay/ 8-channel digital input Programming: Linux C API, Node-RED (graphic programming environment) Cloud / database access, edge data analysis and logic control, and data visualization by dashboard Interfaces: RS-485x2, Ethernet port x 2 ,1 x USB Type-A 2.?0, 1 x USB Micro-B 2.0

Counter/Encoder Input - Channels: 8 | Counter/Encoder Input - Max. Input Frequency: 3 kHz | Environment - Isolation Voltage: 2,500 VDC | Environment - Operating Temperature: -40~70 °C (-40~158 °F) | Ethernet - No. of Ports: 2 | Ethernet - Speed: 10/100 Mbps | General - Connectors: 1 x 9-pin plug-in screw terminal, 2 x 15-pin plug-in screw terminal | General - Programming Language: Node-RED, Liunx C | Hardware - I/O: 2 x RS-485, 1 x Micro USB, 1 x USB 2.0 | Hardware - OS Support: Linux | Hardware - Storage: 1 x micro SD Slot | Isolated Digital Input - Channels: 8 | Isolated Digital Input - Input Voltage: Dry contact Logic level 0: close to GND, Logic level 1: open. Wet Contact Logic level 0: 0~3 VDC, Logic level 1: 10~30 VDC | Power Requirements - Input Voltage: 10~30 VDC | Relay Output - Channels: 8 PhotoMOS SPST Form A | Relay Output - Contact Rating (Resistive): 1 A @ 25 °C @ 30 VDC, 0.7 A @ 70 °C @ 30 VDC | Relay Output - Relay Type: 1 x Form A

• Model: ADAM-6760D-A
