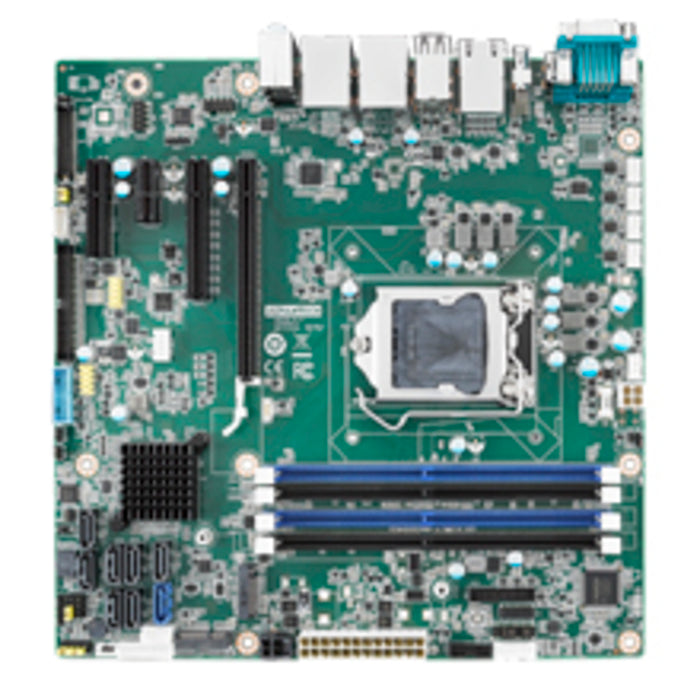

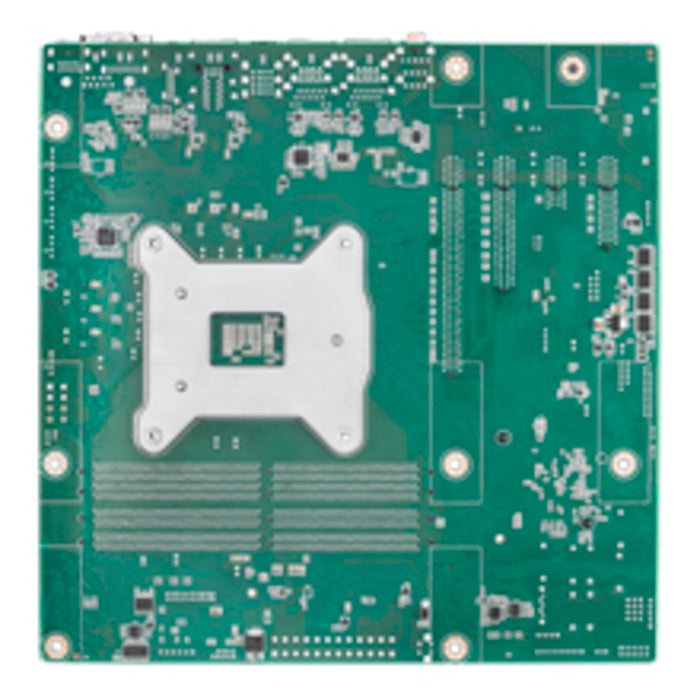

Explore the Advantech AIMB-586L-00A1E Micro-ATX motherboard featuring Intel® 8th/9th Gen Core™ i7/i5/i3 processor support, H310 chipset, triple display outputs, and essential I/O options for industrial applications.

🧾Product Overview

• Model: AIMB-586L-00A1E

• Form Factor: Micro-ATX

• Processor Support: Intel® 8th/9th Gen Core™ i7/i5/i3 (LGA1151)

• Chipset: Intel® H310

• Memory: Up to 64GB DDR4 2400/2666 MHz SDRAM, 2 x U-DIMM slots

• Graphics: Intel® HD Graphics with DirectX 11.1, OpenGL 5.0 support

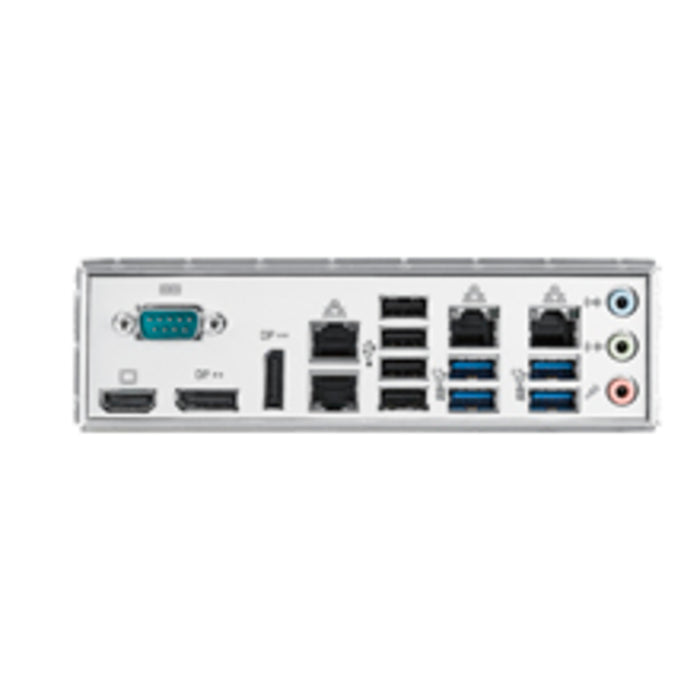

• Display Outputs: 1 x HDMI, 2 x DP++

• Storage: 4 x SATA III (600 MB/s)

• Expansion Slots: 1 x PCIe x16 (Gen3)

• LAN: 1 x GbE LAN (Intel® I219LM)

• USB Ports: 4 x USB 3.0, 6 x USB 2.0

• COM Ports: 2 (1 x RS232, 1 x RS232/422/485)

• TPM: Supports TPM 1.2/2.0 (optional)

• Operating Systems: Windows, Linux

• Software Support: WISE-PaaS/DeviceOn, Embedded Software APIs
