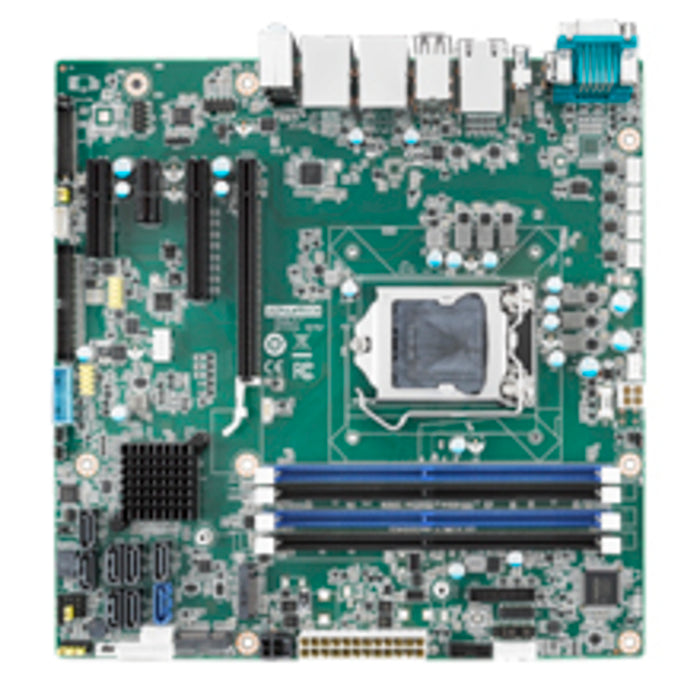

Discover the Advantech AIMB-586WG2-00A1E Micro-ATX motherboard featuring Intel® 8th/9th Gen Xeon® E3/Core™ i7/i5/i3 processor support, C246 chipset, triple display outputs, quad LAN, and extensive I/O options for industrial applications.

Product Overview

• Model: AIMB-586WG2-00A1E

• Form Factor: Micro-ATX

• Processor Support: Intel® 8th/9th Gen Xeon® E3 and Core™ i7/i5/i3 (LGA1151)

• Chipset: Intel® C246

• Memory: Up to 128GB DDR4 2400/2666 MHz SDRAM, 4 x U-DIMM slots

• Graphics: Intel® HD Graphics with DirectX 11.2, OpenGL 5.0, OpenCL 2.1 support

• Display Outputs: HDMI 2.0a (optional), 2 x DP++, eDP/LVDS (optional)

• Storage: 8 x SATA III (600 MB/s), M.2 (M-key), M.2 (E-key)

• Expansion Slots: PCIe Gen3 support

• LAN: Quad GbE LAN

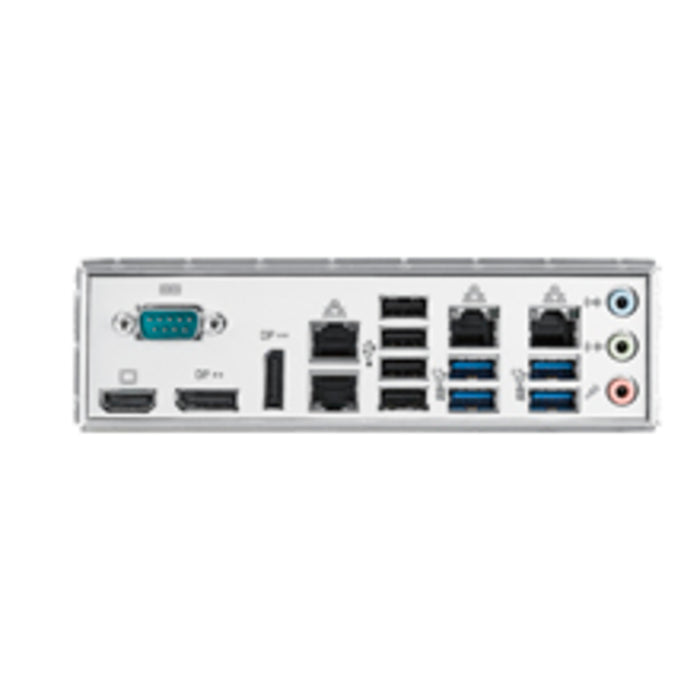

• USB Ports: 4 x USB 3.1, 10 x USB 2.0/3.0

• COM Ports: 6 (5 x RS232, 1 x RS232/422/485)

• TPM: Supports TPM 1.2/2.0 (optional)

• RAID Support: Software RAID 0, 1, 5, 10

• Operating Systems: Windows, Linux

• Software Support: WISE-DeviceOn, SUSI, Edge AI Suite

• Model: AIMB-586QG2-00A1E
