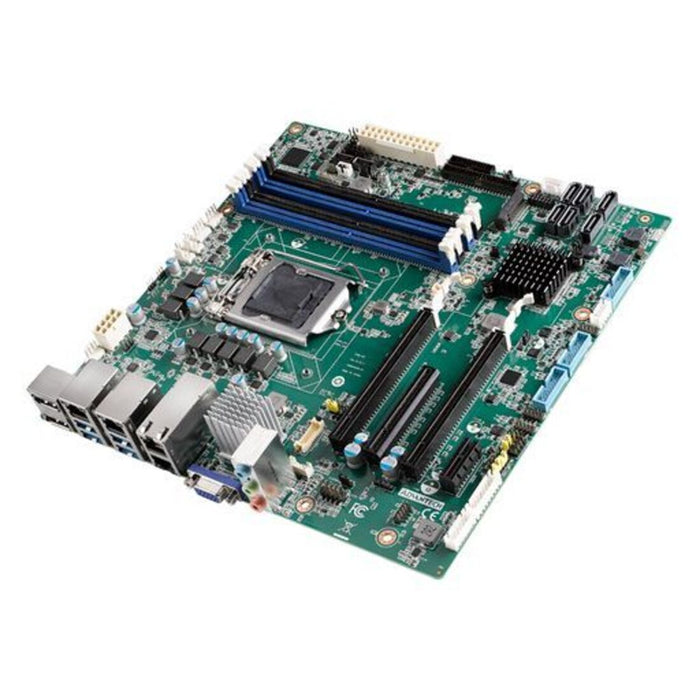

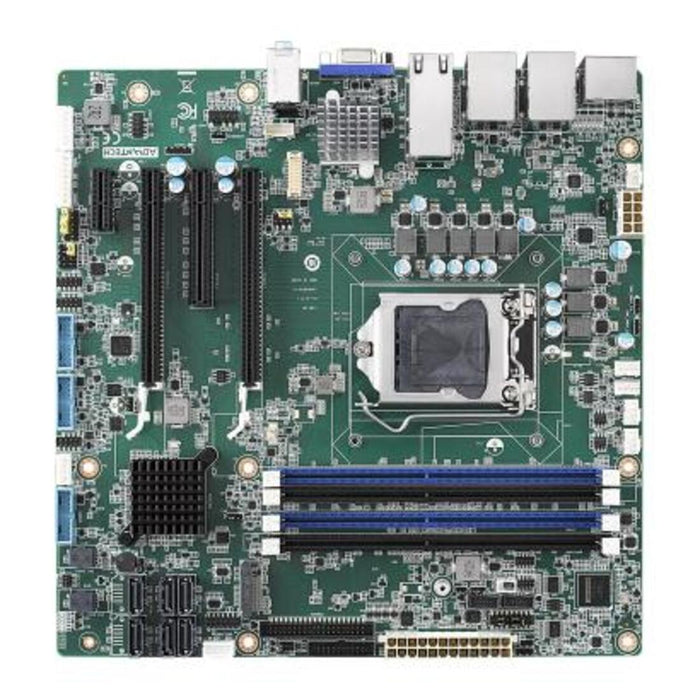

Micro-ATX motherboard with Intel® H420E chipset, supporting 10th Gen Xeon®/Core™ CPUs, up to 128GB DDR4 RAM, triple display outputs, and dual GbE LAN.

Model: AIMB-587L-00A1E

Applications: Ideal for industrial automation, embedded systems, and applications requiring reliable performance with multiple I/O interfaces.

Features:

• Processor Support: Intel® 10th Gen Xeon®/Core™ i9/i7/i5/i3 (Comet Lake-S)

• Chipset: Intel® H420E

• Memory: Up to 128GB DDR4 2666/2933 MHz, ECC/Non-ECC, 4 x 288-pin DIMM slots

• Graphics: Intel® HD Graphics with support for DirectX 11.2, OpenGL 5.0, OpenCL 2.1

• Display Outputs: Dual DP++, eDP, optional VGA; supports triple display

• Storage: 6 x SATA III, M.2 (M-key)

• Expansion Slots: 1 x PCIe x16, 1 x PCIe x4, 1 x PCIe x1

• Ethernet: Dual Intel® GbE LANs

• USB Ports: 4 x USB 3.2 Gen2, 6 x USB 3.2 Gen1, 6 x USB 2.0

• Serial Ports: 6 COM ports (5 x RS232, 1 x RS232/422/485)

• Audio: Realtek ALC888S HD Audio, Line out, Mic-in

• Operating Temperature: 0°C to 60°C

• Certifications: CE, FCC
