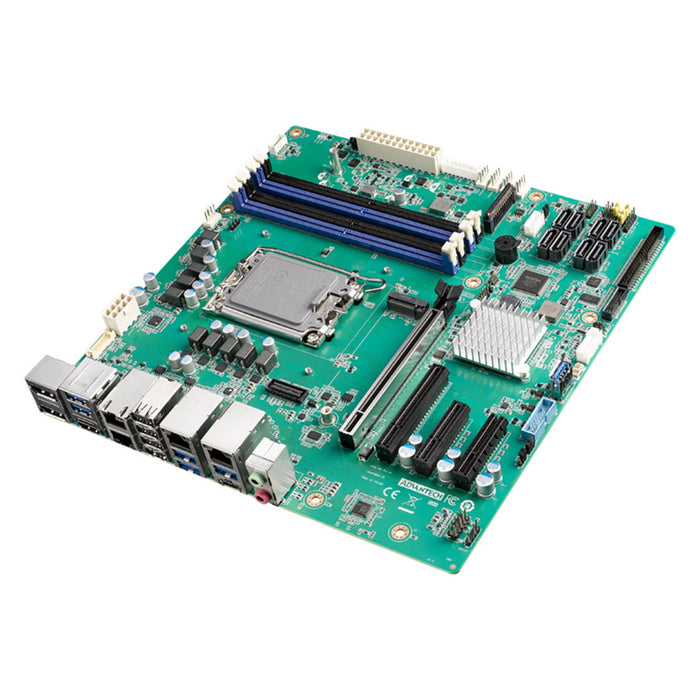

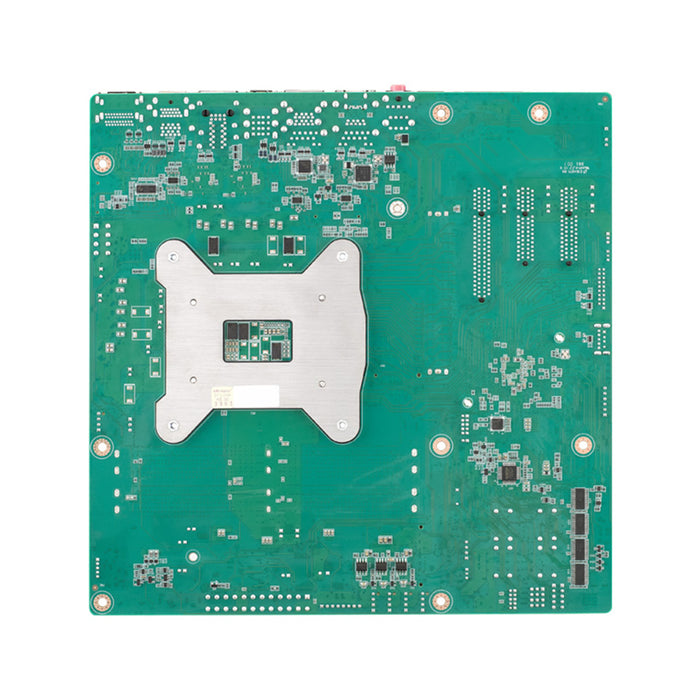

Micro-ATX motherboard with Intel® Q670E chipset, supporting 12th/13th/14th Gen Core™ processors, up to 192GB DDR5, quad display, and multiple LAN ports.

Model: AIMB-588QM-0AB1

Applications:

• Industrial automation systems

• Edge computing platforms

• Digital signage and multimedia applications

• Network security appliances

Features:

• Processor Support: Intel® 12th/13th/14th Gen Core™ i9/i7/i5/i3 processors (LGA1700)

• Chipset: Intel® Q670E

• Memory: Up to 192GB DDR5 UDIMM, dual-channel, 3600/4000/4400 MHz

• Graphics: Integrated Intel® UHD Graphics

• Display Outputs: 2 x DP++, 1 x HDMI, 1 x eDP; supports quad display

• Storage: 8 x SATA III (6 Gb/s)

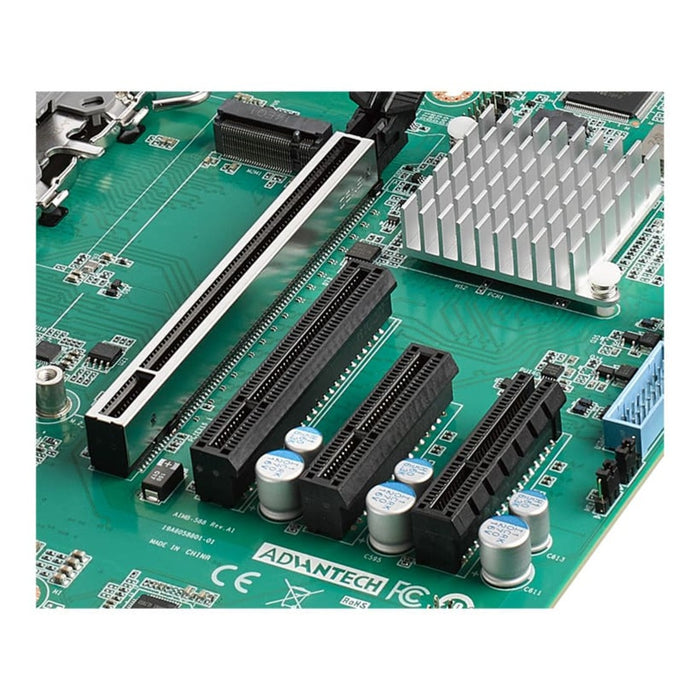

• Expansion Slots: 1 x PCIe x16 Gen5, 1 x PCIe x4 Gen4, 1 x PCIe x4 Gen3

• Ethernet: 3 x 2.5GbE LAN, 1 x GbE LAN

• USB Ports: 8 x USB 3.2, 1 x USB 3.2 Type-C, 1 x internal USB 3.2 Type-A

• Serial Ports: 6 x COM ports

• TPM: Onboard TPM for enhanced security

• Operating Temperature: 0°C to 60°C

• Form Factor: Micro-ATX
