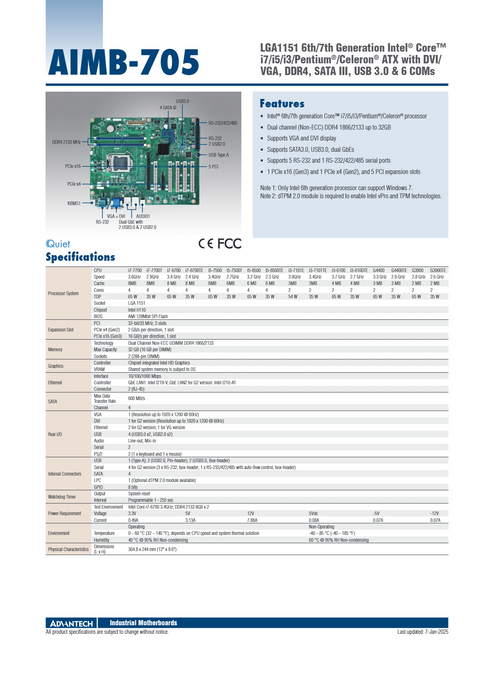

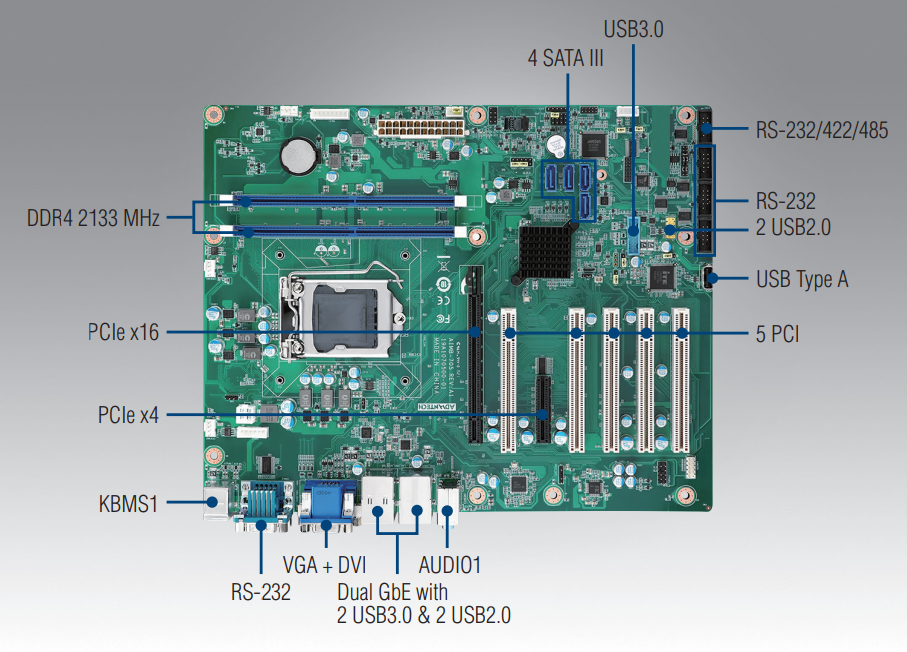

The Advantech AIMB-705 is a high-performance industrial ATX motherboard built on the Intel® LGA1151 socket, supporting 6th and 7th Gen Intel® Core™ i7/i5/i3, Pentium®, and Celeron® processors. Designed for industrial automation, control systems, and embedded computing, this board delivers powerful I/O and expansion capabilities.

Key Features:

• Supports Intel® 6th/7th Gen Core™ i7/i5/i3, Pentium®, and Celeron® CPUs

• Dual-channel DDR4 1866/2133 MHz, up to 32GB (Non-ECC)

• Dual display support with VGA and DVI outputs

• High-speed SATA III and USB 3.0 interfaces

• 6 serial ports: 5 RS-232 and 1 RS-232/422/485

• Expansion: 1 PCIe x16 (Gen3), 1 PCIe x4 (Gen2), and 5 PCI slots

• Dual Gigabit Ethernet ports for reliable networking
