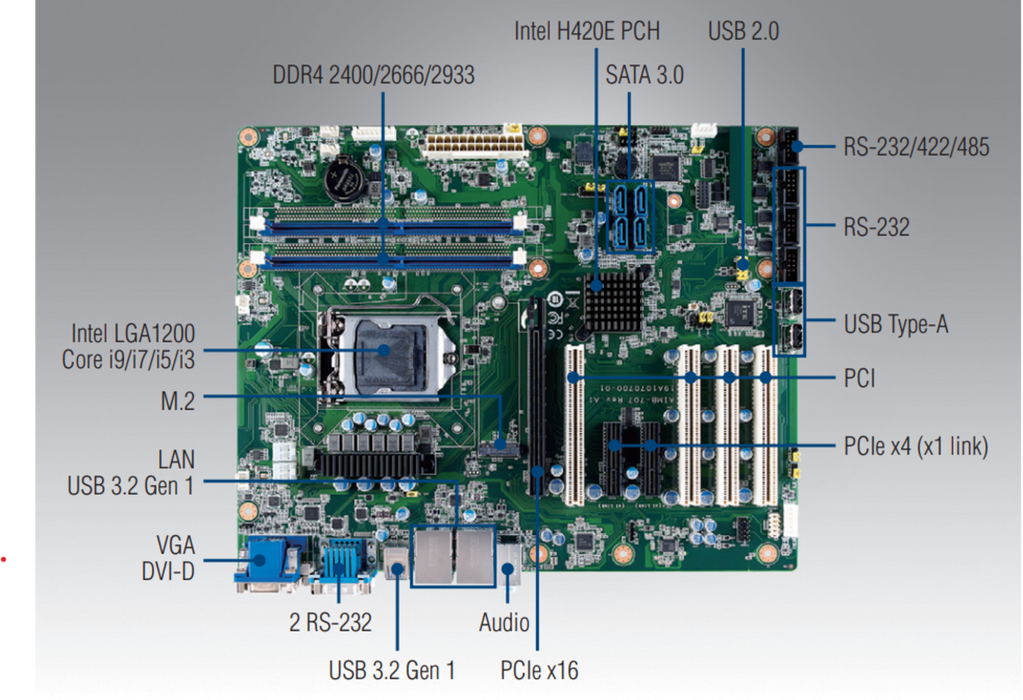

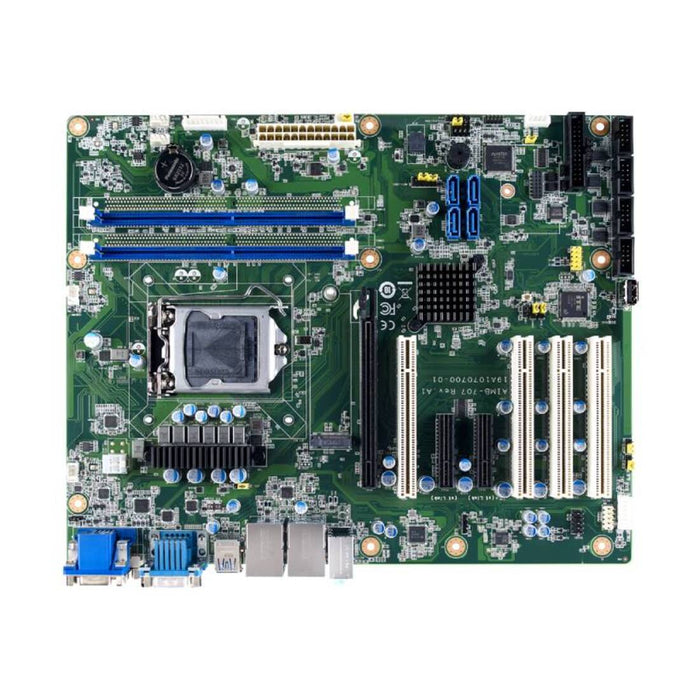

The Advantech AIMB-707 is a high-performance industrial ATX motherboard built on the LGA1200 socket, supporting Intel® 10th Gen Core™ i9/i7/i5/i3, Pentium®, and Celeron® processors. It is designed for modern industrial automation, control systems, and embedded applications, with support for high-speed interfaces and advanced expansion.

Key Features:

• Supports Intel® 10th Gen Core™ i9/i7/i5/i3, Pentium®, and Celeron® CPUs with H420E chipset

• Dual-channel DDR4 2400/2666/2933 MHz, up to 64 GB (Non-ECC)

• Dual display support with VGA and DVI outputs

• High-speed USB 3.2, M.2, and SATA 3.0 interfaces

• 6 serial ports: 5 x RS-232 and 1 x RS-232/422/485

• Expansion: 1 PCIe x16 (Gen3), 2 PCIe x4 (x1 Gen3 link), and 4 PCI slots

• Dual Gigabit Ethernet ports for secure and fast networking

This motherboard is ideal for next-gen industrial systems that require robust computing, modern I/O, and long-term support.
