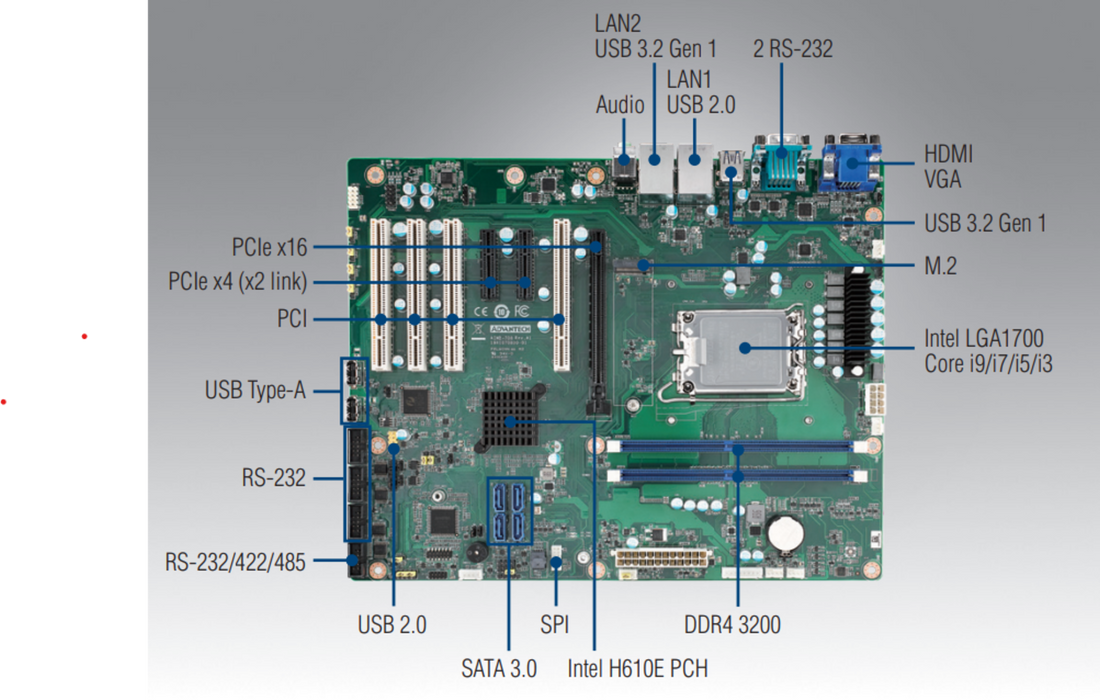

The Advantech AIMB-708 is a next-generation industrial ATX motherboard designed to support the latest Intel® 12th, 13th, and 14th Gen Core™ i9/i7/i5/i3, Pentium®, and Celeron® processors. Featuring the LGA1700 socket and H610E chipset, it delivers robust performance and modern I/O for demanding industrial automation and control applications.

Key Features:

• Compatible with Intel® 12th/13th/14th Gen Core™ i9/i7/i5/i3, Pentium®, and Celeron® CPUs

• Two DDR4 DIMM slots supporting up to 64GB 3200 MHz (Non-ECC)

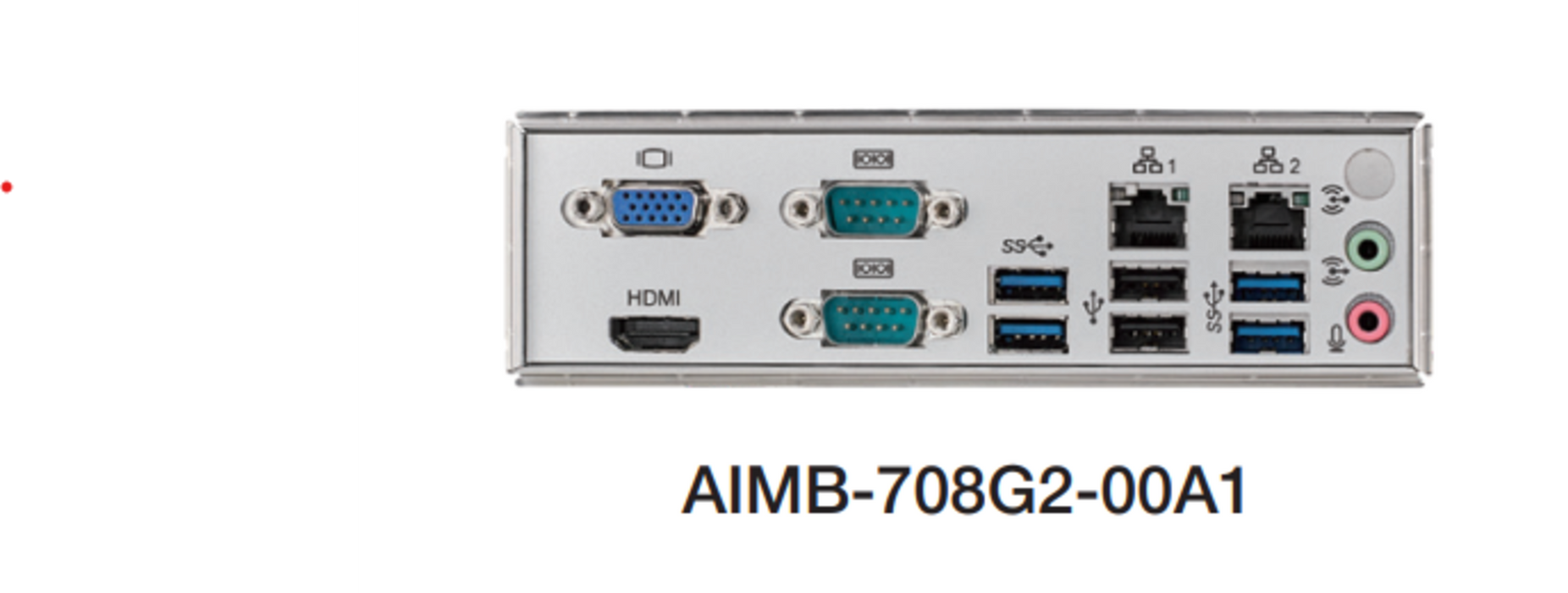

• Dual display support via HDMI and VGA

• Fast connectivity with USB 3.2 Gen1, M.2, and SATA 3.0

• 6 serial ports: 5 x RS-232 and 1 x RS-232/422/485

• Expansion: 1 PCIe x16 (Gen4), 2 PCIe x4 (x2 Gen3 link), and 4 legacy PCI slots

• Dual Gigabit Ethernet ports for stable industrial networking

• Supports Windows 11 IoT Enterprise LTSC

A powerful, long-life solution for industrial systems requiring the latest Intel® CPU support, high-speed interfaces, and legacy expandability.
