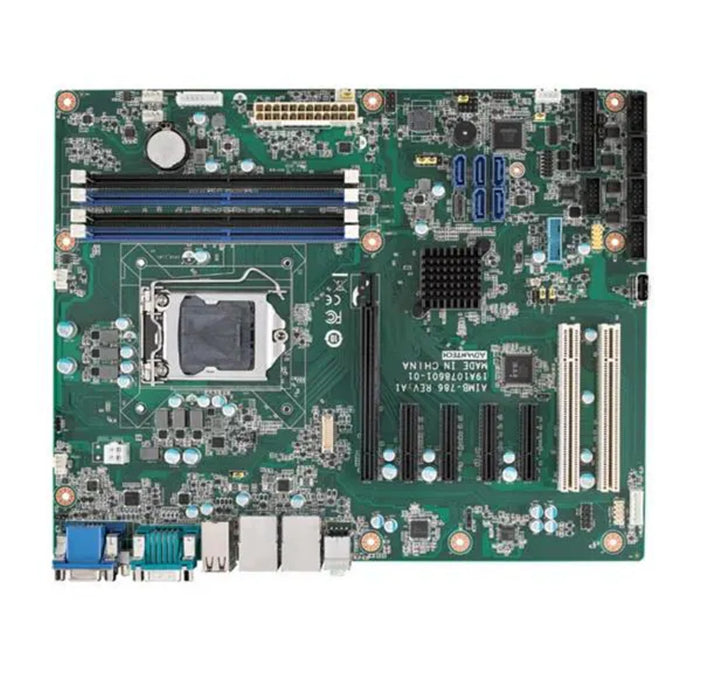

The Advantech AIMB-786 is a high-performance industrial ATX motherboard supporting 8th and 9th Gen Intel® Core™ i7/i5/i3, Pentium®, and Celeron® processors with the LGA1151 socket and Q370 chipset. Designed for advanced industrial applications, it features powerful graphics support, robust expansion, and next-gen connectivity.

Key Features:

• Compatible with Intel® 8th/9th Gen Core™ i7/i5/i3, Pentium®, and Celeron® CPUs

• Q370 chipset, LGA1151 socket

• 4 x DDR4 DIMM slots, up to 128 GB (2400/2666 MHz)

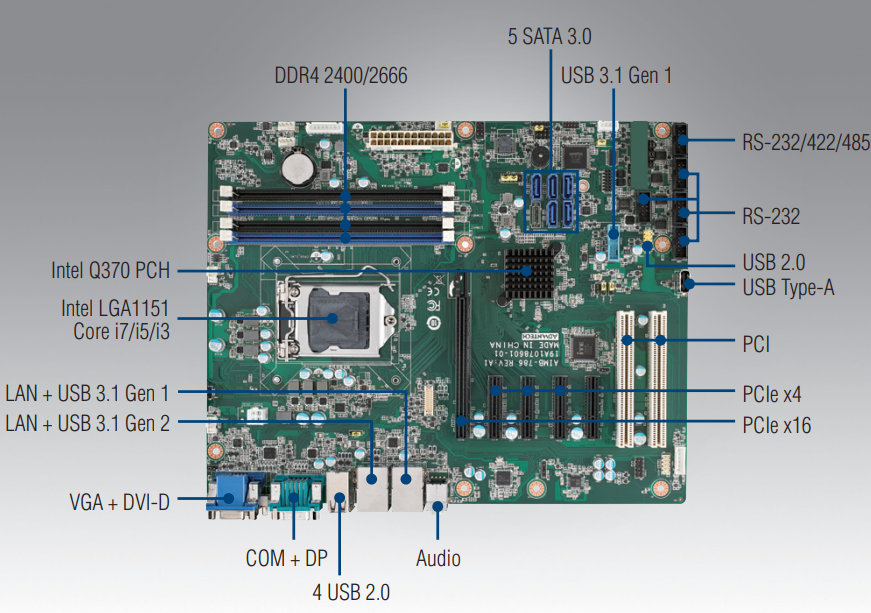

• Triple display output: VGA, DVI-D, and DisplayPort (DP)

• Dual Gigabit Ethernet (LAN) ports

• USB 3.1, SATA 3.0, and RAID 0/1/5/10 for flexible connectivity

• Supports Intel® vPro, AMT, and TPM security features

• Compatible with Windows 11 IoT Enterprise via Intel® PTT

Ideal for industrial automation, medical equipment, and smart factory systems.
