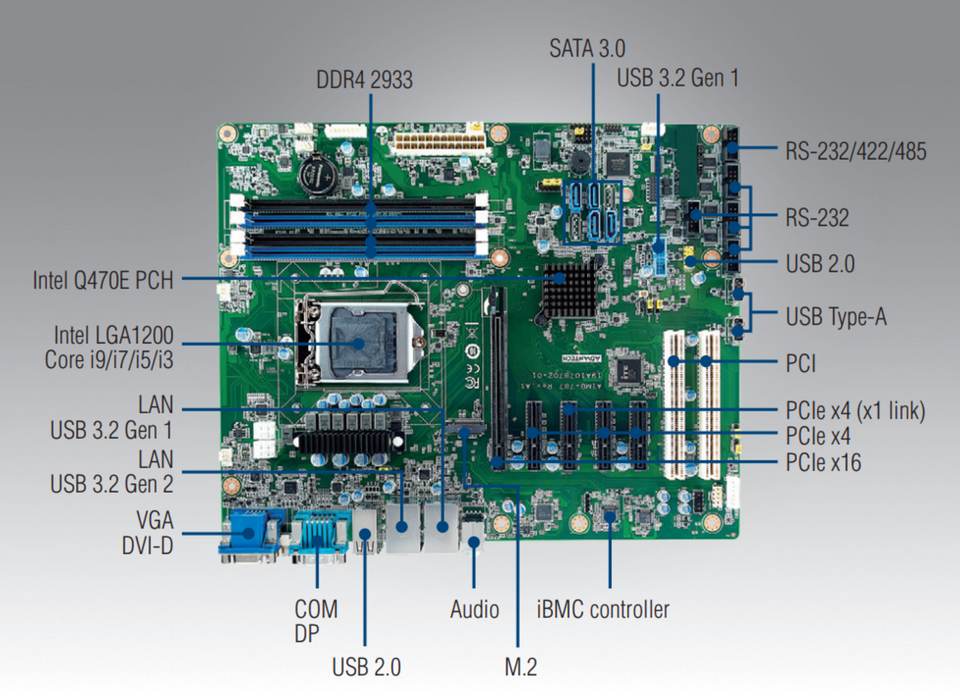

The Advantech AIMB-787 is a next-generation industrial-grade ATX motherboard designed to support 10th Gen Intel® Core™ i9/i7/i5/i3, Pentium®, and Celeron® processors on the LGA1200 socket with the Q470E chipset. Built for industrial automation and embedded systems, it delivers advanced connectivity, remote management, and superior processing power.

Key Features:

• Supports Intel® 10th Gen Core™ i9/i7/i5/i3, Pentium®, and Celeron® CPUs

• LGA1200 socket with Q470E chipset

• 4 x DDR4 DIMM slots, up to 128 GB (2933 MHz)

• Triple display support: DisplayPort (DP), DVI-D, and VGA

• Dual GbE LAN, USB 3.2, and M.2 expansion

• SATA RAID 0/1/5/10 for high-performance storage

• Intel vPro, AMT, TPM, and Platform Trust Technology (PTT) support

• Integrated Advantech iBMC 1.2 for remote out-of-band management via DeviceOn

Ideal for industrial control, automation, and edge computing with high availability and remote manageability needs.
