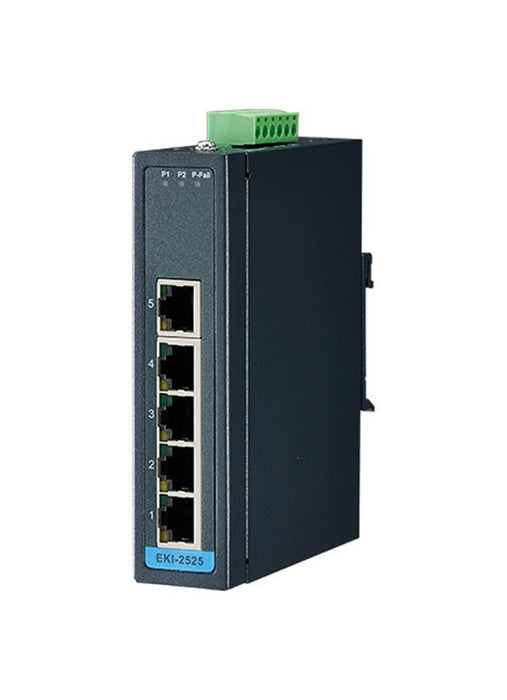

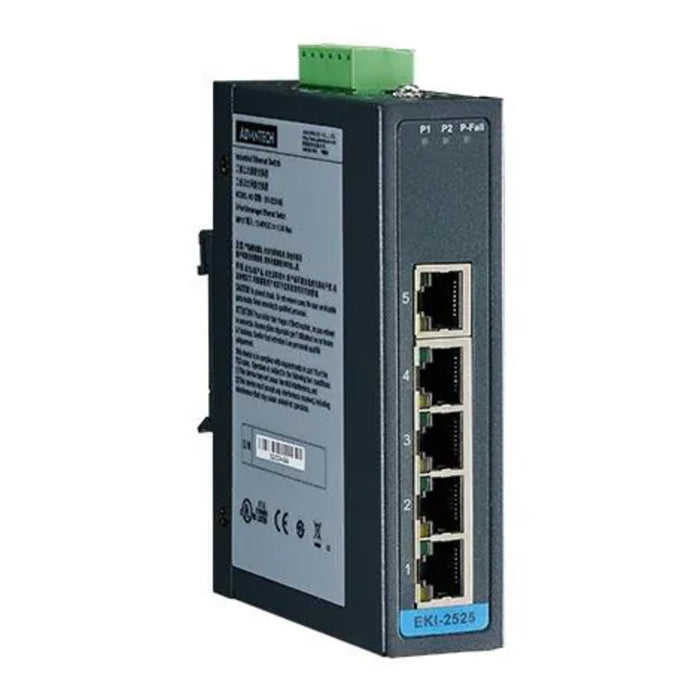

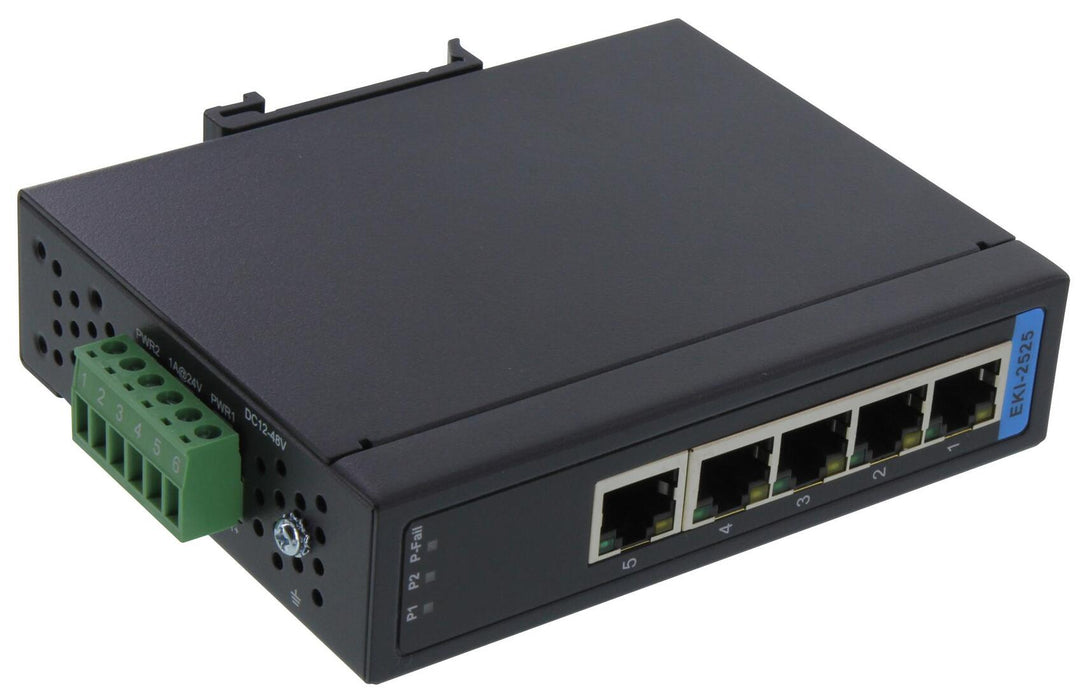

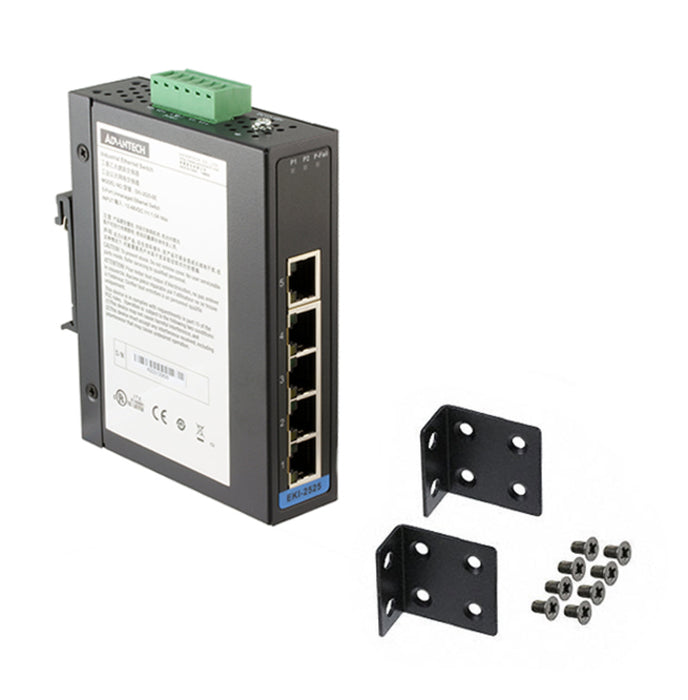

5-port 10/100 Mbps unmanaged Ethernet switch with IP30 metal housing, DIN-rail/wall mountable, 12–48 VDC redundant power input, and -10 to 60°C operating range.

Model: EKI-2525-BE

Applications:

• Industrial automation systems

• Factory and process control networks

• Building automation

• Transportation and infrastructure

Features:

• Ports: 5 x 10/100 Mbps RJ45 with Auto MDI/MDI-X

• Auto Negotiation: Supports 10/100 Mbps

• Protection: 4,000 VDC Ethernet ESD protection; 3,000 VDC surge protection for power line

• Power Input: Redundant 12–48 VDC with P-Fail relay

• Mounting: DIN-rail and wall mountable

• Enclosure: IP30-rated metal housing

• Operating Temperature: -10 to 60°C

• Dimensions: 37 x 140 x 95 mm

• Certifications: CE, FCC, UL
