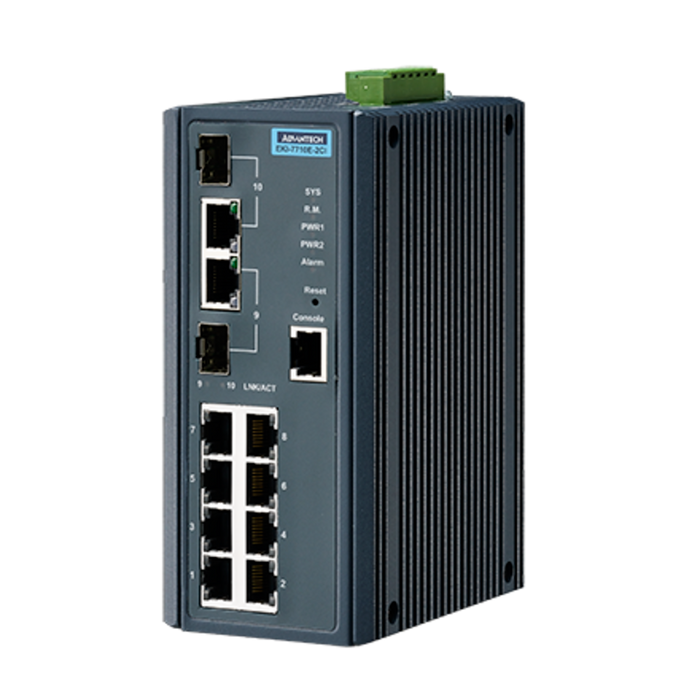

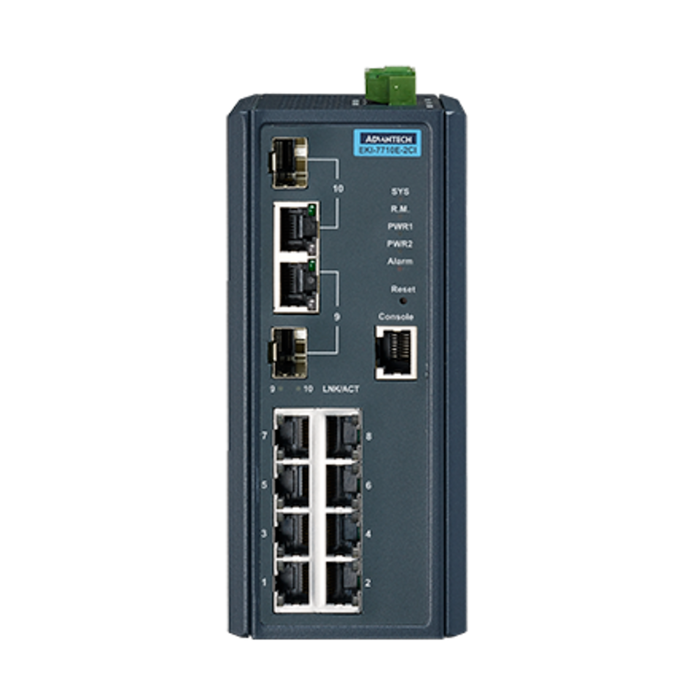

Robust 10-port managed switch with 8 Fast Ethernet and 2 Gigabit combo ports, wide temperature range, and advanced redundancy for industrial networks.

Model: EKI-7710E-2CI-BE

Applications:

• Industrial automation systems

• Factory and process control networks

• Building automation

• Transportation and infrastructure

Features:

• Ports: 8 x 10/100 Mbps RJ-45, 2 x 10/100/1000 Mbps RJ-45/SFP combo ports

• Redundancy: X-Ring Pro with ultra-high-speed recovery time < 20 ms, RSTP/STP (802.1w/1D)

• Management: SNMP v1/v2c/v3, Web, Telnet, Standard MIB, Private MIB

• Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS

• Power Input: Redundant 12–48 VDC with 6-pin screw terminal block

• Power Consumption: 12.1W @ 48VDC

• Mounting: DIN-rail and wall mountable

• Enclosure: IP30-rated metal housing

• Operating Temperature: -40 to 75°C

• Dimensions: 74 x 152 x 105 mm

• Certifications: CE, FCC, UL, EN 61000-4-2/3/4/5/6/8, IEC 60068-2-27/32/6
