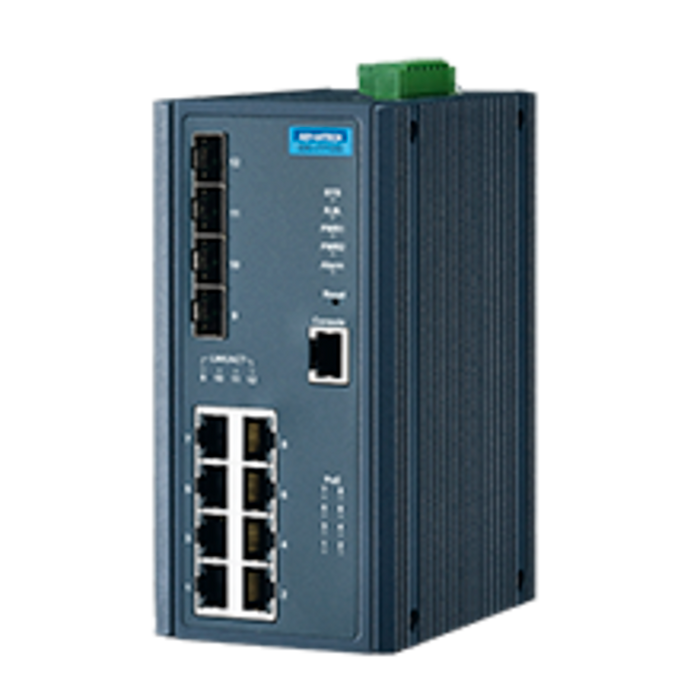

12-port managed switch with 8 PoE+ Gigabit ports, 4 SFP slots, -40 to 75°C operating range, EN50121-4 certified, ideal for industrial applications.

Model: EKI-7712G-4FPI-AE

Applications:

• Industrial automation systems

• Factory and process control networks

• Building automation

• Transportation and infrastructure

Features:

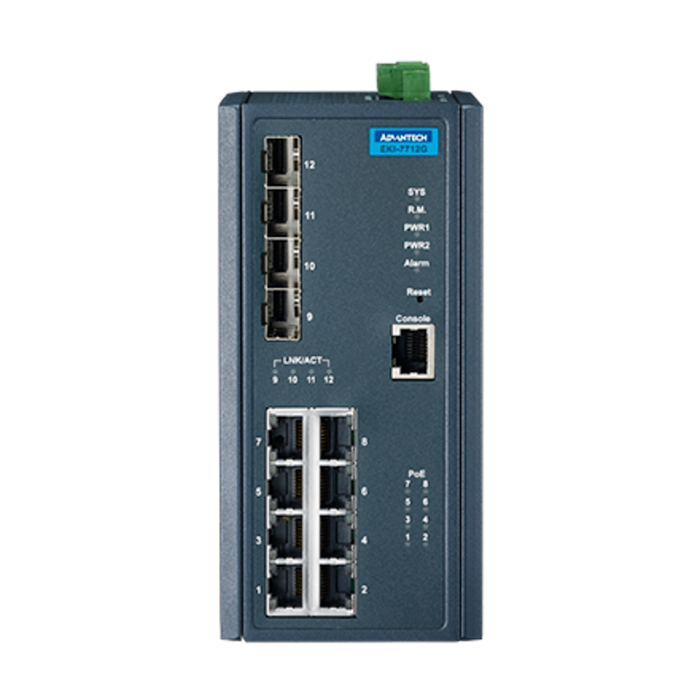

• Ports: 8 x IEEE 802.3 af/at PoE Gigabit ports + 4 x SFP (mini-GBIC) ports

• PoE Support: Provides up to 30 watts per port to fulfill high power consumption PD (Power Device)

• Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)

• Management: SNMP v1/v2c/v3, Web, Telnet, Standard MIB, Private MIB

• Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS

• Power Input: Dual 48 VDC power input with 6-pin removable screw terminal

• Power Consumption: 12.1W (system)

• Operating Temperature: -40 to 75°C

• Storage Temperature: -40 to 85°C

• Dimensions: 74 x 152 x 105 mm

• Enclosure: Metal, IP30-rated

• Certifications: EN50121-4 for Railway trackside deployment, NEMA TS2 for Traffic Control
