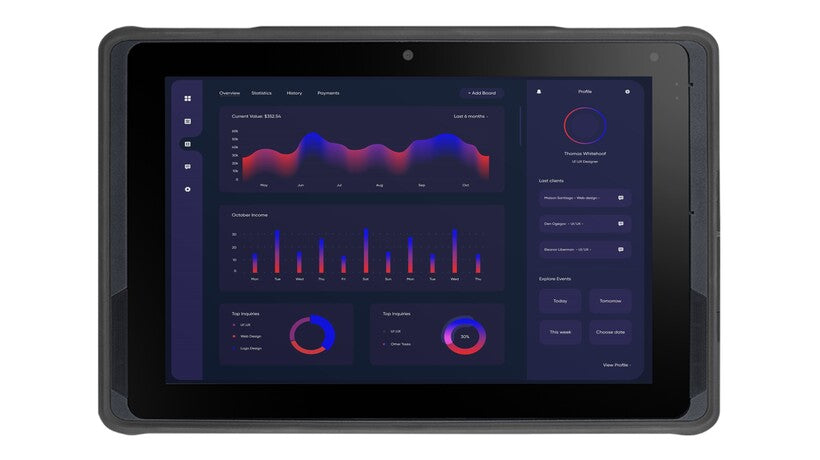

10I/N200/8G/128G/Win 11/Wifi 6E

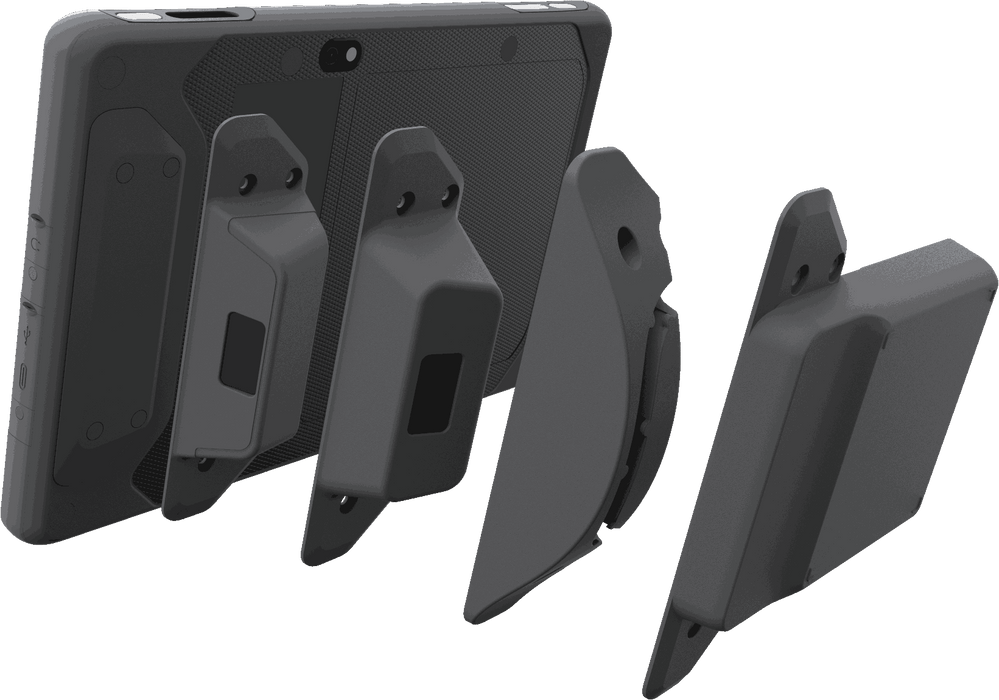

Integrated barcode scanner supports data collectionIntel Alder Lake-N processor for Windows 11 IoT Enterprise (GAC)The battery with capacity meter that shows the remaining power and recharge status minimizes system interruptions for reliable long-duration operation10" WUXGA full HD display with scratch-resistant Corning® Gorilla® Glass 3 and multi-touch PCAP controlWi-Fi 6E, Bluetooth® 5.?3, NFC technology for seamless communicationsOptional extension include 1D/2D barcode scanner, LAN moduleEquipped with DeviceOn/iService software for remote device management

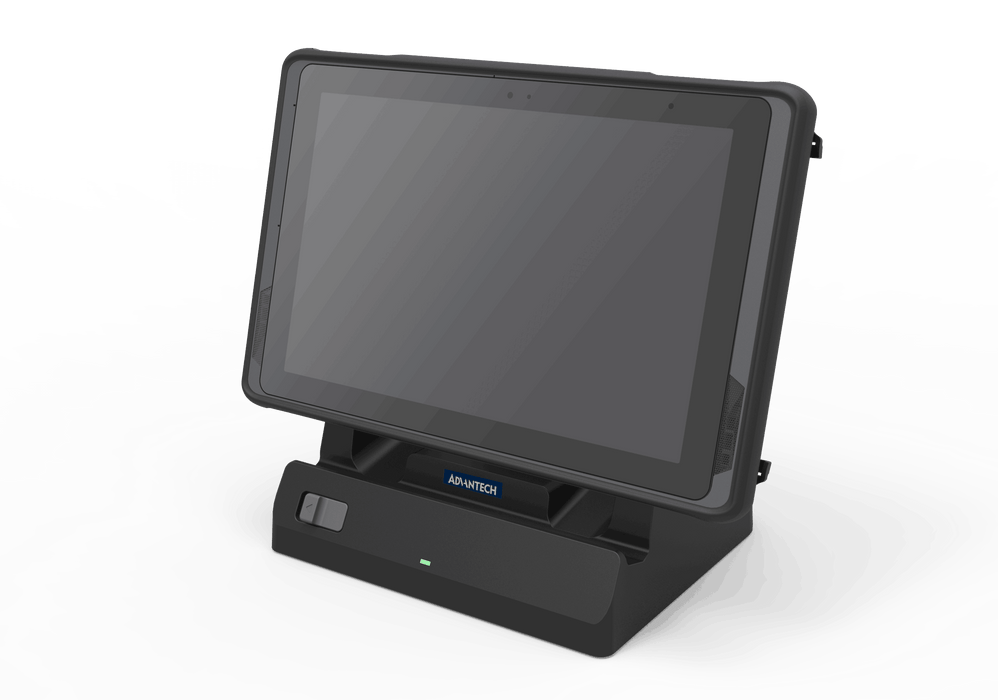

Audio - Audio Jack: 1 x Audio combo jack (combines stereo audio output and mono microphone input) | Camera - Front: 5.0-megapixel fixed-focus camera | Camera - Rear: 13.0-megapixel aufo-focus camera with LED flash | Computing System - Operating System: Windows 11 IoT Enterprise (GAC) | Connectivity - Docking: 1 x AIM docking 16-pin pogo connector: 1 x USB 3.0, 12V power | Connectivity - Speaker: 2 x Internal speakers (2 W) | Control Buttons - -: 1 x Power button, 2 x volume keys (up/down), 1 x programmable function key | Display - Brightness (cd/m2): 380cd/m2 | Display - Glass Type: Corning® Gorilla® Glass 3 | Display - Resolution: WUXGA 1920 x 1200 | Display - Touch Type: 10-point multi-touch P-CAP touch control | Display - Type: 10.1" FHD LCD | Environment - Certifications: FCC, CE, CB, UL, TELEC, VCCI, BSMI, NCC, CCC, SRRC, RCM, IC | Environment - Charging Temperature: 0 ~ 40 °C (32 ~ 104 °F) | Environment - Drop Tested: Up to 120 cm (4 ft) onto plywood | Environment - Humidity: Operating: 40 °C @ 95% relative humidity, non-condensing Storage: 60 °C @ 95% relative humidity, non-condensing | Environment - IP Rating: IP65 | Environment - Operating Temperature: -10 ~ 50 °C (14 ~ 122 °F) | Environment - Shock / Vibration: IEC60068-2-27 / IEC60068-2-64 | Environment - Storage Temperature: -20 ~ 60 °C/-4 ~ 140 °F | I/O - Extended I/O Port: 1 x AIM extension 14-pin pogo connector: 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power | I/O - Standard I/O Port: 1x USB3.1 Type C for Charging &DP, 1x USB 3.1 type-A | I/O Interface - LED: Full: green (100%); Charging: blue; Low: orange (?10%) | Mechanical - Dimensions (W x H x D): 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in) | Mechanical - Weight: 1.1 Kg (2.4 lb) | Option - Barcode Scanner: N/A | Power System - Battery: Smart battery with capacity LED indicators; 11.55V, 4010mAh, 46.31Wh, Operating time: 5.5 hr (depending on usage scenario*) Charging time: < 3 hr | Power System - Input Voltage: USB Type-C: 20V/3.25A Docking pogo: 12V/2A | Security - _: TPM 2.0 | Sensors - _: Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope | Storage - Storage: m.2 NVMe SSD 128GB (Optional: 256GB) | System - Memory: 8GB LPDDR5 | System - Processor: Intel® N200, 3.70 GHz | Wireless Communication - NFC: 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica | Wireless Communication - WLAN/Bluetooth: IEEE 802.11a/b/g/n/ac/ax, Bluetooth® 5.3

• Model: AIM-68S-201000
• Contact Us: +91 96993 71392
• Email: sales@elationind.com
• Worldwide Shipping Available
