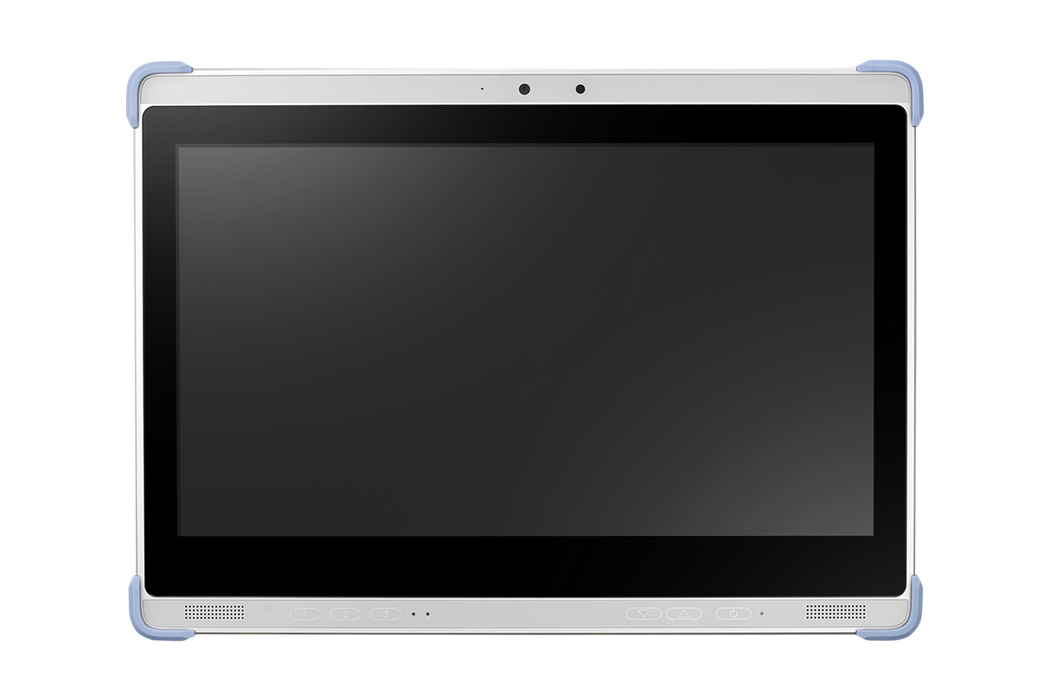

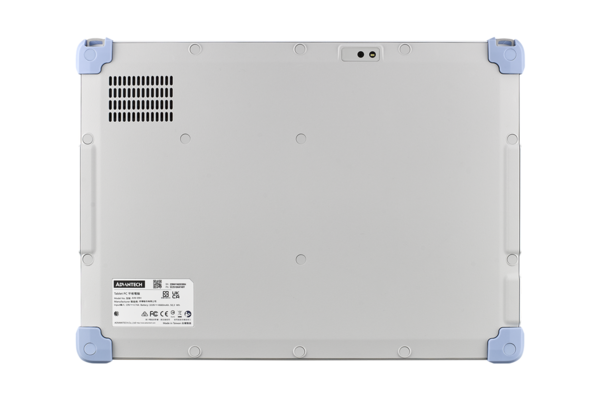

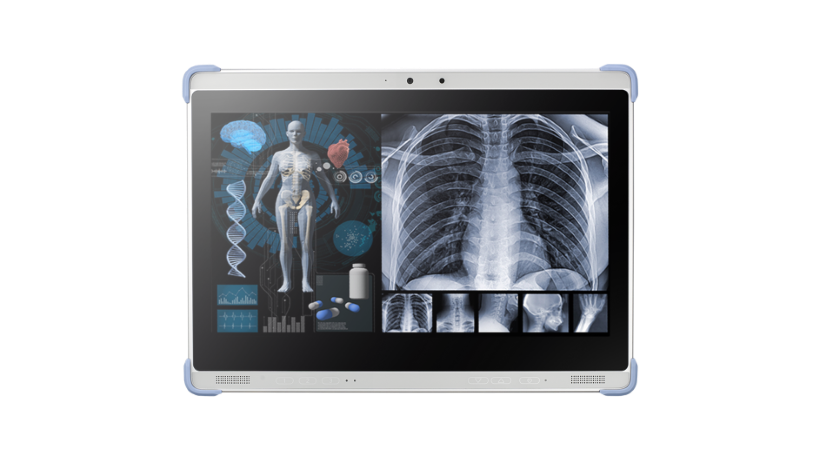

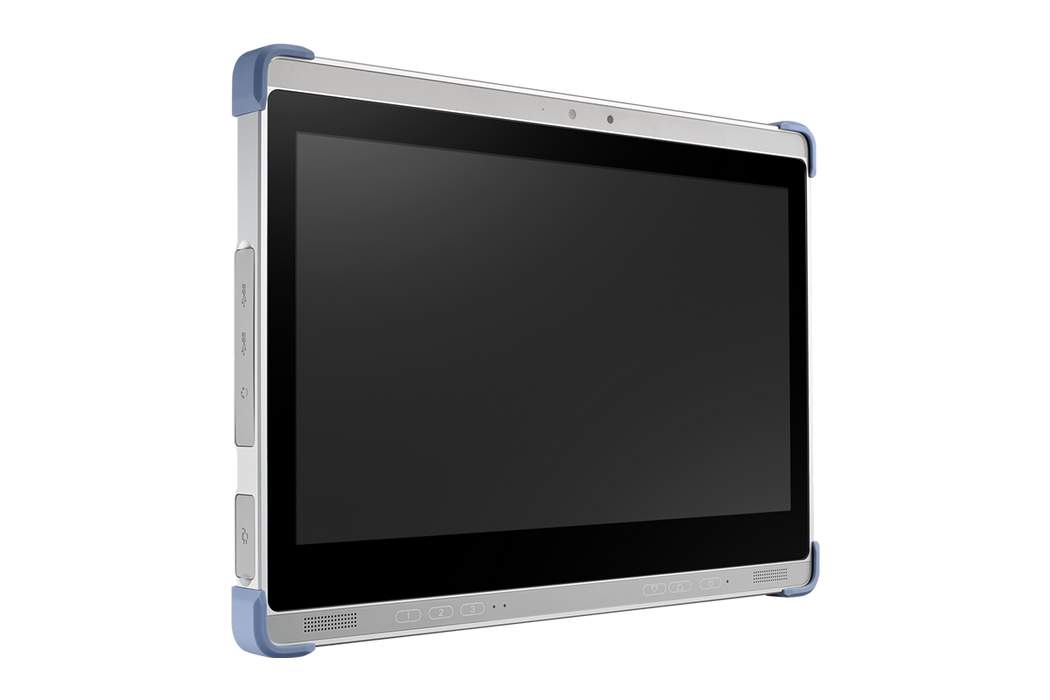

AIM-89H i5-1145G7E/8G/256G/Win10

13.?3" Full-HD IPS projected capacitive 10-point multi-touchscreen with anti-fingerprint, anti-glare Corning® Gorilla® GlassIntel® Core™ i5 processor support on Windows 10/11 IoT Enterprise for high performanceEN/UL 60601 certification, ensuring patient and medical staff safety by protecting against excessive heat and electronic interferenceEquipped with DeviceOn - iService Suite software for remote device managementSupports touch mode with gloved operation and an active stylus pen IP65-rated protection from water and dust ingressMIL-STD-810G Shock/Vibration compliance with 4-ft drop toleranceBuilt-in Wi-Fi 6, Bluetooth 5.?2, and Gigabit LAN for high speed connectivity16-pin pogo connector for Desk Docking Stations and VESA Mount Bracket

Audio - Audio Jack: 1 x Audio combo jack (combines stereo audio output and mono microphone input) | Audio - Speaker: 2 W x 2 | Camera - FRONT: 5 megapixel fixed-focus camera | Camera - Rear: 8 megapixel auto-focus camera with LED flash | Certification - a202y0000012iH8: FCC, CE, UKCA, IEC/EN/UL60601-1, EN 60601-1-2, ENGERY Star, WEEE | Communications - Bluetooth: Bluetooth® v5.2 | Communications - WLAN: IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6) | Computing System - Operating System: Windows 10 LTSC 21H2 | Connectivity - Docking: 1 x AIM docking 16-pin pogo connector: 1 x USB 3.1 Gen 2 | Connectivity - Standard I/O: "1 x Gigabit LAN, 1 x HDMI, 2 x USB-A 3.1 Gen 2, 1 x Audio Jack, 1 x 19 VDC-in jack, 1 x USB-C 3.1 Gen 2 (10Gb/s, HDMI Alt, 5V, 2A)" | Control Buttons - Control Buttons: 1 x Power button, 2 x Volume key (up/down), 3 x Programmable button | Display - Brightness (cd/m2): 400cd/m2 | Display - Glass Type: Corning® Gorilla® Glass 3 (Anti-Fingerprint, Anti-Glare) | Display - Resolution: 1920 x 1080 | Display - Touch Mode: Normal (support under water puddle), Glove | Display - Touch Screen: Corning® Gorilla® Glass 3 with 10-point P-CAP touch control | Display - Touch Type: 10-point multi-touch P-CAP touch control | Display - Type: 13.3" IPS LCD | Environment - Drop: MIL-STD-810G standard, Up to 122 cm (4 ft) onto plywood over concrete | Environment - Humidity: Operating: 90% @ 40 °C non-condensing Storage: 95% @ 45 °C non-condensing Package: 95% @ 60 °C non-condensing" | Environment - IP Rating: IP65 | Environment - Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F)/ Discharging: 0 ~ 40° C (32 ~ 104 °F)/ Charging: 0 ~ 35 °C (32 ~ 95 °F)" | Environment - Shock/Vibration: MIL-STD-810G standard | Environment - Storage Temperature: -20 ~ 60 °C/-4 ~ 140 °F | I/O - Buttons: 1 x Power button, 2 x Volume key (up/down), 3 x Programmable button | I/O - Docking: 1 x AIM docking 16-pin pogo connector: 1 x USB 3.1 Gen 2 | I/O - STANDARD I/O PORT: 1 x Gigabit LAN, 1 x HDMI, 2 x USB-A 3.1 Gen 2, 1 x Audio Jack, 1 x 19 VDC-in jack, 1 x USB-C 3.1 Gen 2 (10Gb/s, HDMI Alt, 5V, 2A) | Mechanical - Dimensions (W x H x D): 330 x 240 x 20.8 mm (13 x 9.4 x 0.8 in) | Mechanical - Weight: 1.8 kg (3.97 lb) | Physical Characteristics - Color: White/Blue | Physical Characteristics - Dimensions (W x D x H): 330 x 240 x 20.8 mm (13" x 9.4" x 0.8") | Physical Characteristics - Weight: 1.8 kgs (3.97 lbs) | Power System - Battery: "Embedded Lithium-ion battery; 10.8V, 4660 mAh, 50.32 WHr Operating time: Up to 4.5 hours (depending on usage scenario) Charging time: < 3 hours" | Power System - Voltage Input: DC jack: 19V/4.74A (90W) | Sensors - Sensors: Ambient Light Sensor, G-sensor, Gyroscope | Storage - SSD: 1 x m.2 SSD (128 GB) | System - Memory: 8GB DDR4 | System - OS: Windows 10 IoT Enterprise (Windows 11/Linux OS optional) | System - Processor: Intel® Core™ i5-1145G7E Processor quad-core, 1.5 GHz (8M Cache, up to 4.10 GHz) | System Indicator - System Indicator: Full: green (90-100%); Charging: blue; Low: red (<10%) | Wireless Communication - WLAN/Bluetooth: IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6) / Bluetooth® v5.2

• Model: AIM-89H-100100
