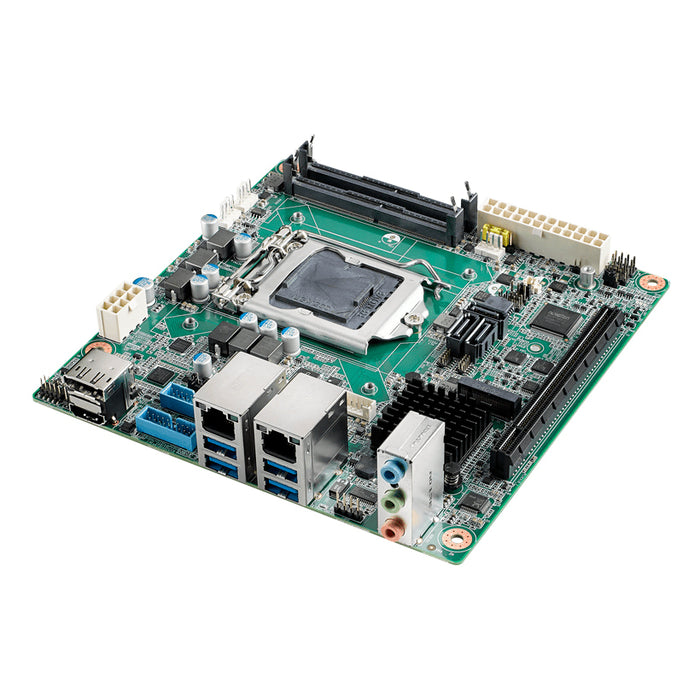

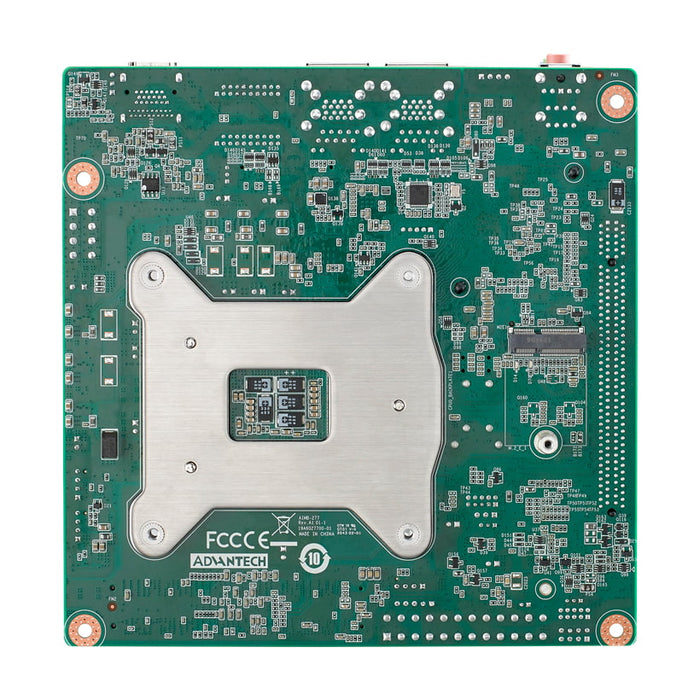

CONTACT ADVANTECH FOR PRICING - miniITX LGA1200 DP/HDMI/VGA/PCIex16/2GbE, RoHS

Supports 10th Generation Intel® Core™ i processor (LGA1200) with Intel Q470E chipsetTwo 260-pin SO-DIMM up to 64GB DDR4 2933 MHz SDRAMSupports triple display of HDMI 2.?0a/DP++/VGA/LVDS( or eDP)Supports PCIe x16 (Gen 3), 1x M.?2 M key + 1x M.2 E key, 4x USB 3.2 Gen2 + 4x USB 3.2 Gen1, and 4x SATA IIISupports Intel vPro, AMT, Software RAID 0,1,5,10, TPM 2.?0, 3.2W AmplifierSupports ATX powerSupport Windows 10 LTSC & Ubuntu 20.?04 LTS; SUSI API and WISE-DeviceOn

Audio - Audio Interface: HD Audio | Audio - CODEC: Realtek ALC888S | Audio - Connector: 3 (Line-in, Line out, Mic-in) | Certification - EMC: CE/FCC Class B | Display - DDI (HDMI/DVI/DisplayPort): HDMI: 4096x2160@60Hz / DP++: 4096x2304@60Hz | Display - Graphic Engine: Intel HD Graphic | Display - LVDS: N/A | Display - Multiple Display: Triple | Display - VGA: N/A | Display - Video Interface: HDMI+DP+VGA, HDMI+DP+LVDS (or eDP), HDMI+VGA+LVDS (or eDP), DP+VGA+LVDs (or eDP) | Environment - Non-Operational Temperature: -40~ 85° C | Environment - Operational Temperature: 0 ~ 60° C (32 ~ 140° F) | Environment - Vibration Resistance: 3.5 Grms (non OP) | Ethernet - Connector: RJ45 x 2 | Ethernet - Controller: GbE1: Intel I219LM, GbE2: Intel I211 | Ethernet - Speed: 10/ 100/ 1000 Mbps | Expansion - PCI Express x 16: 1 | Expansion - Slot Type: 1 x M.2 M key (Type: 2280), 1 x M.2 E key,(Type: 2230) | Expansion - Slots: 1 x M.2 B key + 1 x M.2 E key, 1 x PCIex16 | I/O - COM Port: 2xRS-232/422/485 | I/O - GPIO: 8-bit GPIO | I/O - TPM: 0 | I/O - USB3.0: 8 | Memory - Max. Capacity: 64GB (up to 32GB per SO-DIMM) | Memory - Socket: 2 x 260 Pin DDR4 SO-DIMM | Memory - Technology: DDR4 2933MHz SO-SIMM | Operating System - Microsoft Windows: Windows 10 (64-bit) | Operating System - Ubuntu: V | Others - TPM: None | Physical - Construction: with CPU cooler design | Physical - Dimension (mm): 170x 170 mm (without heatsink) | Physical - Weight: 1.04 kg (1.72 lb), weight of total package | Power - Connector: ATX 24-pin + 8-pin ATX12V | Power - Power Type: ATX | Processor - BIOS: AMI EFI 256 Mbit | Processor - Chipset: Intel Q470E | Processor - Core Number: 10/8/6/4/2 | Processor - CPU: Intel® 10th generation Core™ I processor/Pentium®/Celeron® (LGA1200) | Processor - CPU TDP: 65W / 35W | Processor - Frequency: 2.1~3.7 GHz | Processor - L3 Cache: 20MB/ 20MB /16MB/ 12MB/ 6MB/ 2MB | Storage - SATA: 3 x SATAIII | Watchdog Timer - WatchDog Timer: Yes

• Model: AIMB-277G2-00A1E
