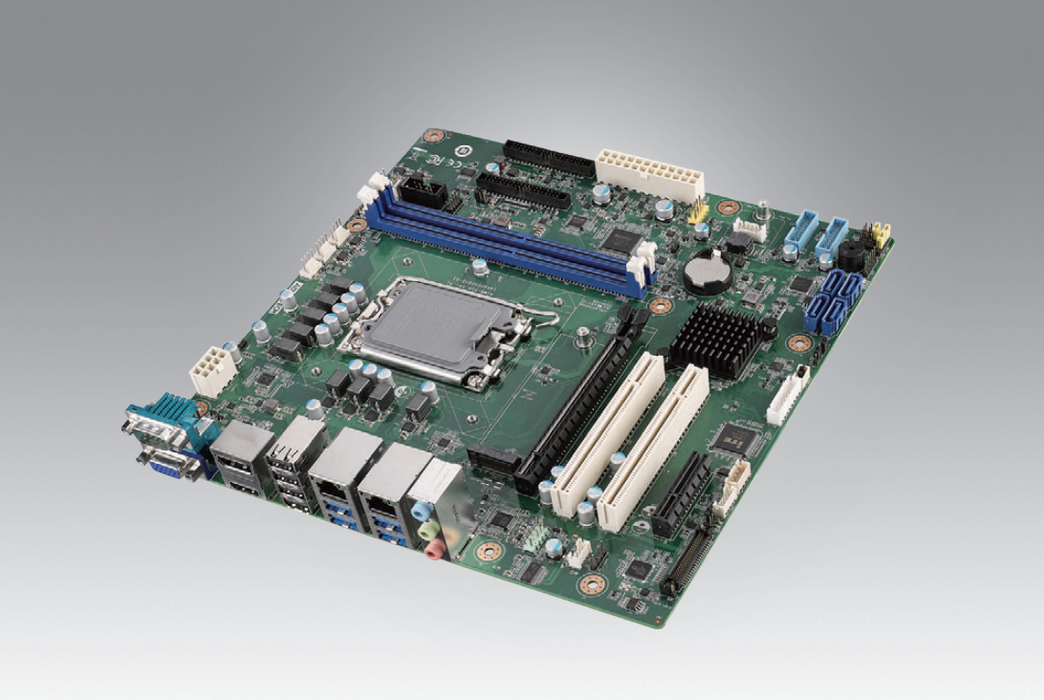

AIMB-508HF-EAA1 MicroATX motherboard supports Intel® 12th/13th/14th Gen Core™ processors, up to 64 GB DDR4 memory, triple independent displays (HDMI, DP++, VGA), dual LAN, 6 COM ports, and TPM 2.0. Ideal for industrial and embedded computing.

Model:

AIMB-508HF-EAA1

Application:

Industrial automation, embedded computing, kiosks, smart manufacturing

Features:

• Processor Support: Intel® 12th/13th/14th Gen Core™ i (up to 24 cores, 5.2GHz, 65W/35W TDP)

• Chipset: Intel® H610E

• Form Factor: MicroATX

• Memory: Dual Channel DDR4 3200MHz, up to 64 GB (2 x 288-pin DIMM)

• Graphics: Intel UHD Graphics with HDMI (4096x2160@60Hz), DP++ (4096x2304@60Hz), VGA, and eDP (3840x2160@60Hz)

• Display Support: Dual/Triple independent display

• Expansion Slots: 1 x PCIe x16, 1 x PCIe x4

• Storage: 4 x SATA III (600MB/s), no RAID

• Networking: Dual LAN – Intel i219V + Intel i226V, RJ45

• I/O Ports:

  • USB: 4 x USB 3.2, 6 x USB 2.0

  • Serial: 5 x RS232, 1 x RS232/422/485

  • GPIO: 8-bit

• TPM: TPM 2.0 onboard

• Smart Fan: Yes

• Power: 24-pin ATX

• Temperature:

  • Operating: 0 ~ 60°C

  • Storage: -40 ~ 85°C

• Vibration Resistance: 3.5 Grms

• OS Support: Windows 10, Linux

• Certifications: CE, FCC

• Dimensions: 244 x 244 mm

• Weight: 1.2 kg
