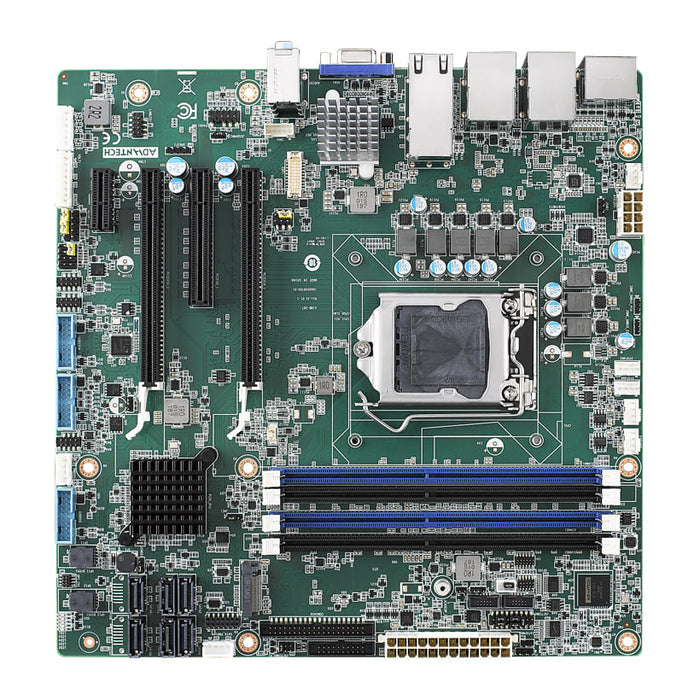

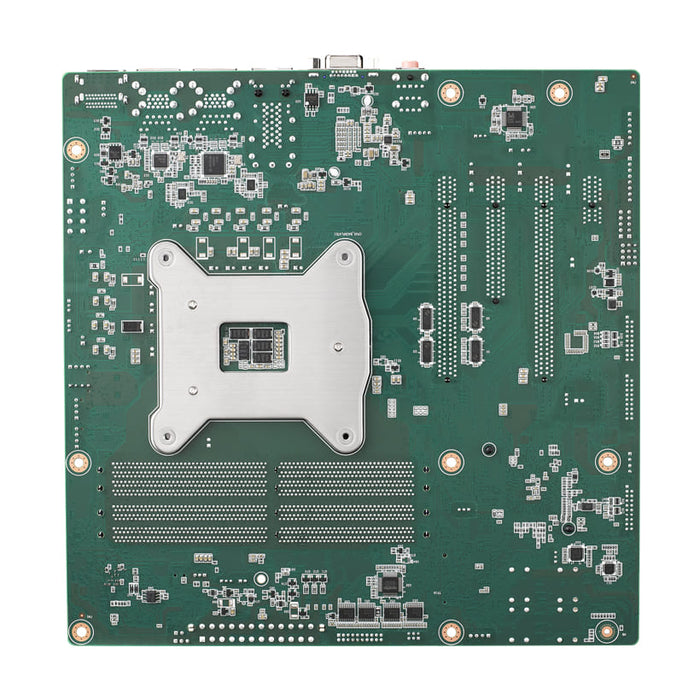

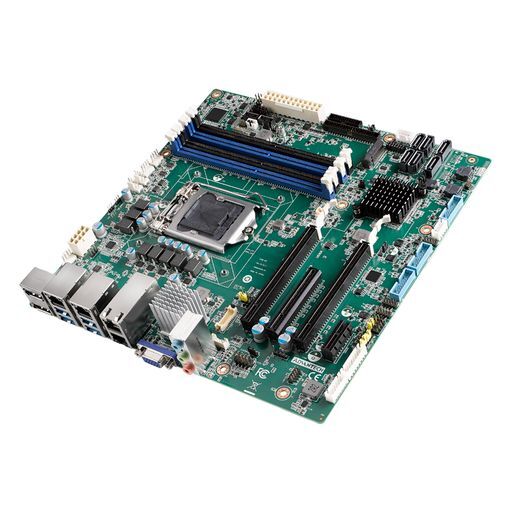

LGA1200 mATX 2DP/6SATA/6COM/12USB/2GbE/Q470E

Supports Intel® 10th Gen Xeon/Core™ (Comet Lake-S) i9/i7/i5/i3 processor with Q470E/ W480E/ H420E chipsetFour U-DIMM sockets support up to 128GB DDR4 2666/2933 MHz SDRAMSupports 2 DP++, VGA(option), eDP display with Triple Display supportSupports Intel AMT 12.?0 and Intel vPro competentSupports PCIE Gen3, Dual 10 GbE LAN, Dual GbE LAN, M.?2(M-key) and up to 8 x SATAIIISupports 4 USB3.2 Gen2, 6 USB3.1 Gen1 and 6 USB2.0Supports SUSI,Ubuntu 20.?04 LTS, WISE-DeviceOn and Edge AI Suite

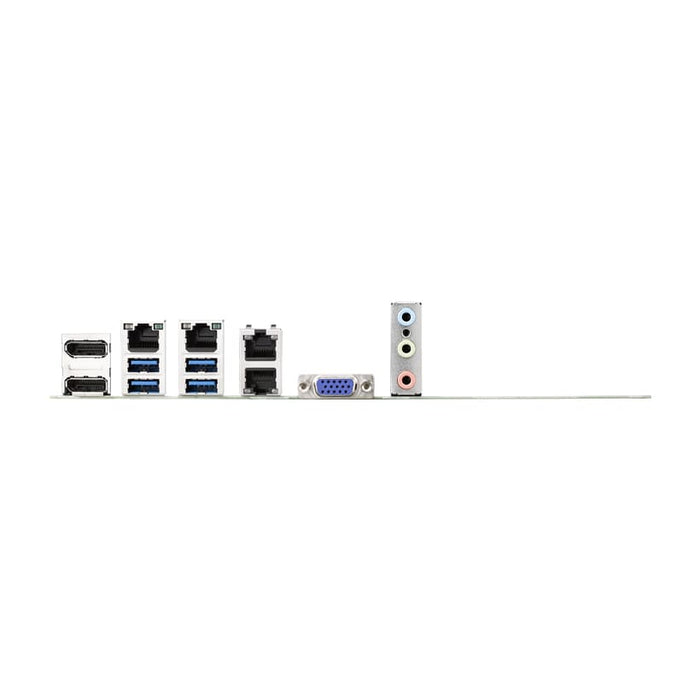

Audio - Audio Interface: HD Audio | Audio - CODEC: Realtek ALC888S, High Definition Audio (HD) | Audio - Connector: 2 (Line out, Mic-in) | Certification - EMC: CE, FCC | Display - Controller: Intel HD Graphics | Display - DDI (HDMI/DVI/DisplayPort): HDMI: upto 4096x2160@60Hz ; DP:3840x2160@60Hz | Display - Graphic Engine: DirectX 11.2, OpenGL 5.0, OpenCL 2.1 | Display - Graphic Memory: 1GB maximum shared memory with 2GB and above system memory installed | Display - LCD (TTL/LVDS/eDP): eDP: support to 3840 x 2160 @ 60 Hz | Display - Multiple Display: Dual/ Triple | Environment - Non-Operational Temperature: -40 ~ 85° C and 60° C @ 95% RH Non-Condensing | Environment - Operational Temperature: 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) | Environment - Vibration Resistance: 3.5 Grm (Non-Operation Mode) | Ethernet - Connector: RJ45 x 2 | Ethernet - Controller: GbE1: Intel i219LM; GbE2: Intel i210 | Ethernet - Speed: 10/ 100/ 1000 Mbps | Expansion - PCI Express x 1: 1 | Expansion - PCI Express x 16: 1 | Expansion - PCI Express x 4: 1 | Expansion - PCI Express x 8: option | Expansion - SMBus: 1 | Form Factor - Form Factor: Micro ATX | I/O - COM Port: 6 ( 5 x RS232, 1 x RS232/ 422/ 485) | I/O - GPIO: 16-bit GPIO | I/O - Keypad: 1 | I/O - Smart Fan: 5 | I/O - TPM: Optional | I/O - USB2.0: 6 | I/O - USB3.0: 6 | Memory - ECC Support: N/A | Memory - Max. Capacity: 128GB | Memory - Socket: 4 x 288-pin DIMM | Memory - Technology: Dual Channel DDR4, 2400/2666MHz ECC/Non-ECC with 288 pin U-DIMM | Operating System - Linux: Yes | Operating System - Microsoft Windows: Yes | Operating System - SUSIAccess: Yes | Operating System - Ubuntu: V | Physical - Dimension (mm): 244 x 244 mm | Physical - Weight: 1.2 kg (2.64 lb), weight of total package | Power - Battery: Lithium 3 V / 200 mAh | Power - Connector: ATX24P | Power - Power Consumption (Full Load): 3.66A @ 5V / 1.05A @ 3.3V / 6.02A @12V / 0.29A @ 5Vsb / 0A @ -12V /2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V | Power - Power Type: ATX | Processor - BIOS: AMI EFI 128Mbit | Processor - Chipset: Intel Q470E | Processor - Core Number: 10/8/6/4/2 | Processor - CPU TDP: 65W / 35W | Processor - Frequency: 2.2GHz ~ 3.8GHz | Processor - L3 Cache: 2 ~ 8MB | Storage - RAID: Software RAID 0, 1, 5, 10 | Storage - SATA: 6 x SATAIII (Max. Data Transfer Rate 600 MB/s) | Watchdog Timer - WatchDog Timer: Yes

• Model: AIMB-587QG2-00A1E
