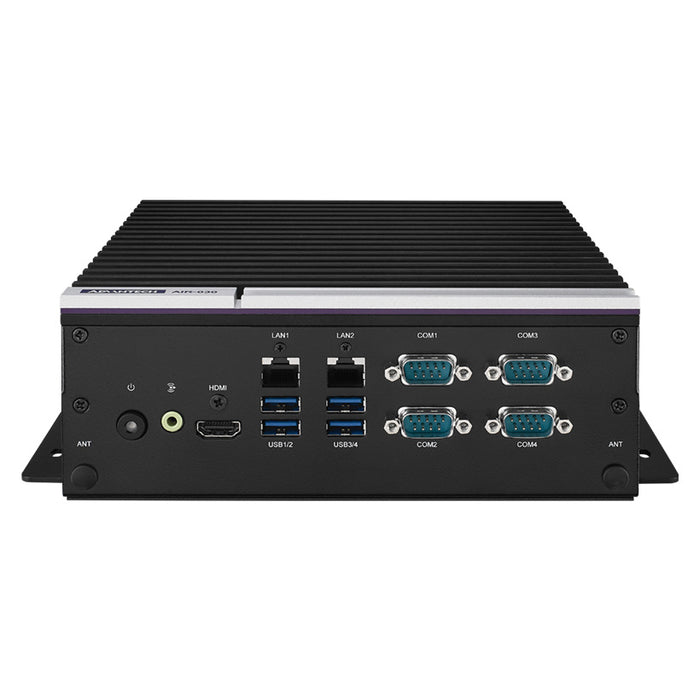

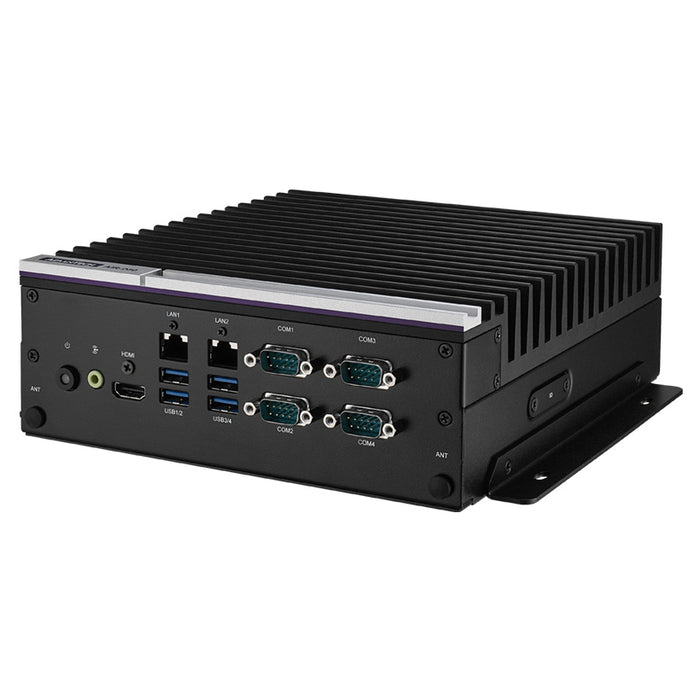

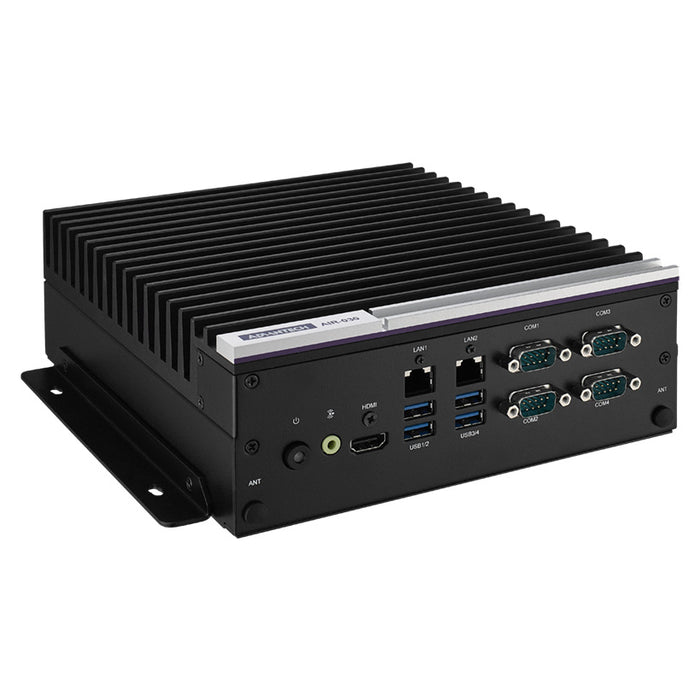

Edge AI NVIDIA® Jetson AGX Orin™ 64G inference system

Compact and high performance AI boxNVIDIA® Jetson AGX Orin™ 64GB and 32GB Modules9~36V wide power and -10~60 °C wide temp. supportedMultiple IO ports: LAN, DIO, COM, CANBus, USB 3.?2 and USB type CVersatile expansions with M.?2 B key, M.2 E key, SD, PCIe x16(optional) supportSupport Linux Ubuntu 20.?04 LTS and JetPack SDK 5.1 and aboveIEC 61000-6-4 Heavy Industry CertificateCertified by AWS Greengrass

Certification - Safety Certifications: UL, CB | Certifications - EMC: CE, FCC Class B, CCC, BSMI | Display - HDMI: 1 | Display - Max. Resolution: 3840 x 2160 @ 60Hz | Environment - Operating Temperature: -10 ~ 60 °C with 0.7 m/s air flow | Environment - Relative Humidity: 95% @ 40° C (non-condensing) | Environment - Vibration: 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis | Ethernet - Connector: RJ45 x 3 | Ethernet - Controller: 3 x Intel I225-LM | Ethernet - Speed: Up to 2.5GbE | Expansion - M.2: 1 x B key (Type: 2280, 3042) + 1 x E Key (Type: 2230) | Expansion - PCI Express x 16: Optional | Expansion - SD Socket: 1 SD card slot | I/O - Audio: 1x Line-out | I/O - CANBus: 2 | I/O - COM Port: 4 (4 x RS232/ 422/ 485) | I/O - Digital I/O: 16 bit DIO | I/O - OTG USB: 1 x Micro USB (for system recovery only) | I/O - USB: 4 x USB 3.2 Type A, 1 x USB 3.2 Type C, 2 x internal USB 2.0 for security dongle | Internal Connectors - Camera Input: 2 x 2-LANE MIPI-CS (internal) | Mechanical - Dimensions: 200 x 220 x 74 mm | Mechanical - Weight: 3.63 kg | Operating System - Linux: Ubuntu 20.04 | Operating System - SUSI: Yes | Others - TPM: TPM 2.0 built in | Power - Input Voltage: 9 ~ 36 VDC | Power - Power Type: AT/ ATX | Processor - AI Performance Reference: Up to 275 Sparse TOPS (INT8) | Processor - Core Number: 12 | Processor - CPU: NVIDIA Arm® Cortex A78AE v8.2 | Processor - Flash: 64GB eMMC | Processor - GPU: 2048 NVIDIA® CUDA® cores and 64 Tensor cores | Processor - Memory: 64 GB | Processor - TDP: 15 ~ 60W

• Model: AIR-030-S30A1
• Contact Us: +91 96993 71392
• Email: sales@elationind.com
• Worldwide Shipping Available
