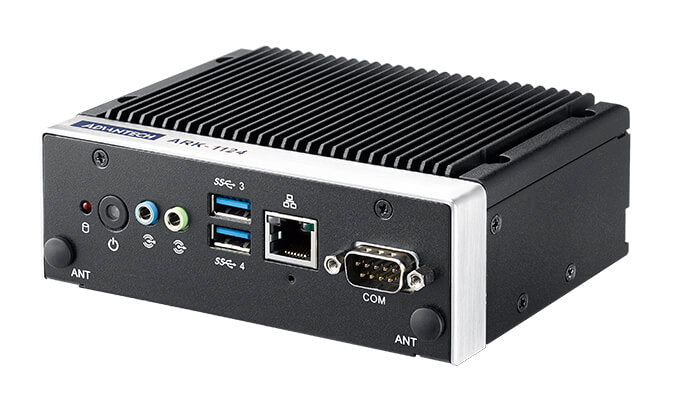

Intel Atom E3940 F1 QC 1.6GHz 2HDMI 62368 adp.

Intel Atom E3940 Quad Core SoCDual HDMI independent display support 4k2k resolution1 x M.?2 E Key for WIFI moduleTPM built in for well security-20 ~ 60 °C extended operating temperatureOptional 12~24V power module (Dual Layer)Advantech iDoor module compatible (Dual Layer)Advantech WISE-DeviceOn supportRED certification for WiFi/BT is available with AMO-WIFI10 in single layer SKU

Audio - Main System: Realtek ALC888S, High Definition Audio. Line-out, Line-in | Certification - EMC: CE/FCC Class B, CCC, BSMI | Certification - Safety Certifications: UL 62368, CB 62368, CCC, BSMI | Environment - Operational Temperature: With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow, With 2.5-inch hard disk 0 ~ 40 °C (32 ~ 104 °F) with 0.7m/s air flow | Environment - Relative Humidity: 95% @ 40° C (non-condensing) | Environment - Shock During Operation: With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration; With HDD: 10G, IEC 60068-2-27, half sine, 11 ms duration | Environment - Storage Temperature: -40 ~ 85° C (-40 ~ 185° F) | Environment - Vibration During Operation: With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis; With HDD: 0.5Grms, IEC 60068-2-64, random, 5~500Hz, 3 axes, 1hr/axis | Ethernet - Controller: 2 | Ethernet - LAN1: 10/100/1000 Mbps Intel i210 GbE, support Wake On Lan | Ethernet - LAN2: 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN | Expansion - iDoor Module: 1, optional (2nd layer) | Expansion - M.2: 1 | Expansion - Mini PCI Express: 1 | Expansion - Mini PCIe #1: 1 x full-size mPCIe for WLAN/WWAN with nano SIM holder | Graphics - Chipset: Intel® HD Graphics 500 | Graphics - Dual Display: Yes, HDMI + HDMI, dual display support 4K2K resolution | Graphics - Graphic Engine: 4K Codec Decode& Encode for H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP8, JPEG / MJPEG | Graphics - HDMI: 1 | I/O Interface - Serial: 1 | I/O Interface - Serial Port: 1 x RS-232/422/485 port with auto flow control | I/O Interface - USB Interface: 4 x USB 3.0 | I/O Interface - USB3.0: 4 | Mechanical - Construction: Aluminum housing | Mechanical - Dimensions: 133 x 46.4 x 94.2mm (5.24" x 1.83" x 3.71") | Mechanical - Mounting: DIN-Rail/Wall/VESA Mounting Kits (Optional) | Mechanical - Weight: 0.7 kg (1.55 lb) | Memory - ECC Support: No | Memory - Max. Capacity: 8 GB | Memory - Socket: 1 x 204-pin SO-DIMM | Memory - Technology: DDR3L 1866 MHz | Others - TPM: Infineon SLB9665XQ 2.0 | Others - Watchdog timer: 255 levels timer interval, setup by software | Power - Consumption: Typical 6.02W, Max. 15.7W | Power - Input Voltage: 12 VDC | Power - Power Adaptor: AC to DC, DC12 V/5 A, 60 W with lockable DC Jack | Power - Power Type: AT/ATX | Power Consumption - Max.: 15.7W | Power Consumption - Typical: 6.02W | Processor - BIOS: AMI EFI 64 Mbit | Processor - Core Number: 4 | Processor - CPU: Intel Atom™ E3940 Quad Core SoC | Processor - Frequency: 1.6 GHz, turbo burst 1.8GHz | Processor - L2 Cache: 2 MB | Software Support - Linux: Support by project | Software Support - Microsoft Windows: Windows 10 | Storage - 2.5" HDD/SSD: 1 x 2.5” SATA HDD Bay (Max Height 9.5mm) | Storage - mSATA: 1x Half-size

• Model: ARK-1124H-S6A3
