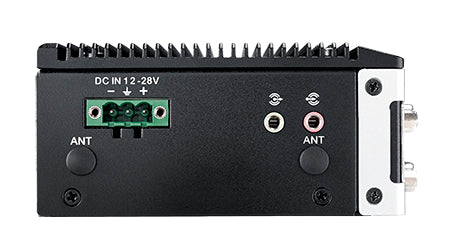

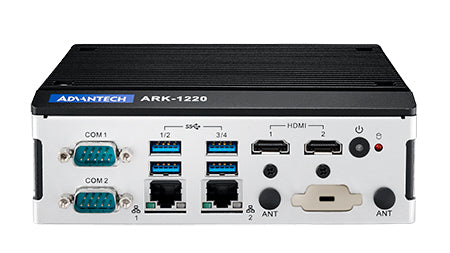

Intel Atom E3940 F1 QC 1.6GHz 2*HDMI+2*GbE+4*USB

Intel Atom E3940 Quad Core SoC turbo burst up to 1.?8 GHzDIN-Rail system with essential I/O ports on front-side bezel2 x Intel GbE and 4 x USB 3.?0Dual HDMI display up to 4K resolution1 x full-size mPCIe with SIM holder and 1 x M.?2 2230 for WIFI1 x 2.?5” SATA III SSD and 1 x full-size mSATA*12V ~ 28V wide range power inputAdvantech WISE-PaaS supportNo RED Certification

Audio - Main System: Realtek ALC888S, High Definition Audio, Line-out, Mic-in | Certification - EMC: CE/FCC Class B, CCC, BSMI | Certification - Safety Certifications: UL, CB, CCC, BSMI | Environment - Operational Temperature: With extended temp. peripherals: -30 ~ 70 C (-22 ~ 158F) w/ turbo burst off with 0.7 m/s air flow; With 2.5 inch hard disk: 0 ~ 40 °C (32 ~ 104°F) with 0.7 m/s air flow | Environment - Relative Humidity: 95% @ 40° C (non-condensing) | Environment - Shock During Operation: With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration | Environment - Storage Temperature: -40 ~ 85° C (-40 ~ 185° F) | Environment - Vibration During Operation: With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | Ethernet - Controller: 2 | Ethernet - LAN1: 10/100/1000 Mbps Intel i210 GbE, support Wake On Lan | Ethernet - LAN2: 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN | Expansion - M.2: 1 | Expansion - Mini PCI Express: 1 | Expansion - Mini PCIe #1: 1 x Full-size mPCIe with SIM holder | Graphics - Chipset: Intel HD Graphics 500, CPU integrated | Graphics - Dual Display: HDMI1 + HDMI2 | Graphics - Graphic Engine: Gen9 Low Power; 18 Execution Units Media Codec Supported: H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP8, JPEG / MJPEG, 3D HW Acceleration: OpenGL 4.4, DirectX* 12, OpenCL* 2.0 | Graphics - HDMI: 2 | I/O Interface - GPIO: 8-bit | I/O Interface - Serial: 2 | I/O Interface - Serial Port: 2 x RS-232/422/485 with auto flow control, COM2 with 5V/12V power supply | I/O Interface - USB Interface: 4 x USB 3.0 | I/O Interface - USB3.0: 4 | Mechanical - Construction: Aluminum housing | Mechanical - Dimensions: 53.5 x 158 x 114 mm (2.11" x 6.22" x 4.49") | Mechanical - Mounting: DIN-rail/Wall Mount | Mechanical - Weight: 0.9kg | Memory - ECC Support: No | Memory - Max. Capacity: 8 GB | Memory - Socket: 2 x 204-pin SO-DIMM, 2 x 4GB or 1 x 8GB memory | Memory - Technology: DDR3L 1600 MHz | Operating System - Ubuntu: V | Others - TPM: By Project | Others - Watchdog timer: 255 levels timer interval, setup by software | Power - Consumption: TBD | Power - Input Voltage: 12 ~ 28 VDC | Power - Power Adaptor: AC to DC, 60W (Optional) | Power - Power Type: AT/ATX | Processor - BIOS: AMI EFI 64 Mbit | Processor - Core Number: 4 | Processor - CPU: Intel Atom E3940 Quad Core Soc | Processor - Frequency: 1.6 GHz, turbo burst 1.8GHz | Software Support - Microsoft Windows: Windows 10 | Storage - 2.5" HDD/SSD: 1 x 2.5" SATAIII Drive bay (compatible with 15mm height) | Storage - mSATA: 1 x Full-size mSATA (*share with mPCIe slot)

• Model: ARK-1220L-S6A2
