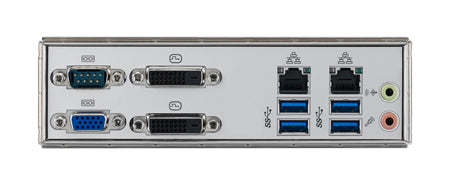

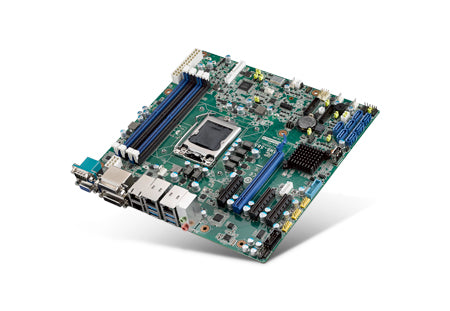

LGA 1151 uATX Server Board w/4 PCIe+2 lan ports

Supports LGA 1151 Intel® Xeon® E3-1200 v5/v6 and 6th/7th generation Core™ i7/i5/i3 processorsDDR4 ECC/non-ECC 2400/2133/1866/1600 MHz DIMM up to 64GBOne PCIe x16 slot (Gen3 x16 link), three PCIe x4 slots (2 Gen3 x4 link, 1 Gen3 x1 link)Triple display - two DVI-D and one VGA portsSupports up to ten RS-232 or six RS-232 and four RS-422/485 portsRackmount optimized placement with positive air flow design0 ~ 60 °C ambient operation temperature range

Certification - EMC: CE/FCC | Display - Controller: Intel HD graphics Integrated | Display - Display Interface: VGA: Up to 1920 x 1200 DVI-D: Up to 1920 x 1200 | Display - Graphic Memory: Share system memory up to 1 GB with 2 GB and above memory installed | Display - Multiple Display: Triple | Environment - Non-Operating Vibration: 3.5 Grms | Environment - Non-Operational Temperature: -40 ~ 85° C @ 95% RH Non-Condensing | Environment - Operating-Temperature: 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) | Ethernet - Connector: 2 x RJ45 | Ethernet - Controller: 1 x Intel I219-LM + 1 x Intel I210-AT | Ethernet - Speed: 10/100/1000 Mbps | Expansion Interface - LPC: 1 | Expansion Interface - PCI: 0 | Expansion Interface - PCI Express x 1: 1 | Expansion Interface - PCI Express x 16: 1 | Expansion Interface - PCI Express x 4: 2 | Expansion Interface - PCI Express x 8: - | Expansion Interface - PME: - | Expansion Interface - SMBus: 1 | Form Factor - Form Factor: Micro ATX | I/O - COM Port: 5 x RS-232 | I/O - GPIO: 8-bit | I/O - LPT: 0 | I/O - PS/2 Keyboard/Mouse: 1 | I/O - SAS controller: - | I/O - SAS Port: - | I/O - SATA: 7 x SATA III (RAID 0, 1, 5, 10) | I/O - System Fan: 4 | I/O - USB2.0: 7 | I/O - USB3.0: 2 | Management Solution - Out of band remote management: - | Management Solution - Software: SUSIAccess | Memory - Capacity: Up to 64 GB (16 GB per DIMM) | Memory - ECC Support: Yes | Memory - REG Support: - | Memory - Socket: 4 x 288-pin UDIMM | Memory - Technology: Dual Channel DDR4 ECC/Non-ECC 1600/1866/2133/2400 MHz | Physical Characteristics - Dimensions (LxW): 244 x 244 mm (9.6" x 9.6") | Physical Characteristics - Weight: 0.5 kg | Power Requirement - Voltage: +12 V/+5 V/+3.3 V/+5 VSB/V12_8P/-12 V/ Total | Processor System - BIOS: AMI 128 Mbit SPI (UEFI) | Processor System - Chipset: Intel C236 PCH | Processor System - Core Number: Up to 4 cores | Processor System - CPU: Intel LGA1151 Xeon E3-1200 v5/v6 and 6th/7th Gen Core i3/i5/i7 series | Processor System - CPU TDP: Up to 91W | Processor System - DMI: - | Processor System - Frequency: Up to 3.8 GHz | Processor System - Integrated Graphics: - | Processor System - L3 Cache: Up to 8MB | Processor System - QPI: - | Rear I/O Interface - COM: 1 (1 x RS232) | Rear I/O Interface - DVI: 2 | Rear I/O Interface - Ethernet: 2 | Rear I/O Interface - PS/2: - | Rear I/O Interface - USB3.0: 4 | Rear I/O Interface - VGA: 1 | Watchdog Timer - Interval: Programmable 1~255 sec | Watchdog Timer - Output: System Reset

• Model: ASMB-585G2-00A1E
