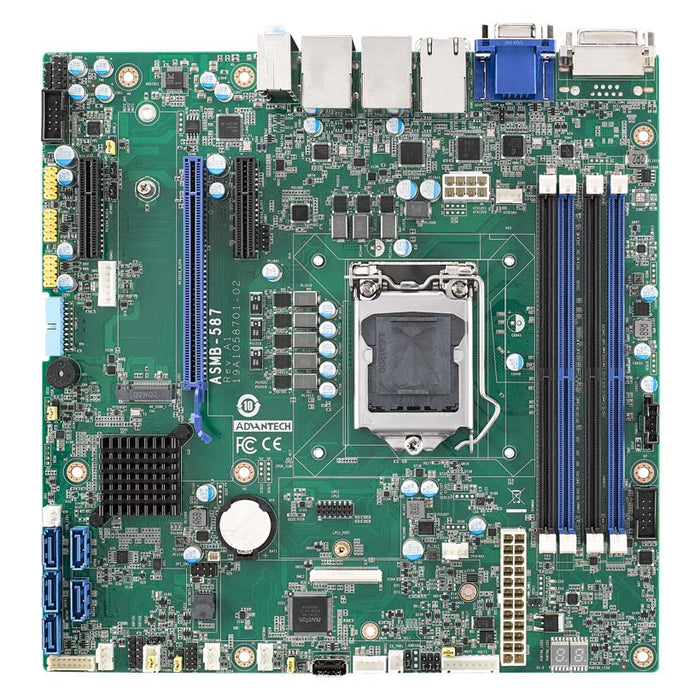

LGA 1200 uATX Server Board W480E GbEx4

LGA 1200 Intel® Xeon® W and 10th Gen. Core™ i9/i7/i5/i3 processor with W480E chipsetDDR4 ECC/Non-ECC 2933/2666/2400 MHz UDIMM up to 128 GBOne PCIe x16 and 2 x PCIe x4 slotsTriple displays - DVI-D, VGA, and HDMI 2.?0 portsFive SATA 3 ports and six USB 3.?2 portsOne M.?2 22110/2280 (SATA / PCIe compatible)0 ~ 60 °C (32 ~ 140 °F) ambient operating temperature range

Certification - EMC: CE/FCC | Display - Controller: Intel HD graphics Integrated | Display - Display Interface: VGA: Up to 1920 x 1200 , DVI-D: Up to 1920 x 1200, HDMI: Up to 2K/4K | Display - Graphic Memory: Share system memory up to 1 GB with 2 GB and above memory installed | Display - Multiple Display: Triple | Environment - Non-Operating Vibration: 3.5 Grms | Environment - Non-Operational Temperature: -40~ 85° C and 60° C @ 95% RH Non-Condensing | Environment - Operating-Temperature: 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) | Ethernet - Connector: 4 x RJ45 | Ethernet - Controller: 1 x Intel I219-LM + 3 x Intel I210-AT | Ethernet - Speed: 10/100/1000 Mbps | Expansion - M.2: 1 x 22110/2280 (SATA / PCIe) | Expansion Interface - eSPI: - | Expansion Interface - LPC: 1 | Expansion Interface - PCI: - | Expansion Interface - PCI Express x 1: - | Expansion Interface - PCI Express x 16: 1 | Expansion Interface - PCI Express x 4: 2 | Expansion Interface - PCI Express x 8: - | Expansion Interface - SMBus: 1 | Form Factor - Form Factor: Micro ATX | I/O - COM Port: 2 x RS-232 | I/O - GPIO: 8-bit | I/O - LPT: - | I/O - PS/2 Keyboard/Mouse: - | I/O - SAS controller: - | I/O - SAS Port: - | I/O - SATA: 5 x SATAIII (RAID 0,1,5,10) | I/O - SPDIF: 1 | I/O - System Fan: 5 | I/O - USB2.0: 7 | I/O - USB3.0: 6 | Management Solution - Out of band remote management: Optional (IPMI-2000) / AMT | Management Solution - Software: SUSIAccess (Optional) | Memory - Capacity: Up to 128 GB (32 GB per DIMM) | Memory - ECC Support: Yes | Memory - Memory channels: Dual Channel DDR4 ECC/Non-ECC 2933/2666/2400 MHz | Memory - REG Support: - | Memory - Socket: 4 x 288-pin UDIMM | Memory - Technology: Dual Channel DDR4 ECC/Non-ECC 2400/2666/2933 MHz | Memory - Type: UDIMM | Physical Characteristics - Dimensions (LxW): 244 x 244 mm (9.6" x 9.6") | Physical Characteristics - Weight: 0.5 kg | Power Requirement - Voltage: +12 V/+5 V/+3.3 V/+5 VSB/V12_8P/-12 V/ Total | Processor System - BIOS: AMI SPI 256 Mbit | Processor System - Chipset: Intel W480E | Processor System - Core Number: Up to 10 cores | Processor System - CPU: Intel® Xeon® W and 10th Gen. Core™ i9/i7/i5/i3 processors (LGA 1200 socket) | Processor System - CPU TDP: Up to 125W | Processor System - DMI: Gen3 x4 | Processor System - Frequency: Up to 3.7 GHz | Processor System - Integrated Graphics: Yes | Processor System - L3 Cache: up to 20MB | Rear I/O Interface - COM: 1 (1 x RS232) | Rear I/O Interface - DVI: 1 | Rear I/O Interface - Ethernet: 4 | Rear I/O Interface - PS/2: 1 | Rear I/O Interface - USB3.2 Gen 2: 4 | Rear I/O Interface - VGA: 1 | Watchdog Timer - Interval: Programmable 1 ~ 255 sec/min | Watchdog Timer - Output: System Reset

• Model: ASMB-587G4-00A1
